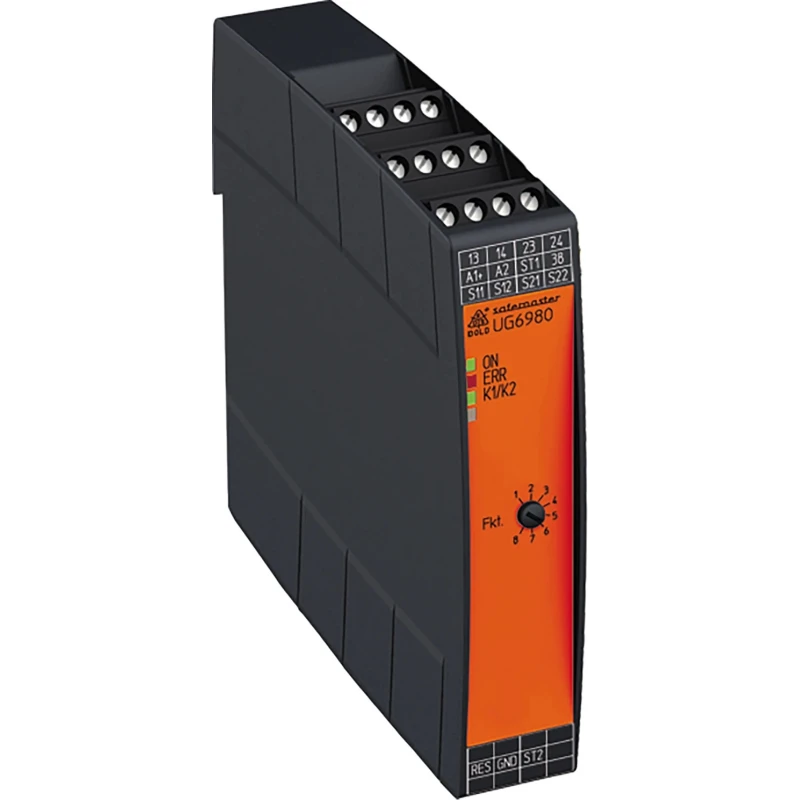

Dold UG6980 Series Safety Controller Safety Relay with LED Indicator, 24V DC, 4 I/Os, PLe CAT 4 SIL 3 UG6980

Free Delivery in India | Lowest Global Shipping Charges

Dold UG6980 Series Safety Controller Safety Relay with LED Indicator, 24V DC, 4 I/Os, PLe CAT 4 SIL 3 UG6980

Name: Dold UG6980 Series Safety Controller Safety Relay with LED Indicator, 24V DC, 4 I/Os, PLe CAT 4 SIL 3 UG6980
Brand: Dold
SKU: 155331
Price: 531.11 USD
Availability: InStock



Category Safety Controller Brand Dold Condition New

Specifications

Country of Origin	Germany
Display Type	LED Indicator
Output	max. 4 NO instantaneous semiconductor monitoring output
Brand	Dold
Length	22.5mm
Model	UG6980
Depth	110mm
IP Rating	IP40, IP20
Width	120.3mm
Mount Type	DIN Rail
Series	UG6980
Safety Category	PLe, CAT 4, SIL 3, 4
Terminal type	Screw
Supply Voltage	24V dc
Standards/Approvals	UL, CE
Contact Voltage	24V dc
Contact Current	15mA
Number of I/Os	4

Key Features

Equipped with 4 input/output channels ensuring reliable safety monitoring.
Features max. 4 normally open instantaneous semiconductor monitoring outputs.
Compact design with width of 22.5 mm suitable for DIN rail mounting.
Includes LED indicators for operation, delay contacts, and fault detection.
Safety functions adjustable for E-Stop, safety gates, two-hand control, and light curtains.
Option for pluggable terminal blocks with screw or cage clamp terminals for easy device exchange.
Manufactured in Germany ensuring high quality and compliance.

Product Description

Dold UG6980 Safety Controller Safety Relay UG6980 operates at 24V DC and provides essential safety automation control for industrial and electrical systems.

This safety relay supports 4 input/output channels with forcibly guided output contacts designed for maximum reliability. The device includes LED indicators for operation, delay contacts, and failure diagnostics, enhancing operational clarity.

Its compact 22.5 mm width DIN rail mounting design makes it ideal for space-saving control panel installations. The relay complies with stringent safety standards such as PLe, CAT 4, and SIL 3, ensuring robust protection in high-risk applications.

The UG6980 series supports multiple safety functions including emergency stop, safety gates, two-hand control, safety mats, safety edges, and light curtains, with adjustable features for exclusive or contacts and manual or automatic restart options.

Output capacity includes max. 4 normally open instantaneous semiconductor monitoring outputs. Optional pluggable terminal blocks with screw or cage clamp terminals facilitate easy maintenance and device replacements.

Constructed with quality materials and manufactured in Germany, this controller meets UL and CE standards and holds IP40 and IP20 ratings for protection against ingress. Reliable line fault detection on the On-button with manual or automatic restart.

Multiple safety function configurations adaptable to various industrial automation needs. Clear visual status via LED indicators for fault and operation monitoring. Pluggable and versatile terminal options support user-friendly installation and maintenance.

Compact design optimized for DIN rail with a depth of 110 mm and width of 120.3 mm.

This Dold Safety Controller relay is suitable for industrial automation, machinery safety, manufacturing control, and other critical safety applications requiring certified and reliable safety automation controls. Explore more safety automation controllers and related products on EnvMart.
