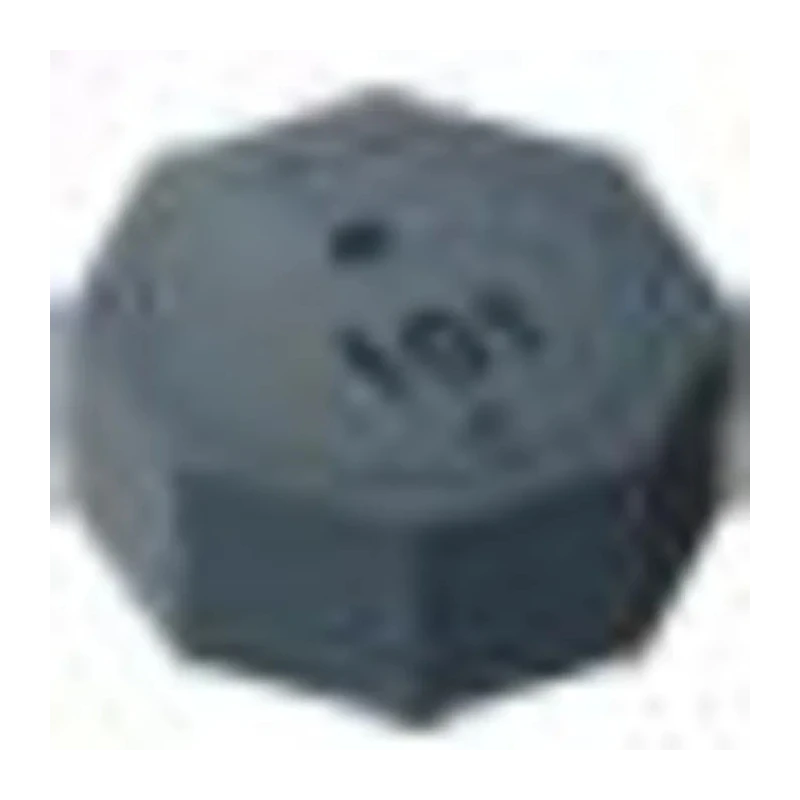

Bourns Shielded Wirewound Surface Mount Inductor 22 μH ±30%, 2.2 A Idc, Ferrite DR & RI Core, 8x8x4.3 mm SRU8043
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 4.3mm |
| Length | 8mm |
| Model | SRU8043 |
| Depth | 8mm |
| Packaging | Tape & Reel |
| Series | SRU8043 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR & RI |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 8043 |
| Maximum DC Current | 2.2A |
| Maximum DC Resistance | 72.5mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 12MHz |
| Minimum Quality Factor | 24 |
| Inductor Construction | Shielded |
Key Features
- Compact dimensions of 8 mm length, 8 mm depth, and 4.3 mm height ensure easy PCB integration.
- Constructed with Ferrite DR & RI core for enhanced magnetic performance.
- Shielded inductor construction reduces electromagnetic interference effectively.
- Maximum DC resistance is 72.5 mΩ to minimize power losses.
- Designed for operating temperatures from -40°C up to 125°C for reliability in various environments.
- Maximum self-resonant frequency is 12 MHz supporting high-frequency applications.
- Termination style is solder, compatible with standard surface mounting techniques.
- Packaged on tape and reel for automated assembly processes.
Product Description
Bourns SRU8043 shielded wirewound surface mount inductor features a 22 μH inductance with ±30% tolerance, suitable for handling a maximum DC current of 2.2 A. The device utilizes a Ferrite DR & RI core with shielded construction to minimize electromagnetic interference and optimize performance in electronic circuits.
This inductor measures 8 mm in length and depth, with a height of 4.3 mm, making it compact and ideal for space-constrained PCB designs. It is designed with a maximum DC resistance of 72.5 mΩ to ensure efficient operation and reduced power dissipation.
The component operates reliably within a temperature range of -40°C to 125°C and supports a maximum self-resonant frequency of 12 MHz, enabling its use in high-frequency electronic applications. It is terminated with solder style connections and supplied on tape and reel packaging, facilitating automated assembly in manufacturing environments.
Typical applications include use in input/output stages of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs. The product conforms to RoHS standards, supporting environmentally responsible manufacturing.
Compact 8x8x4.3 mm shielded design for effective EMI suppression. High-quality Ferrite DR & RI core enhances magnetic properties. Wide operating temperature range from -40°C to 125°C enhances reliability. Maximum self-resonant frequency of 12 MHz suitable for high-frequency circuits.
Solder termination and tape & reel packaging for automated PCB assembly. Meets RoHS compliance for environmental safety.
This Bourns SRU8043 shielded wirewound Surface Mount Inductor is ideal for demanding industrial, electronic, and commercial applications requiring compact and reliable inductive components.
Explore more quality inductors in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 22 μH with a tolerance of ±30%.
The maximum DC current rating for this inductor is 2.2 A.
It has compact dimensions of 8 mm in length, 8 mm in depth, and 4.3 mm in height.
The maximum operating temperature for this inductor is 125°C.
It is constructed with a Ferrite DR & RI core, enhancing its magnetic performance.
This unit is packaged on tape and reel, facilitating automated assembly processes.
The maximum self-resonant frequency is 12 MHz, making it suitable for high-frequency applications.
The termination style is solder, which is compatible with standard surface mounting techniques.
The maximum DC resistance is 72.5 mΩ, which helps minimize power losses.
It operates reliably within a temperature range of -40°C to 125°C.
Yes, this inductor conforms to RoHS standards, supporting environmentally responsible manufacturing.
Typical applications include use in the input/output stages of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs.
