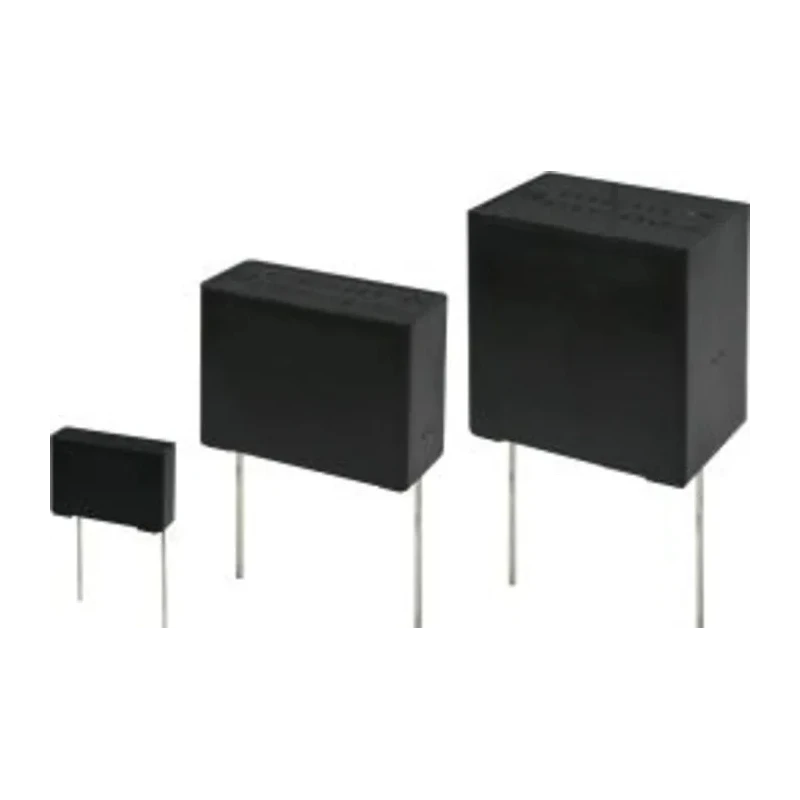

Panasonic ECQUAAF334TA Film Capacitor X2, ±10 %, 330 nF, 275V AC, Through Hole Mount ECQUAAF334TA

Name: Panasonic ECQUAAF334TA Film Capacitor X2, ±10 %, 330 nF, 275V AC, Through Hole Mount ECQUAAF334TA
Brand: Panasonic
SKU: 154828



Category Film Capacitors Brand Panasonic Condition New

Specifications

Country of Origin	China
Brand	Panasonic
Height	16mm
Length	17.5mm
Model	ECQUAAF334TA
Packaging	Bag
Width	9mm
Mount Type	Through Hole
Series	ECQUA
Maximum Operating Temperature	110°C
Tolerance	±10 %
Capacitance	330nF
Minimum Operating Temperature	-40°C
Terminal type	Solder
Dissipation Factor	0.1%
Lead Length	4mm
Rated AC Voltage	275V ac
Lead Pitch	15mm
Lead Diameter	0.6mm
Automotive Standard	AEC-Q200
Suppression Class	X2
High humidity resistance (THB test	85 °C, 85 %, 240 V.AC, 1000 h )

Key Features

Capacitance of 330 nF provides reliable filtering and interference suppression.
Rated AC voltage of 275V suitable for automotive and industrial environments.
Tolerance of ±10% ensures consistent electrical performance.
Mount type is through hole, enabling secure PCB mounting.
Complies with automotive standard AEC-Q200 for high reliability.
Features flame-retardant plastic case and non-combustible resin for safety.
High humidity and thermal shock resistance for durability in harsh conditions.
Lead pitch of 15mm and lead length of 4mm with solder terminals for easy assembly.

Product Description

Panasonic ECQUAAF334TA film capacitor is a high-quality X2 class film capacitor designed for interference suppression in automotive applications. With a capacitance of 330 nF and a rated AC voltage of 275V, it offers reliable performance and stability in demanding electrical environments.

The capacitor features a through hole mount with solder terminals and a lead pitch of 15mm, allowing for robust mounting on printed circuit boards. It has a flame-retardant plastic casing made from non-combustible resin, enhancing safety and durability.

This capacitor complies with the automotive standard AEC-Q200, which guarantees its suitability for automotive system integration, offering high thermal shock resistance (-40°C to 85°C for 1000 cycles) and excellent humidity resistance (tested at 85°C, 85% relative humidity, 240 V AC over 1000 hours).

Key dimensions include a length of 17.5mm, a width of 9mm, and a height of 16mm, with lead length of 4mm and 0.6mm lead diameter. The capacitor exhibits a low dissipation factor of 0.1%, indicating efficient energy performance.

Capacitance of 330 nF provides reliable filtering and interference suppression. Rated AC voltage of 275V suitable for automotive and industrial environments. Tolerance of ±10% ensures consistent electrical performance. Mount type is through hole, enabling secure PCB mounting.

Complies with automotive standard AEC-Q200 for high reliability. Features flame-retardant plastic case and non-combustible resin for safety. High humidity and thermal shock resistance for durability in harsh conditions. Dimensions: 17.5mm length, 9mm width, and 16mm height for compact installation.

Lead pitch of 15mm and lead length of 4mm with solder terminals for easy assembly. Operating temperature range from -40°C to 110°C ensures versatility. Certified to standards CSA E60384-14, EN 60384-14, and UL 60384-14.

This Panasonic ECQUAAF334TA film capacitor is ideal for industrial, automotive, and electronic manufacturing applications where electrical noise suppression and durability are critical. Its compliance with stringent safety and quality certifications provides confidence for use in demanding environments.
