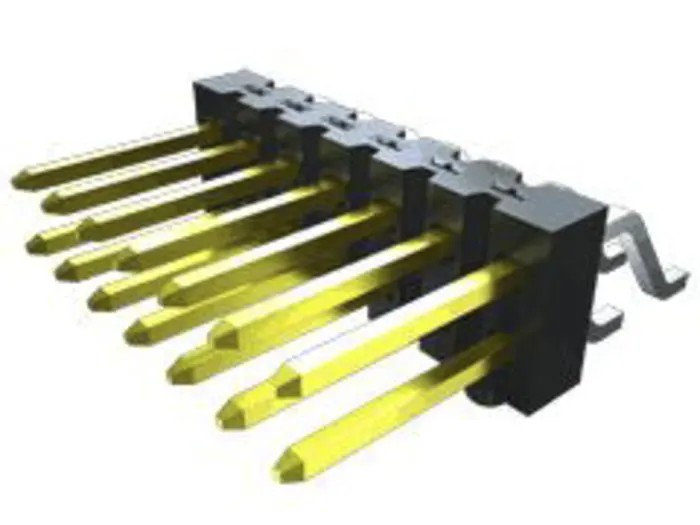

Samtec TSM Series Straight Surface Pin Header 5 Contacts 2.54 mm Pitch 1 Row Unshrouded TSM-105-01-T-SV
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4A |
| Model | TSM-105-01-T-SV |
| Mount Type | Surface |
| Special Features | Designed specifically for surface mount applications with many options to facilitate processing |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination | Surface mount, mixed technology |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Mating Pin Length | 5.84mm |
| Contact System | .025" (0.635 mm) square post |
Key Features
- Features 5 male contacts arranged in a single row.
- Designed for surface mount technology with unshrouded orientation.
- Constructed with a liquid crystal polymer housing for durability.
- Phosphor bronze contacts plated with tin ensure excellent conductivity.
- Operates within temperature ranges from -55°C to 105°C.
- Rated for voltage of 475 V and current capacity of 4 A.
- Specifically engineered for easy solder termination and mixed technology processing.
- Offers a mating pin length of 5.84 mm for secure connections.
Product Description
Samtec TSM-105-01-T-SV is a professional-grade straight surface pin header designed with precision for electronic printed circuit board (PCB) applications. This board-to-board connector features 5 contacts aligned in a single row with a standard 2.54 mm pitch, making it ideal for compact and efficient connectivity in electronic devices.
Its housing is made of liquid crystal polymer, providing excellent mechanical stability and heat resistance suitable for demanding industrial environments. The phosphor bronze contact material plated with tin ensures reliable electrical performance with corrosion resistance. The component is unshrouded and designed for vertical orientation, suited for surface-mount technology (SMT).
Operating temperature ranges from -55°C to 105°C and it supports a voltage rating of 475 volts as well as a continuous current of up to 4 amperes, making it useful in various electronic manufacturing, laboratory instrumentation, and industrial control systems.
The pin header termination type is optimized for soldering processes, supporting mixed technology assembly lines. The mating pin length of 5.84 mm facilitates secure mechanical and electrical connections with compatible Samtec sockets. This product is engineered to support high reliability in PCBs used in industrial, laboratory, automation, and telecommunications equipment.
Features 5 male contacts in a single row configuration. Utilizes a robust liquid crystal polymer housing material. Contact material is phosphor bronze with tin plating ensuring conductivity. Wide operating temperature range from -55°C to 105°C.
Voltage rating at 475 V and current capacity of 4 A suitable for industrial circuits. Designed for surface mounting with unshrouded vertical orientation. Compatible with board-to-board connector systems. Termination type optimized for solder and mixed technology processes.
Manufactured in the United States to industry quality standards. Ideal for use in industrial, laboratory, manufacturing, and electronic equipment assembly. Explore more PCB connectors and headers in the Electronics & Electricals category at EnvMart for your project and business needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 475 V, making it suitable for various industrial applications.
The current capacity of the TSM-105-01-T-SV is 4 A, allowing it to handle significant electrical loads in circuit applications.
It features a housing made of liquid crystal polymer and contacts made from phosphor bronze plated with tin for excellent conductivity.
The pitch size of the contacts in this pin header is 2.54 mm, which is a standard size for many electronic applications.
The operating temperature range for the TSM-105-01-T-SV is from -55°C to 105°C, suitable for a variety of environments.
This pin header features 5 male contacts arranged in a single row, designed for efficient connectivity.
It utilizes a solder termination type, optimized for surface mount and mixed technology processes.
The TSM-105-01-T-SV is unshrouded, allowing for easier access during assembly and connection.
The mating pin length for this model is 5.84 mm, facilitating secure connections with compatible sockets.
It is designed for a board-to-board connector system, making it suitable for various PCB applications.
This model is manufactured in the United States, adhering to industry quality standards.
It is specifically designed for surface mount applications and includes options to facilitate processing in mixed technology environments.
