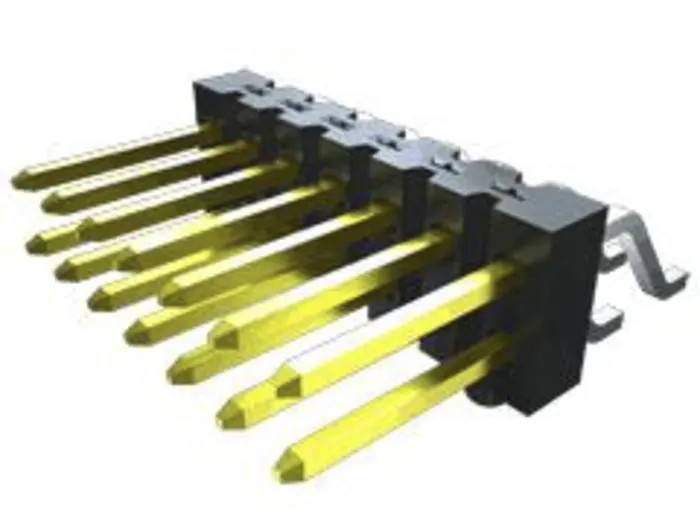

Samtec TSM Series Straight Surface Mount Pin Header 12 Contacts 2.54 mm Pitch 2 Row Unshrouded TSM-106-01-T-DH
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4A |
| Model | TSM-106-01-T-DH |
| Mount Type | Surface |
| Special Features | Designed specifically for surface mount applications with many options to facilitate processing |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination | Surface mount, mixed technology |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 7.87mm |
| Mating Pin Length | 5.84mm |
| Contact System | .025" (0.635 mm) square post |
Key Features
- Features a straight orientation suitable for board-to-board connectivity.
- Constructed with a Liquid Crystal Polymer housing for durability.
- Contacts are made of phosphor bronze with tin plating for reliable conductivity.
- Rated for 4A current and a maximum voltage of 475V.
- Operating temperature range from -55°C to 105°C for robust performance.
- Supported by a 7.87 mm tail pin length and 5.84 mm mating pin length.
- Designed specifically for surface mount technology with mixed termination processing.
- Unshrouded 2-row pin header offers versatility in board configurations.
Product Description
Samtec TSM-106-01-T-DH is a high-quality pin header from the TSM series designed for surface mount applications. It features a straight orientation with 12 male contacts arranged in 2 rows and a pitch of 2.54 mm, making it ideal for board-to-board connectors in electronic systems.
The housing is made of Liquid Crystal Polymer, ensuring mechanical strength and thermal stability under demanding conditions. The contacts are phosphor bronze with tin plating, offering excellent conductivity and corrosion resistance. Rated for currents up to 4A and voltages reaching 475V, this pin header supports reliable electrical performance in various industrial, electronic, and manufacturing environments.
It operates effectively within a temperature range of -55°C to 105°C, suited for challenging conditions. The tail pin length of 7.87 mm and mating pin length of 5.84 mm facilitate secure soldering and connection. This product is designed specifically for surface mount technology (SMT) and supports mixed termination processing to ease assembly procedures.
Unshrouded and configured with 2 rows, it adapts to multiple PCB layouts and applications including communication devices, laboratory equipment, industrial machinery, and other electronic assemblies.
Straight orientation suited for board-to-board connections. Liquid Crystal Polymer housing provides durability and heat resistance. Phosphor bronze contact material plated with tin for reliable conductivity. 4A current rating and 475V voltage rating for electrical performance.
Wide operating temperature range from -55°C to 105°C. Tail pin length of 7.87 mm and mating pin length of 5.84 mm. Surface mount termination supports modern assembly processes. Unshrouded 2-row design allows flexible PCB configuration.
Made in the United States ensuring quality and standards compliance.
This Samtec TSM series pin header is suitable for industrial, laboratory, electronics manufacturing, and telecommunications applications. Browse more PCB Headers and connectors on EnvMart for professional-grade electronic components.
