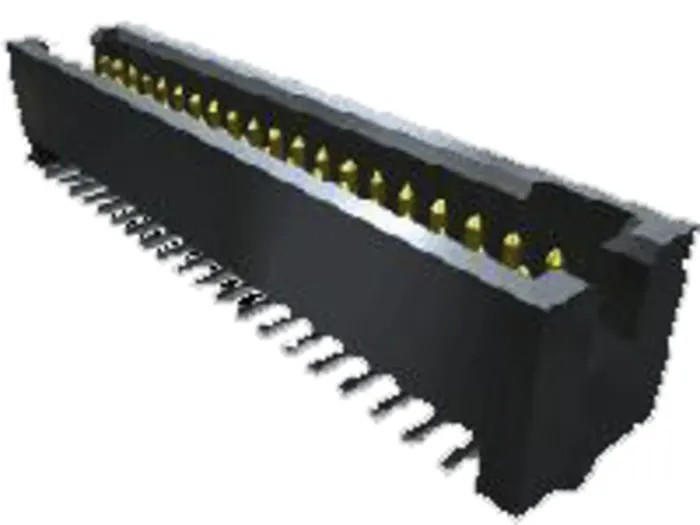

Samtec TFM Series Straight Through Hole PCB Header 20 Contacts 1.27 mm Pitch 2 Row Shrouded TFM-110-01-L-D-RE1-WT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Model | TFM-110-01-L-D-RE1-WT |
| Mount Type | Through Hole |
| Special Features | Screw down, weld tab and solder nail options available for most rugged requirements |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TFM |
| Termination | Through-hole, surface mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Contact System | .018" (0.46 mm) diameter post |
Key Features
- Features a rugged Tiger Eye™ multi-finger BeCu contact system for high reliability.
- Supports a current rating of 3.2A and voltage rating of 250V.
- Constructed with liquid crystal polymer housing for durability and temperature resistance.
- Gold-plated phosphor bronze contacts ensure low resistance and corrosion protection.
- Shrouded connectors provide blind mating capabilities for robust assembly.
- Suitable for through-hole mounting with solder termination.
- Capable of operating in a temperature range from -55°C to 125°C.
- Ideal for industrial electronic applications requiring secure and durable PCB connections.
Product Description
Samtec TFM-110-01-L-D-RE1-WT is a high-quality PCB header from the TFM series designed for industrial and electronic component applications. Featuring 20 contacts arranged in 2 rows with a 1.27 mm pitch, this shrouded straight through hole connector provides reliable wire-to-board connectivity.
The header utilizes a Tiger Eye™ multi-finger BeCu contact system known for exceptional durability and cycle life, suitable for demanding environments. Its liquid crystal polymer housing offers excellent mechanical strength and temperature resistance, ensuring stable performance from -55°C to 125°C.
Phosphor bronze contacts with gold plating enhance conductivity and protect against corrosion, maintaining signal integrity. The shrouded design facilitates blind mating, improving ease of assembly and protection during mating cycles.
The connector supports a current rating of 3.2A and a voltage rating of 250V, making it suitable for various industrial electronic circuits. It features through-hole solder termination, acceptable for surface mount and through-hole PCB designs, with options like screw down, weld tab, and solder nail for rugged applications.
Applications include industrial automation, instrumentation, telecommunications, and other electronic assemblies requiring dependable, high-quality PCB connections. This product is a New condition component, made in India, aligning with high manufacturing standards.
Features a rugged Tiger Eye™ multi-finger BeCu contact system for high reliability. Supports a current rating of 3.2A and voltage rating of 250V. Constructed with liquid crystal polymer housing for durability and temperature resistance.
Gold-plated phosphor bronze contacts ensure low resistance and corrosion protection. Shrouded connectors provide blind mating capabilities for robust assembly. Suitable for through-hole mounting with solder termination. Capable of operating in a temperature range from -55°C to 125°C.
Ideal for industrial electronic applications requiring secure and durable PCB connections. Explore more high-performance PCB connectors and components within the Electronics Components category at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3.2A and a voltage rating of 250V.
It is capable of operating in a temperature range from -55°C to 125°C.
The housing is constructed from liquid crystal polymer, while the contacts are made of phosphor bronze with gold plating.
This model features 20 contacts arranged in 2 rows with a 1.27 mm pitch.
It features through-hole solder termination, and is also acceptable for surface mount applications.
It includes options for screw down, weld tab, and solder nail for rugged applications, along with a shrouded design for blind mating capabilities.
The connector system is designed for wire-to-board applications.
This model has a straight orientation.
The contact system features a .018" (0.46 mm) diameter post.
This product is manufactured in India.
It is ideal for industrial automation, instrumentation, telecommunications, and other electronic assemblies requiring secure PCB connections.
Gold plating enhances conductivity and provides corrosion protection, maintaining signal integrity.
