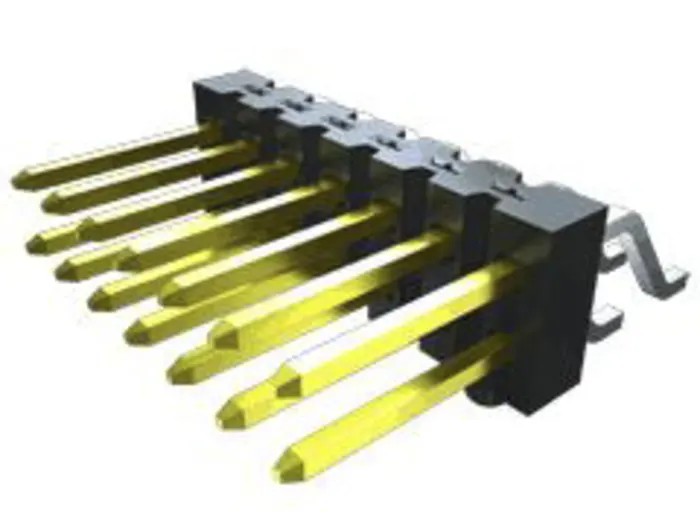

Samtec TSM Series Straight Surface Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSM-110-01-T-DV-P
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4A |
| Model | TSM-110-01-T-DV-P |
| Mount Type | Surface |
| Special Features | Designed specifically for surface mount applications with many options to facilitate processing |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination | Surface mount, mixed technology |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Mating Pin Length | 5.84mm |
| Contact System | .025" (0.635 mm) square post |
Key Features
- The connector supports a current rating of 4A for reliable power conduction.
- It features a board-to-board connector system suitable for surface mount applications.
- Constructed with Liquid Crystal Polymer housing for durability and heat resistance.
- Male phosphor bronze contacts plated with tin ensure excellent conductivity and corrosion resistance.
- Designed to operate within a wide temperature range from -55°C to 105°C.
- Termination is via solder, compatible with mixed technology assembly processes.
- The connector pitch is a standard 2.54 mm with a mating pin length of 5.84 mm.
- Unshrouded design facilitates straightforward mating with compatible sockets.
Product Description
Samtec TSM-110-01-T-DV-P Straight Surface Pin Header is a high-quality electronic component designed for reliable board-to-board connections. This 20-contact, 2-row pin header features a 2.54 mm pitch and an unshrouded design, making it ideal for various industrial and electronic applications including manufacturing, instrumentation, and general PCB assembly.
The housing is made from robust Liquid Crystal Polymer, providing excellent resistance against mechanical and thermal stresses. The phosphor bronze contacts are plated with tin for enhanced conductivity and corrosion resistance. Its surface mount termination type allows compatibility with mixed technology processes, enhancing its versatility in modern PCB production environments.
Operating temperature range spans from -55°C to 105°C, supporting use in demanding conditions. The connector supports a current rating of 4A and voltage rating of 475V, making it suitable for power and signal applications where safety and reliability are critical.
The connector system is board-to-board with a standard 2.54 mm pitch and housing designed for straight orientation. The unshrouded design enables straightforward mating with sockets and other connectors, ensuring ease of assembly and maintenance. The mating pin length of 5.84 mm ensures secure connections.
Manufactured in the United States, this pin header complies with industry standards and is well-suited for use in electronics manufacturing, telecommunications, aerospace, and industrial control systems.
The connector supports a current rating of 4A for power reliability. Liquid Crystal Polymer housing ensures durability and heat resistance. Phosphor bronze contacts with tin plating provide superior conductivity. Unshrouded design facilitates easy mating.
Surface mount termination supports mixed technology assembly. Wide operating temperature range from -55°C to 105°C. Voltage rating of 475V for safe operation. Standard 2.54 mm pitch with 20 contacts in 2 rows. Mating pin length of 5.84 mm for secure connections.
Made in the United States ensuring high quality. Explore more electronic components and PCB connectors from Samtec at EnvMart for your next project.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 4A, making it suitable for reliable power conduction in various applications.
The voltage rating for this connector is 475V, ensuring safe operation in power and signal applications.
The connector features a standard pitch of 2.54 mm, which is commonly used in various electronic applications.
It is constructed with a Liquid Crystal Polymer housing and phosphor bronze contacts plated with tin for enhanced conductivity and corrosion resistance.
The operating temperature range spans from -55°C to 105°C, allowing it to function in demanding environments.
This pin header has a total of 20 contacts arranged in 2 rows, facilitating multiple connections.
The connector uses surface mount termination, compatible with mixed technology assembly processes.
The mating pin length is 5.84 mm, ensuring secure connections with compatible sockets.
This model features an unshrouded design, which facilitates straightforward mating with compatible sockets.
It is designed as a board-to-board connector system, suitable for various electronic applications.
This pin header is manufactured in the United States, ensuring adherence to industry standards.
It is designed specifically for surface mount applications and includes options to facilitate processing in modern PCB production environments.
