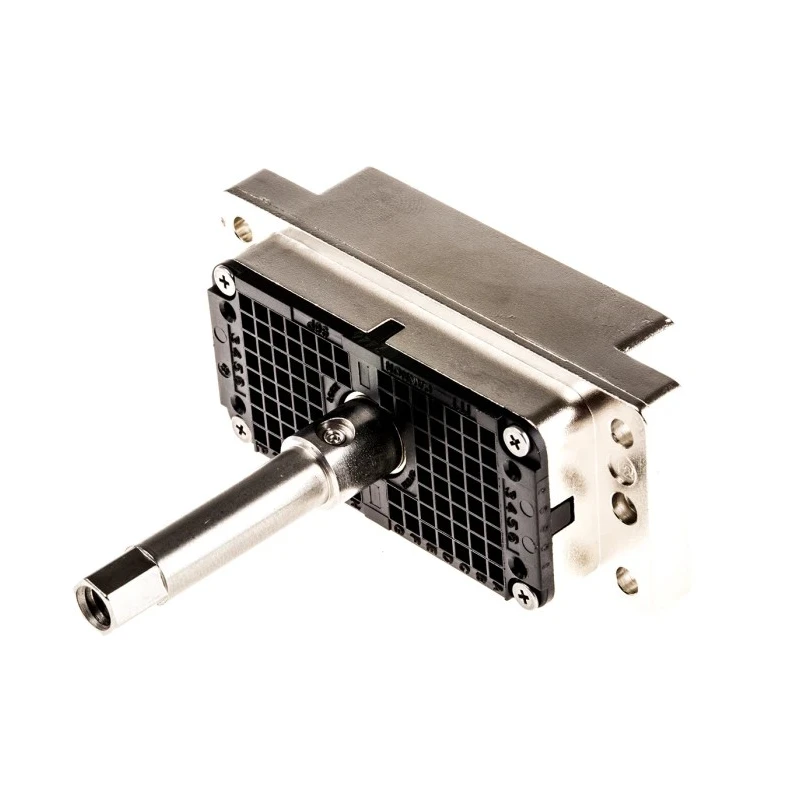

ITT Cannon DLM 2.54 mm Pitch ZIF Plug Body Straight Male 96 Way Connector 127050-0212

ITT Cannon 127050-0212 DLM series ZIF Plug Body is a high-quality straight male backplane connector engineered for demanding industrial and electronic applications. It has a pitch of 2.54 mm and features 96 contacts arranged for high-density connectivity. This panel mount connector is designed with an aluminium alloy housing to provide robust mechanical protection and electromagnetic interference (EMI) and radio frequency interference (RFI) shielding.

The contacts are manufactured from beryllium copper alloy and plated with gold to ensure superior electrical conductivity and resistance to corrosion over time. The crimp termination type supports secure attachment of wires, enabling reliable connections.

With an electrical rating of 5 A and 1.2 kV AC voltage, this connector meets the operational requirements in harsh industrial environments. Its operating temperature range from -55 °C to 105 °C makes it suitable for diverse climates. The cam actuated zero insertion force (ZIF) coupling mechanism guarantees uniform mating pressure, minimizing wear and prolonging connector lifespan.

This connector is extensively used in instrumentation systems within medical devices, broadcast equipment, avionics, and computing industries, providing consistent and reliable performance. The panel mount configuration allows easy installation in rack and backplane applications.

The ITT Cannon DLM product line is recognized for its durable construction and compliance with industry standards. This model, 127050-0212, offers a 96-way contact array supporting high-current and voltage applications while maintaining signal integrity.

The connector type is Zero Insertion Force (ZIF) ensuring easy connection and disconnection. It features 96 contacts allowing high-density electrical connections. Supports current rating of 5A and voltage rating of 1.2kV AC suitable for demanding applications.

Constructed with aluminium alloy housing for durability and EMI/RFI shielding. Operating temperature ranges from -55°C to 105°C for varied environments. Gold-plated contacts provide excellent conductivity and corrosion resistance.

Termination type is crimp for secure and reliable wire attachment. Cam actuated zero insertion force coupling mechanism ensures uniform mating pressure. Panel mount design allows easy integration into instrumentation and electronic equipment.

Commonly used in medical, broadcast, avionics, and computer instrumentation fields. Discover more premium Backplane Connectors and related products at EnvMart for your industrial, laboratory, and commercial electronics needs.
