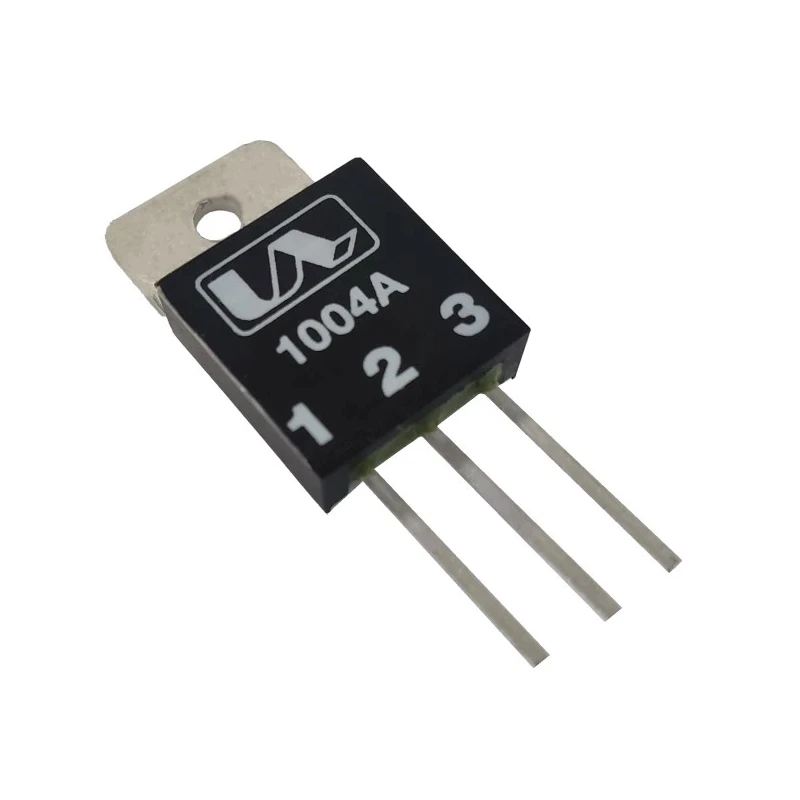

United Automation Linear Voltage Regulator 10 A, 230V 3-Pin CSR1004A

United Automation CSR1004A is a linear voltage regulator designed for controlling single-phase mains-driven loads with an output current capacity of 10 A at 230V. This 3-pin adjustable power regulator is ideally suited for applications such as resistive heating elements including quartz lamps, ovens, and dryers, as well as certain inductive loads like transformers, fans, and motors.

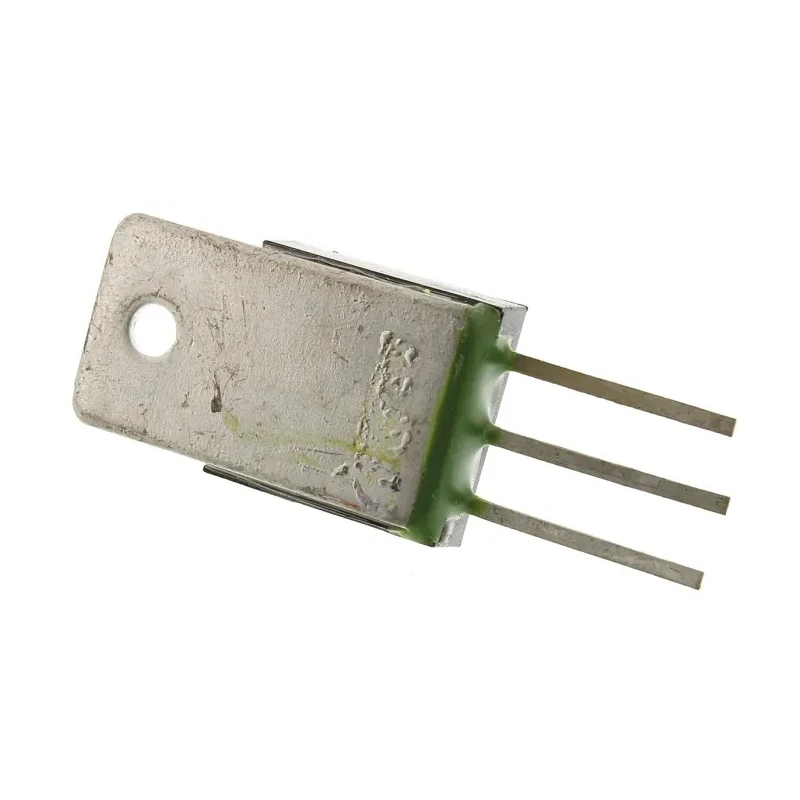

The device is mounted through hole and features compact dimensions of 17.5mm length, 29.3mm height, and 7.6mm width, enabling efficient PCB integration. It operates reliably within a temperature range of 0°C to 70°C ensuring stable performance under varied conditions. The transistor-style housing includes an isolated heat sink tab that supports effective heat dissipation during operation.

Power control is achieved using an external 220k or 250k linear potentiometer (not supplied) allowing adjustment of power input from 0% to 98%. This makes the CSR1004A regulator suitable for precision heating and motor control industrial applications. It is a solid-state phase-controlled IC providing reliable and durable voltage regulation without moving parts.

Applications include industrial resistive and inductive load control like ovens, moulders, quartz lamps, dryers, motors, and transformers in automation, manufacturing, HVAC and process control industries. The product is manufactured in the United Kingdom ensuring high quality and performance standards.

Linear voltage regulator design ensures smooth power control. Outputs adjustable voltage for versatile application control. Supports output current up to 10 A for medium power loads. Through hole mount type offers easy PCB integration.

Compact dimensions of 17.5mm length, 29.3mm height, and 7.6mm width. Operates within 0 to 70°C temperature range for reliable performance. Compatible with resistive heating elements like ovens and quartz lamps. Suitable for inductive loads including transformers, fans, and motors.

Requires external linear potentiometer (220k or 250k, not included) for power regulation. Comes in transistor-style housing with isolated heat sink tab for thermal management. Explore more high-quality Voltage Regulators and power management components on EnvMart for advanced industrial and electronics applications.
