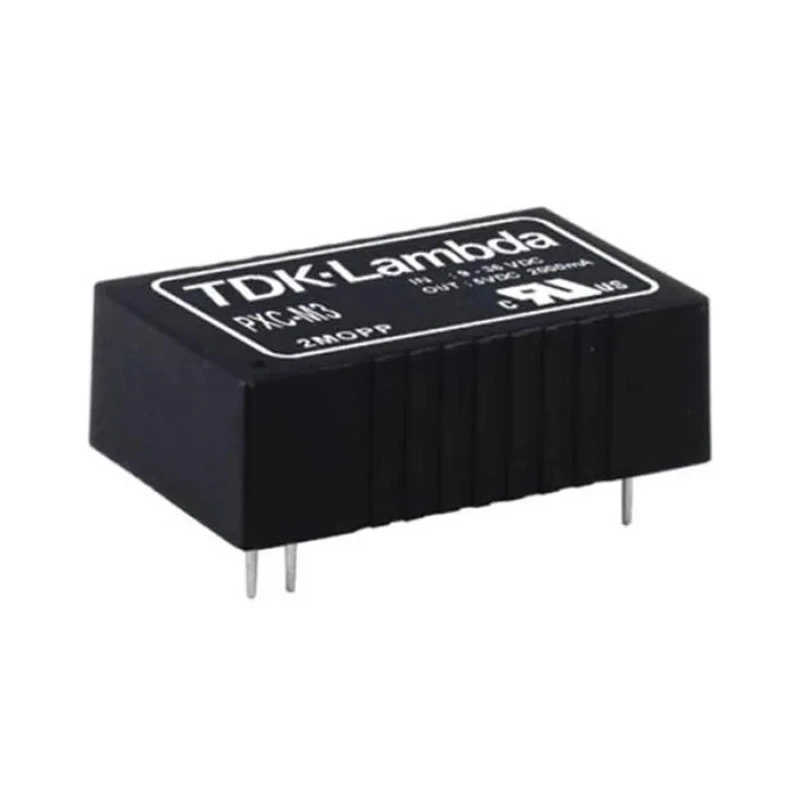

TDK-Lambda DC/DC Converter 15V DC Output 400mA 75V DC Max Input 6W PCB Mount DIP Package 105°C Max Operating PXC-M06-48WS15

Name: TDK-Lambda DC/DC Converter 15V DC Output 400mA 75V DC Max Input 6W PCB Mount DIP Package 105°C Max Operating PXC-M06-48WS15
Brand: TDK-Lambda
SKU: 164933
Price: 1037.85 USD
Availability: InStock



Category DC/DC Converter Brand TDK-Lambda Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters TDK-Lambda PXC-M06 DC/DC Converter, 15V dc/ 400 mA
Brand	TDK-Lambda
Efficiency	0.885%
Length	31.8mm
Model	PXC-M06-48WS15
Depth	10.2mm
Gross Weight	14g
Width	20.3mm
Mount Type	PCB
Series	PXC-M06
Maximum Operating Temperature	105°C
Package Type	DIP
Minimum Operating Temperature	-40°C
MTBF	4718000h
Number of outputs	1
Ripple and Noise	40mV
Maximum Output Power	6W
Maximum Input Voltage	75V dc
Minimum Input Voltage	18V dc
Number of Pins	7
Output Voltage 1	15V dc
Output Current 1	400mA
Isolation Voltage	5kV
Input Ratio	4:1
Input Ratio4	1

Key Features

This converter supports 6W maximum output power with a DIP package suitable for PCB mounting.
It operates efficiently with a 0.885% efficiency rating and provides isolation voltage up to 5kV.
The device is designed to work within a wide temperature range from -40°C to 105°C.
It features low ripple and noise output of just 40mV to ensure clean power delivery.
The compact dimensions and 7-pin DIP package provide easy integration into electronic circuits.
Has a high MTBF of 4,718,000 hours indicating long operational life and reliability.
Manufactured in Taiwan under strict quality controls to ensure device safety and durability.

Product Description

TDK-Lambda PXC-M06-48WS15 is a compact and reliable DC/DC converter designed for precision power supply in medical and communication electronics. Supporting a single output of 15V DC delivering a 400mA current, this converter accepts a wide input voltage range from 18V to 75V DC, making it versatile for varying supply conditions.

Its robust DIP-24 PCB mounting package allows easy installation on circuit boards, while the device ensures electrical isolation of up to 5kV between input and output for safety and noise reduction. With a maximum output power rating of 6W and an efficiency of 0.885%, it ensures effective energy conversion with minimal losses.

The converter performs reliably across a broad temperature spectrum from -40°C to +105°C, suitable for demanding industrial and medical environments. Additionally, the low ripple and noise level of 40mV guarantees stable and clean output power essential for sensitive electronic applications.

Measuring only 31.8mm in length, 20.3mm in width, and 10.2mm depth and weighing 14 grams, this device is ideal for compact and space-critical electronic designs. Its 7-pin DIP package simplifies mounting and integration into existing hardware systems.

This DC/DC converter supports single output with 4:1 input voltage ratio. Designed for use in medical, communication, and industrial electronic applications requiring safe, isolated, and stable low power conversion. Its high MTBF of 4,718,000 hours reflects its durability and long service life.

Manufactured in Taiwan, the product meets stringent quality and safety standards without specific certifications.

This product is a dependable choice for engineers seeking a compact, low-power DC/DC converter with high isolation and wide operating temperature range. For more detailed technical specification and design information, refer to the official datasheet provided by TDK-Lambda.
