TDK 100 nF 250V dc ±10% X7R Multilayer Ceramic Surface Mount Capacitor C3216X7R2E104K160AE

TDK C3216X7R2E104K160AE is a multilayer ceramic capacitor (MLCC) designed for surface mount technology with a capacitance of 100 nF and a rated voltage of 250V dc. Featuring an X7R dielectric, this capacitor operates reliably across a wide temperature range from -55°C minimum to 125°C maximum, maintaining capacitance stability and performance in demanding industrial and electronic applications.

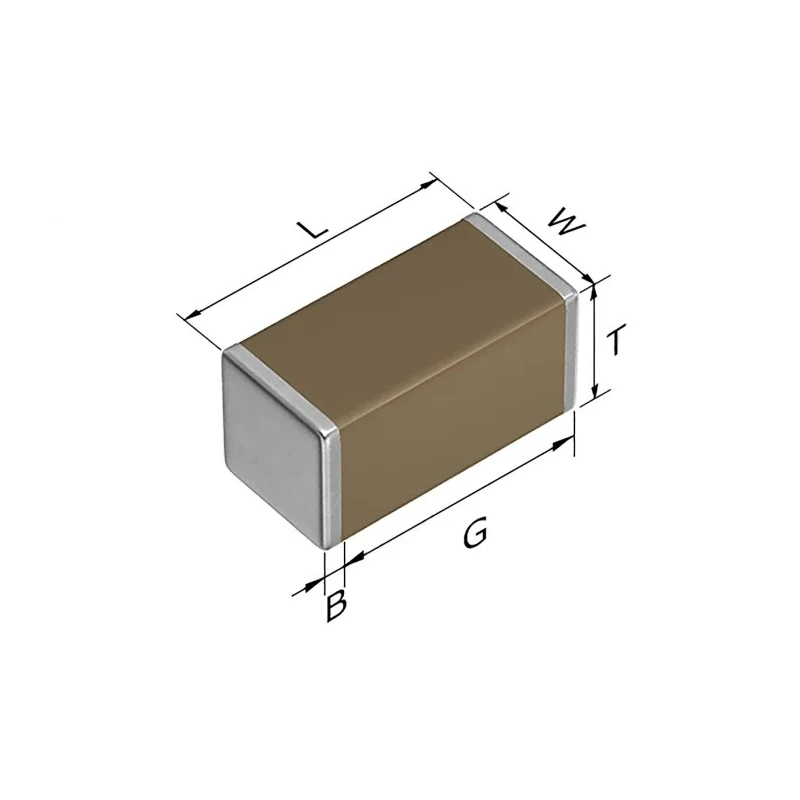

This 1206 package size component measures 3.2mm in length, 1.6mm in width, and 1.6mm in height, making it suitable for compact printed circuit boards where space efficiency is critical. It features a surface mount termination with soft termination technology that incorporates conductive resin layers enhancing mechanical endurance to absorb thermal and mechanical stress, reducing the risk of failure due to board flex or solder cracking.

The capacitor is packaged on tape and reel, facilitating high-speed automated pick-and-place assembly, ideal for volume manufacturing environments. Its ±10% tolerance classification and Class II suppression class make it apt for general-purpose electronic circuits requiring stable capacitance values with minimal drift over temperature and voltage variations.

Typical applications include fail-safe design in battery lines, prevention of ceramic body cracks due to board bending, and solder joint reliability against thermal shock. This makes it well suited for industrial electronics, power supplies, automotive electronics (non-automotive standard compliant), telecommunications equipment, and consumer electronics.

Manufactured under high quality processes in Japan by TDK, it guarantees robust performance and long-term reliability. Capacitance of 100 nF ensures reliable filtering and decoupling performance. Rated voltage of 250V dc suitable for low to medium voltage circuits.

X7R dielectric provides stable capacitance over temperature range from -55°C to 125°C. Package size 1206 (3.2mm x 1.6mm x 1.6mm) optimized for compact PCB layouts. Surface mount termination with flexible resin layers improves mechanical endurance.

Packaged on tape & reel for automated assembly processes. Class II suppression class with ±10% tolerance for consistent performance. Manufactured in Japan with high quality standards ensuring component reliability. Explore a wide range of Multilayer Ceramic Capacitors and related electronic components at EnvMart for various industrial and commercial applications.
