TDK 10 nF Multilayer Ceramic Capacitor 630V DC ±20% X7R Dielectric Surface Mount CGA5H4X7R2J103M115AE

Free Delivery in India | Lowest Global Shipping Charges

TDK 10 nF Multilayer Ceramic Capacitor 630V DC ±20% X7R Dielectric Surface Mount CGA5H4X7R2J103M115AE



Category Multilayer Ceramic Capacitors Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	630V dc
Brand	TDK
Height	1.15mm
Length	3.2mm
Model	CGA5H4X7R2J103M115AE
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±20 %
Capacitance	10nF
Minimum Operating Temperature	-55°C
Package/Case	1206
Dielectric	X7R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

Utilizes X7R dielectric ensuring stable operation across wide temperature range.

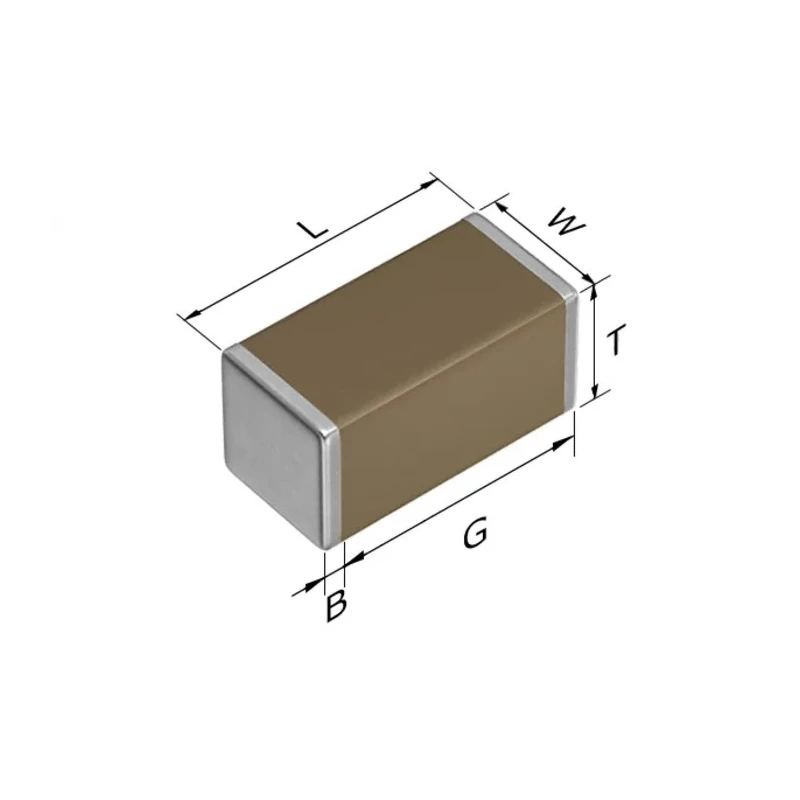

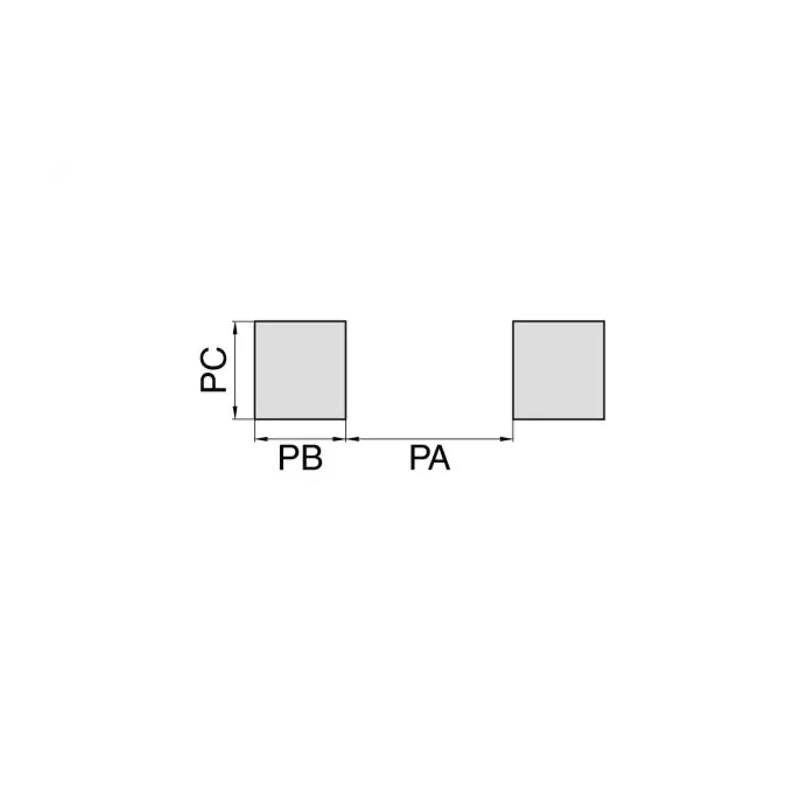

Compact 1206 package with dimensions 3.2mm length, 1.6mm width, and 1.15mm height.
Meets automotive standard AEC-Q200 for enhanced reliability.
Soft termination design improves mechanical endurance against thermal and mechanical stress.
Suitable for fail-safe battery line designs and prevention of ceramic body cracks.
Class II suppression classification providing balanced electrical characteristics.
Operating temperature range from -55°C to a maximum of 125°C.

Product Description

TDK CGA5H4X7R2J103M115AE is a high quality multilayer ceramic capacitor (MLCC) designed for demanding surface mount electronic applications. It has a capacitance of 10 nF and is rated for 630 volts DC with a tolerance of ±20%. The capacitor features X7R dielectric material, which ensures stability over a broad temperature range from -55°C up to 125°C, making it suitable for various industrial and automotive use cases.

This component comes in a compact 1206 package with precise dimensions of 3.2 mm in length, 1.6 mm in width, and 1.15 mm in height. Its automotive-grade certification (AEC-Q200) guarantees high reliability and durability under harsh conditions. The CGA series incorporates soft termination technology with conductive resin layers in the terminations, providing enhanced mechanical endurance by absorbing thermal and mechanical stresses during board flexing and thermal cycling.

Typical applications include fail-safe circuit designs in battery lines, prevention of cracks in the ceramic body caused by board bending, and resisting solder joint cracks due to thermal shock. It is ideal for high vibration environments such as keyless entry and smart key systems in automotive electronics.

Capacitance: 10 nF with ±20% tolerance. Rated voltage: 630V DC. Dielectric: X7R type. Package size: 1206 surface mount. Temperature range: -55°C to 125°C. Automotive standard: AEC-Q200 certified. Soft termination type ensures mechanical endurance.

Class II suppression for electrical noise reduction.

The product is manufactured in Japan, ensuring premium quality and strict manufacturing standards. This capacitor is suitable for electronics applications in automotive, industrial, and other commercial sectors requiring reliable and high-performance capacitor components.
