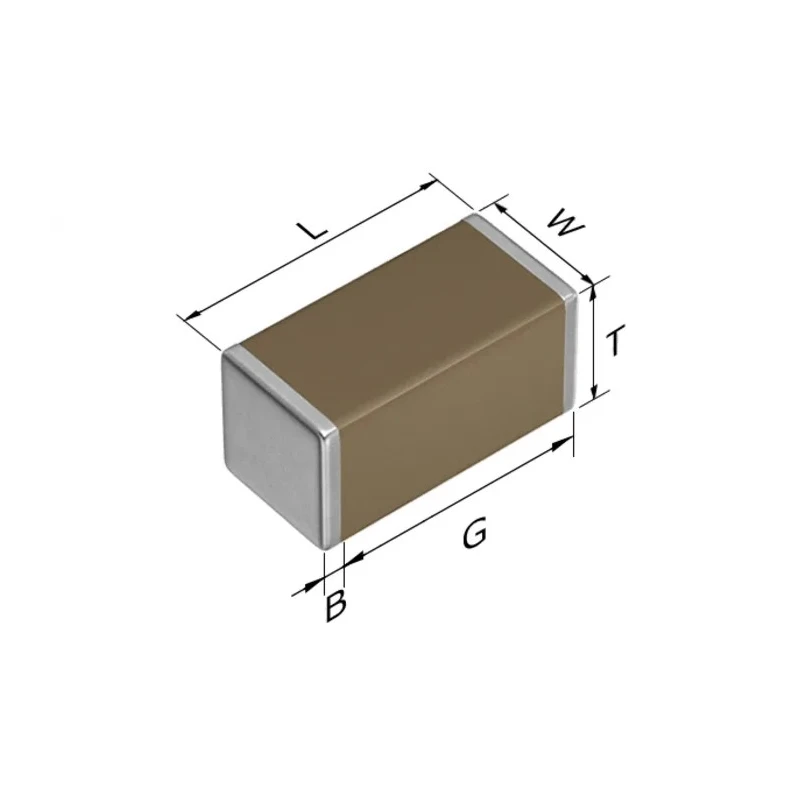

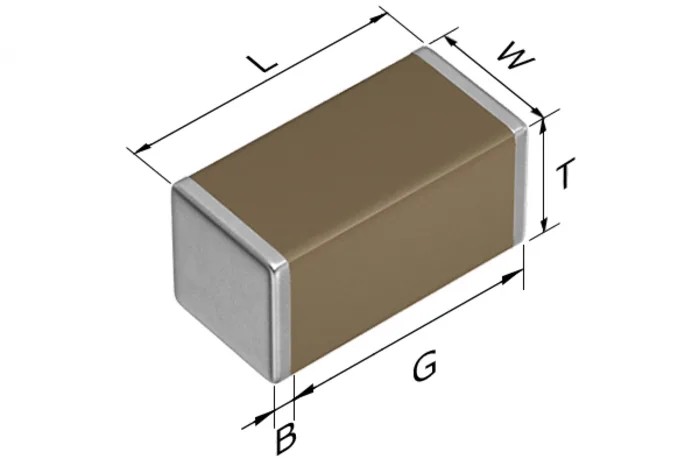

TDK 10 nF Multilayer Ceramic Capacitor, 630V DC, ±10 % Tolerance, Surface Mount, X7R Dielectric, CGA CGA5H4X7R2J103K115AE
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 630V dc |
| Brand | TDK |
| Height | 1.15mm |
| Length | 3.2mm |
| Model | CGA5H4X7R2J103K115AE |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | CGA |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1206 |
| Dielectric | X7R |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class II |
Key Features
- This capacitor uses X7R dielectric material ensuring stable performance across temperature variations.
- It features a compact 1206 package with dimensions 3.2 mm length, 1.6 mm width, and 1.15 mm height.
- The CGA series incorporates flexible resin layers providing higher mechanical endurance suitable for automotive standards AEC-Q200.
- Operating temperature range is from -55°C to 125°C, suitable for harsh environmental conditions.
- Designed to prevent ceramic body cracks and solder cracks caused by thermal and mechanical stresses.
- Available with tape and reel packaging for efficient surface mount assembly processes.
- Made in Japan ensuring quality and reliability.
- Applicable in fail-safe designs for battery lines and automotive keyless entry systems.
Product Description
TDK CGA5H4X7R2J103K115AE is a high-quality 10 nF Multilayer Ceramic Capacitor engineered for surface mounting applications. Rated at 630V DC with ±10 % capacitance tolerance, it features the X7R dielectric type which provides stable electrical performance across a wide temperature range.
The capacitor comes in a 1206 package case measuring 3.2 mm in length, 1.6 mm in width, and 1.15 mm in height, making it a compact solution suitable for densely populated circuit boards. The CGA series is characterized by a soft termination design incorporating flexible resin layers that improve mechanical endurance by absorbing thermal and mechanical stresses.
This product meets the AEC-Q200 automotive standard, making it highly suitable for automotive and industrial applications requiring enhanced reliability. It operates effectively between -55°C and 125°C, ensuring performance under various environmental conditions.
Typical applications include fail-safe designs in battery line circuits, prevention of ceramic body and solder cracks caused by mechanical bending and thermal shock, and usage in devices prone to physical impact such as smart keys and keyless entry systems.
Compact surface mount 1206 package designed for dense PCB layouts. X7R dielectric material delivers stable capacitance over temperature. Soft termination with flexible resin layers reduces mechanical stress. Automotive grade capacitor certified to AEC-Q200 for reliability.
Wide operating temperature from -55°C to 125°C accommodates harsh conditions. Suitable for fail-safe battery line designs and automotive keyless entry devices. Packaging on tape and reel ensures compatibility with automated assembly lines.
Manufactured in Japan ensuring strict quality control.
This TDK Multilayer Ceramic Capacitor belongs to the MLCCs product segment and is ideal for automotive, industrial, and electronic component manufacturing sectors. Browse more capacitors and electronic components at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 10 nF.
It is rated for a maximum voltage of 630V DC.
The operating temperature range is from -55°C to 125°C.
The dimensions of the 1206 package are 3.2 mm in length, 1.6 mm in width, and 1.15 mm in height.
This capacitor uses X7R dielectric material, which ensures stable performance across temperature variations.
It meets the AEC-Q200 automotive standard, ensuring enhanced reliability for automotive applications.
It is packaged on tape and reel, which is suitable for efficient surface mount assembly processes.
The termination type is surface mount, designed for compact PCB layouts.
The suppression class of this model is Class II.
It is suitable for fail-safe designs in battery line circuits and automotive keyless entry systems.
This capacitor is manufactured in Japan, ensuring quality and reliability.
It features a soft termination design with flexible resin layers that absorb thermal and mechanical stresses, preventing cracks.
