Molex MX123 Automotive Connector Female Grey Cable 80 Way Crimp Termination 11A Current 125°C Max Temperature 34566-0803

Free Delivery in India | Lowest Global Shipping Charges

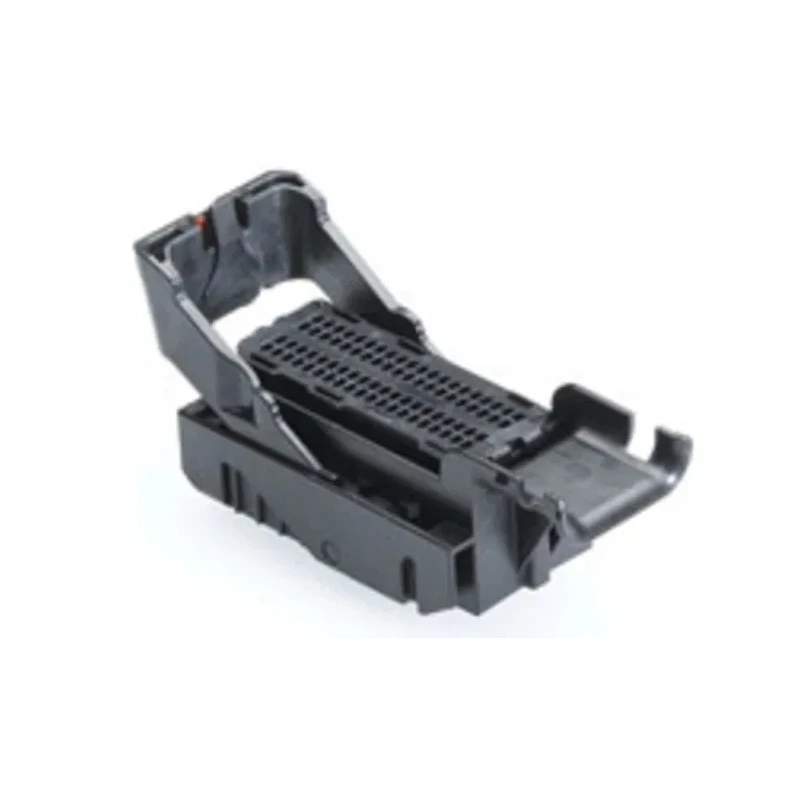

Molex MX123 Automotive Connector Female Grey Cable 80 Way Crimp Termination 11A Current 125°C Max Temperature 34566-0803

Name: Molex MX123 Automotive Connector Female Grey Cable 80 Way Crimp Termination 11A Current 125°C Max Temperature 34566-0803
Brand: Molex
SKU: 153873
Price: 15.78 USD
Availability: InStock



Category Automotive Connector Brand Molex Condition New

Specifications

Country of Origin	China
Brand	Molex
Colour	Grey
Current	11A
Height	47.92mm
Depth	100.8mm
IP Rating	IPx9K, IP67
Width	40.4mm
Gender	Female
Mount Type	Cable
Housing Material	Nylon
Contact Material	Copper Alloy
Series	MX123
Termination Type	Crimp
Maximum Operating Temperature	125°C
Sub Type	Receptacle Housing
Minimum Operating Temperature	-40°C
Number of Rows	4
Contact Plating	Gold, Silver, Tin
Number of Contacts	80

Key Features

Features crimp termination type for reliable wire contact.
Includes 80 contacts arranged in 4 rows for ample connectivity.
Supports current rating up to 11A suitable for automotive applications.
Constructed with nylon housing and copper alloy contacts with gold, silver, and tin plating.
Rated for IPx9K and IP67 ingress protection ensuring durability in harsh conditions.
Operates reliably between -40°C and 125°C temperature range.
Grey colored receptacle housing with 2.54mm pitch and keying option H for secure mating.
Designed for cable mount type installations in automotive systems.

Product Description

Molex 34566-0803 MX123 Automotive Connector is a female receptacle housing designed for cable termination in automotive electrical systems. This connector features 80 circuits with crimp termination ensuring secure and reliable wire connections suitable for high-demand environments.

The connector supports currents up to 11A and operates efficiently across a wide temperature range from -40°C to 125°C, making it ideal for automotive applications subjected to dynamic thermal conditions.

Its housing is crafted from durable nylon material, providing mechanical strength and chemical resistance. The contacts are made from copper alloy with a plating blend of gold, silver, and tin, offering excellent conductivity and corrosion resistance for long-lasting performance.

With an IP rating of IPx9K and IP67, this component is highly resistant to ingress of dust and water, ensuring functionality in challenging environments including exposure to high-pressure water jets.

The compact dimensions of 40.4mm width, 47.92mm height, and 100.8mm depth facilitate installation in constrained spaces. The 2.54mm pitch and keying option H ensure proper alignment and mating with compatible connectors.

This automotive connector is manufactured in China and tailored for use in automotive, industrial, and electronic applications requiring robust wire-to-wire connections. Features crimp termination type for reliable wire contact.

Includes 80 contacts arranged in 4 rows for ample connectivity. Supports current rating up to 11A suitable for automotive applications. Constructed with nylon housing and copper alloy contacts with gold, silver, and tin plating.

Rated for IPx9K and IP67 ingress protection ensuring durability in harsh conditions. Operates reliably between -40°C and 125°C temperature range. Grey colored receptacle housing with 2.54mm pitch and keying option H for secure mating.

Designed for cable mount type installations in automotive systems.
