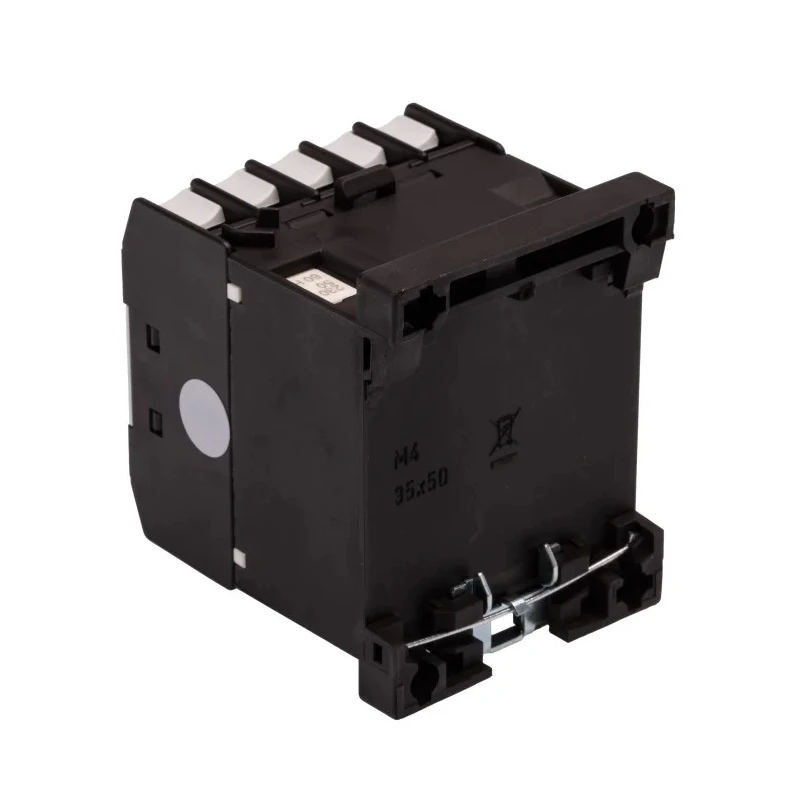

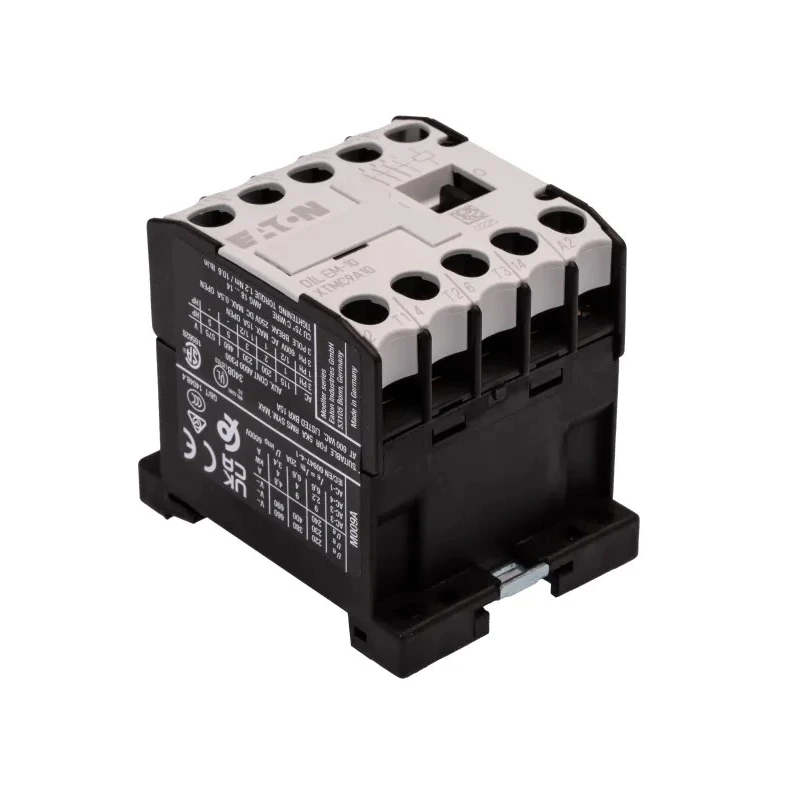

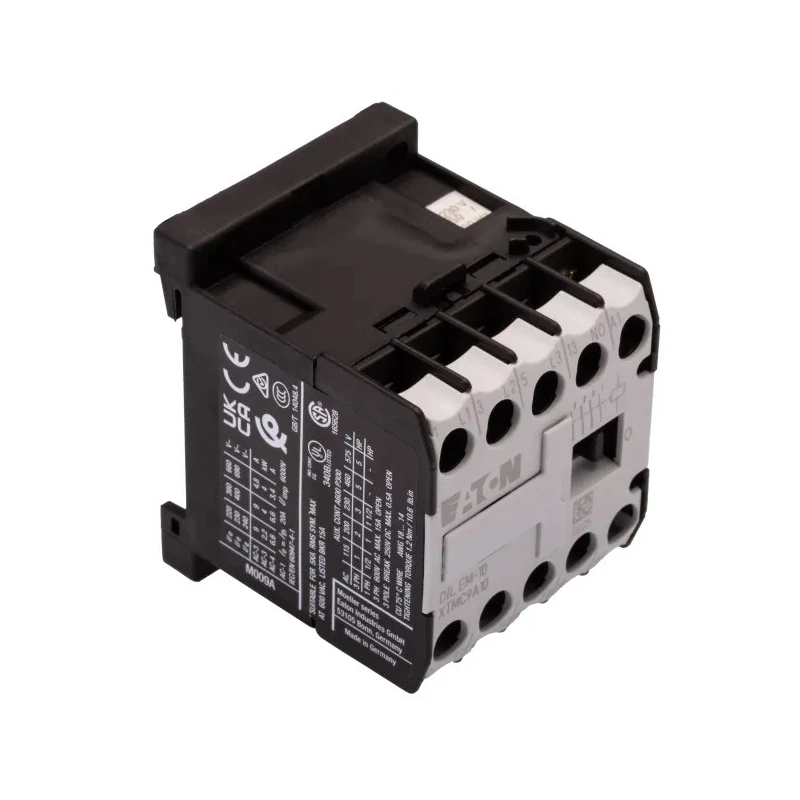

Eaton DILEM Contactor 3-Pole 9A 4kW 230V AC Coil, 3 NO Auxiliary Contacts, DIN Rail Mount 052302 DILEM-10(230V50/60HZ)
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | 052302 DILEM-10(230V50/60HZ) |
| Depth | 83mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | DILEM |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | UL, IEC, EN, CSA |
| Contact Voltage | 400V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3P |
| RS PRO Contactor, 230V ac Coil, 3-Pole, 9 A, 4 kW, 3V, 400 VRS Stock No. | 277-8397Brand: RS PRO |
| Eaton Contactor, 400 V Coil, 3-Pole, 9 A, 4 kW, 1NOBrand | Eaton |
Key Features
- Rated for operation at 400V AC contact voltage and power rating of 4 kW.
- Equipped with one auxiliary contact configured as 1 NO for additional control functionality.
- Mounts easily on DIN rails for efficient installation in industrial control panels.
- Operates within a temperature range of -25°C to +50°C, suitable for various environments.
- Features screw clamp terminals for secure electrical connections.
- Designed for reliable motor control with mechanical durability of up to 10 million operations.
- Includes positive operating contacts for consistent electrical performance.
- Manufactured to UL, IEC, EN, and CSA standards ensuring safety and compliance.
Product Description
Eaton 052302 DILEM-10(230V50/60HZ) is a high-quality contactor designed for industrial motor control and resistive load applications. This 3-pole contactor features a coil voltage of 230V AC with a rated contact current of 9A and power handling capacity of 4 kW, making it suitable for a wide range of electrical control tasks.
It supports a contact voltage of 400V AC and includes one auxiliary contact with a 1 NO configuration to extend control capabilities. The device is engineered for DIN rail mounting, facilitating quick and secure installation within control panels.
The contactor operates reliably over a broad temperature range from -25°C to +50°C and uses screw clamp terminals to ensure firm and safe electrical connections. Its robust mechanical design delivers up to 10 million operational cycles, enhancing durability for demanding industrial environments.
This product complies with major international safety standards including UL, IEC, EN, and CSA, confirming its suitability for industrial, manufacturing, HVAC, and automation system applications. The positive operating contacts ensure consistent and stable electrical performance during operation.
Manufactured in Germany, the Eaton DILEM contactor combines precision engineering and robust construction for reliable use in motor starters, industrial machinery, and resistive load circuits.
Rated 230V AC coil voltage and 9A contact current. 3-pole configuration with 3 NO state contacts. One auxiliary contact for extended control. DIN rail mounting for efficient installation. Wide operating temperature from -25°C to +50°C.
Screw clamp terminals for secure connections. Mechanical lifespan of 10 million operations. Compliance with UL, IEC, EN, CSA standards. Manufactured in Germany. Explore more Contactors and control gear products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILEM contactor has a power rating of 4 kW.
This model has a contact current rating of 9A.
It operates with a coil voltage of 230V AC.
The maximum operating temperature for this contactor is 50°C.
This contactor features a 3-pole configuration.
It uses screw clamp terminals for secure electrical connections.
The auxiliary contact is configured as 1 NO (normally open).
The dimensions of this model are 58mm in length, 45mm in width, and 83mm in depth.
It complies with UL, IEC, EN, and CSA standards.
The mechanical lifespan of this contactor is rated for up to 10 million operations.
It is designed for motor control and resistive load applications.
It is designed for DIN rail mounting, facilitating easy installation.
