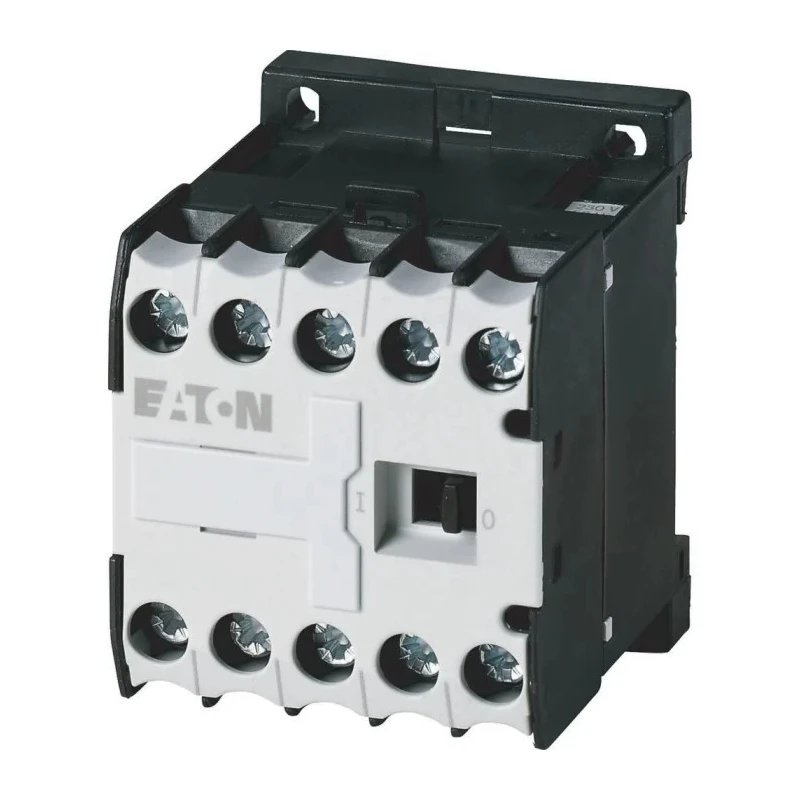

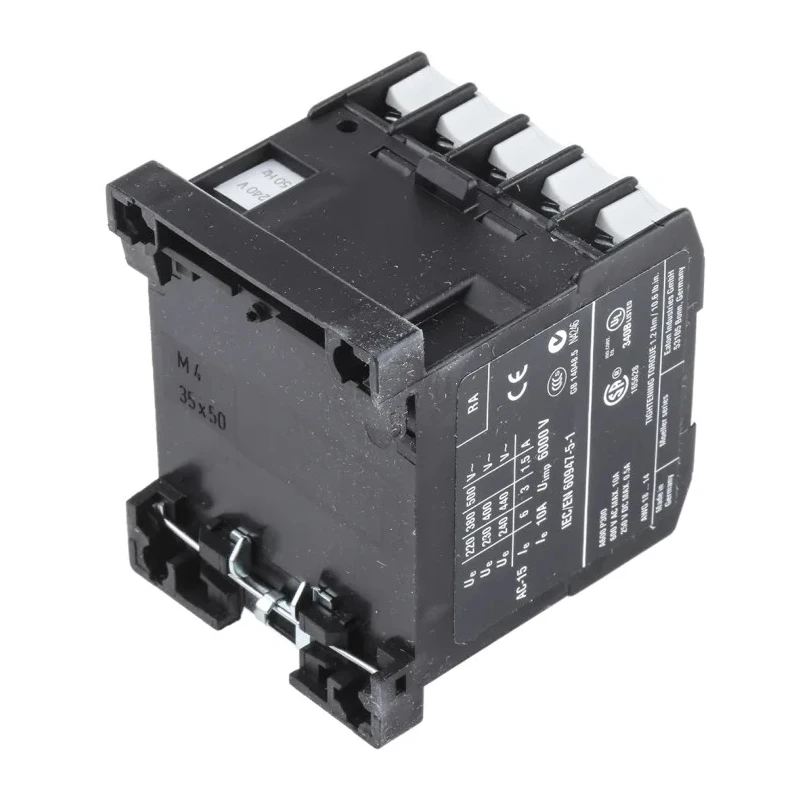

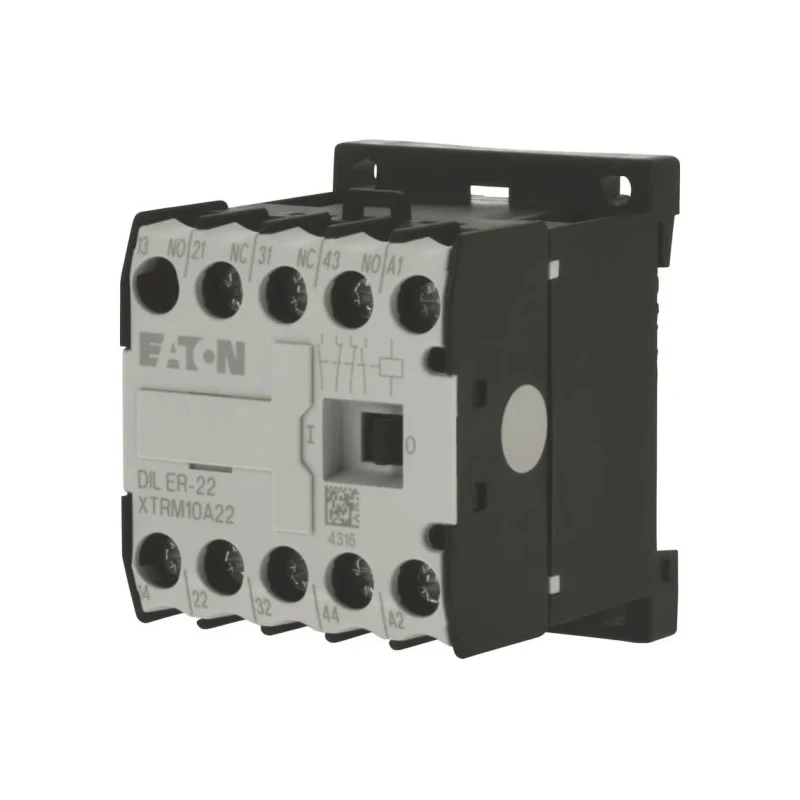

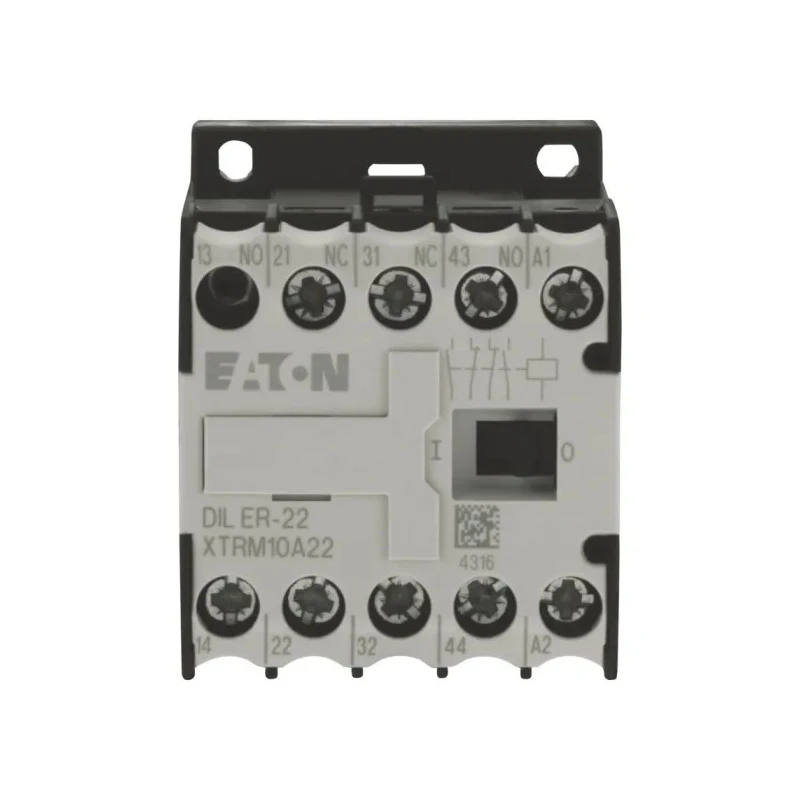

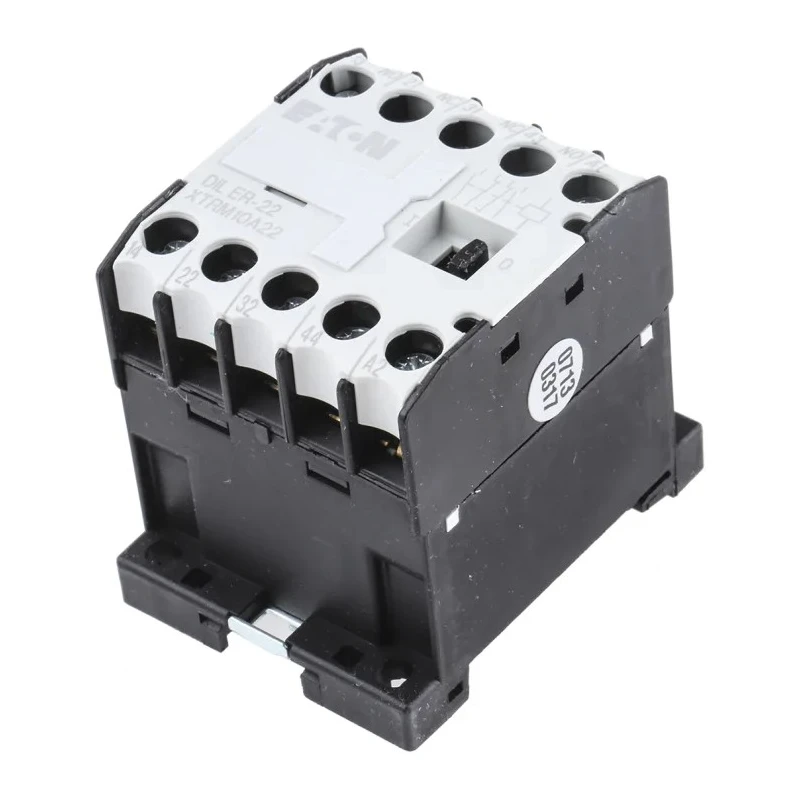

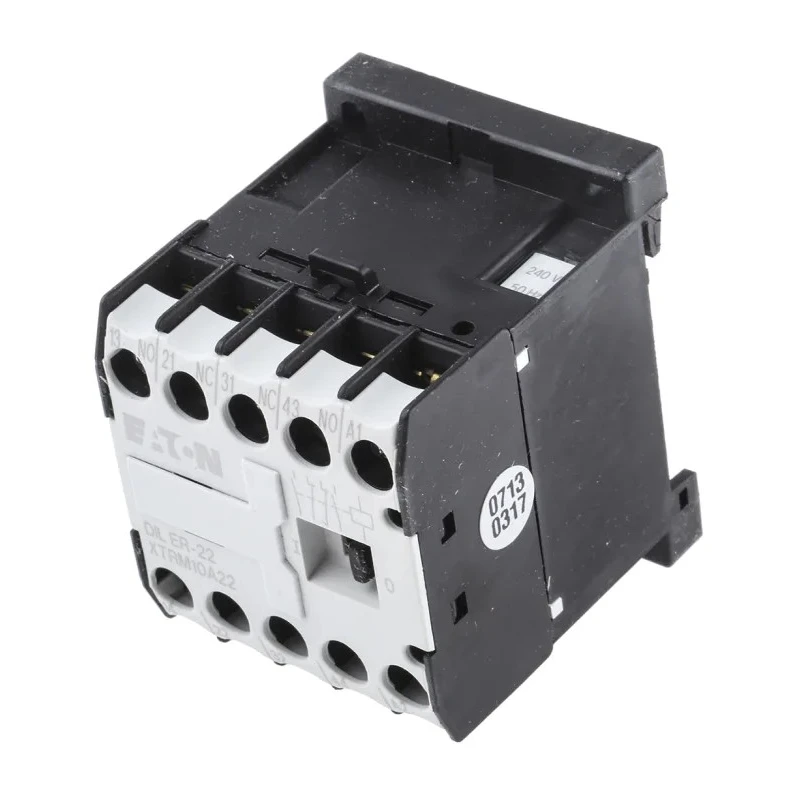

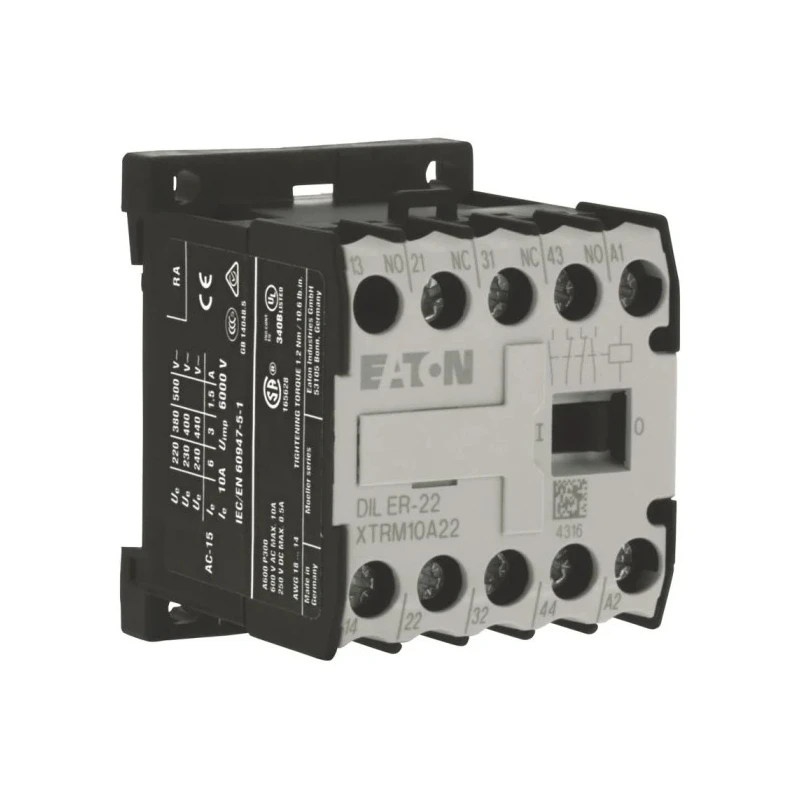

Eaton DILER Contactor, 4-Pole, 3 A, 240V AC Coil, 400V AC Contact Voltage, Screw Terminal, DIN 010138 DILER-22(240V50HZ)

Eaton 010138 DILER-22(240V50HZ) 4-Pole Contactor is an industrial-grade electrical switching device designed for motor switching and power control applications in residential, commercial, and industrial environments. Equipped with a 240V AC coil and rated for a contact voltage of 400V AC, this contactor ensures reliable operation with its screw terminal type for secure electrical connections.

The compact design measures just 58mm length, 45mm width, and 54mm depth, making it ideal for installations in constrained control cabinets or panels. This DIN rail mountable contactor provides flexible mounting options and ease of integration.

Engineered to withstand demanding operations, the Eaton DILER contactor supports up to 10 million mechanical lifecycles and can safely perform up to 9000 switching operations per hour, suitable for frequent switching scenarios. Its contact configuration includes 2 Normally Open (NO) and 2 Normally Closed (NC) poles, supporting diverse control circuit requirements.

With an operational current (Ie) rating of 10A and a contact current capacity of 3A, this contactor is suitable for controlling various electrical motors and power switching loads within industrial systems. Temperature endurance ranges from -25°C minimum to 40°C maximum, allowing reliable operation across multiple environments.

Safety features include an IP20 rating, ensuring finger protection against accidental contact, and compliance with multiple international standards such as UL, VDE 0660, CSA, EN 60947-5-1, and IEC/EN 60947, which guarantee quality and performance consistency.

Secure screw terminal contacts provide reliable electrical connections. Compact and lightweight at approximately 170g, ideal for dense control panel layouts. Durable mechanical lifespan with up to 10 million operations for long-term use.

IP20 rating for user safety with finger protection. Wide operating temperature range supports varied environmental conditions. Certified to international electrical standards for assured compliance. Installation compatible with DIN rail mounting systems.

This Eaton DILER contactor is a dependable choice for electrical contractors, system integrators, and maintenance professionals who require a compact, efficient solution for power and motor switching in diverse electrical applications.
