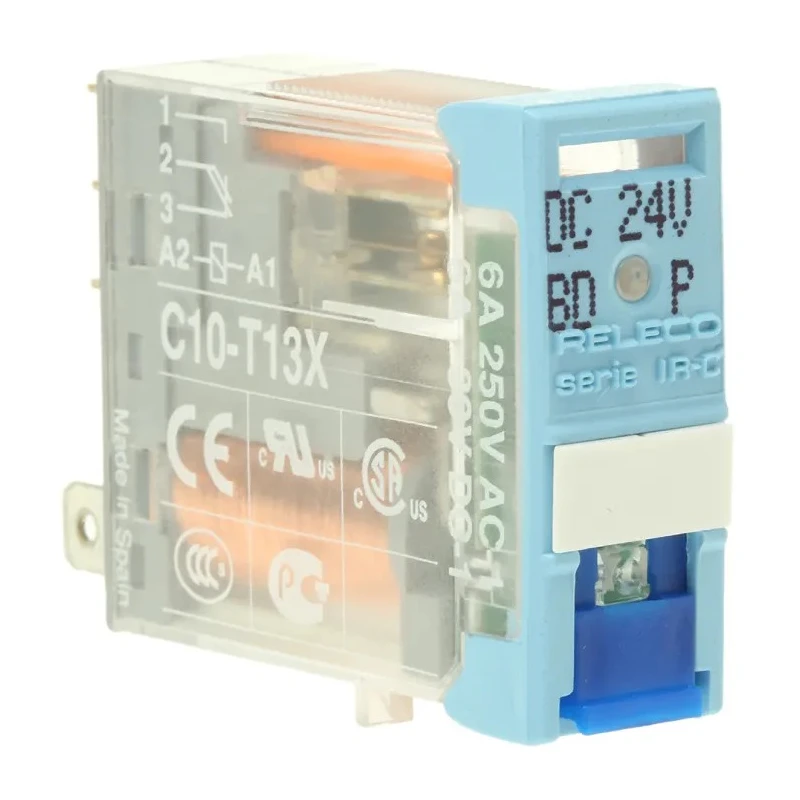

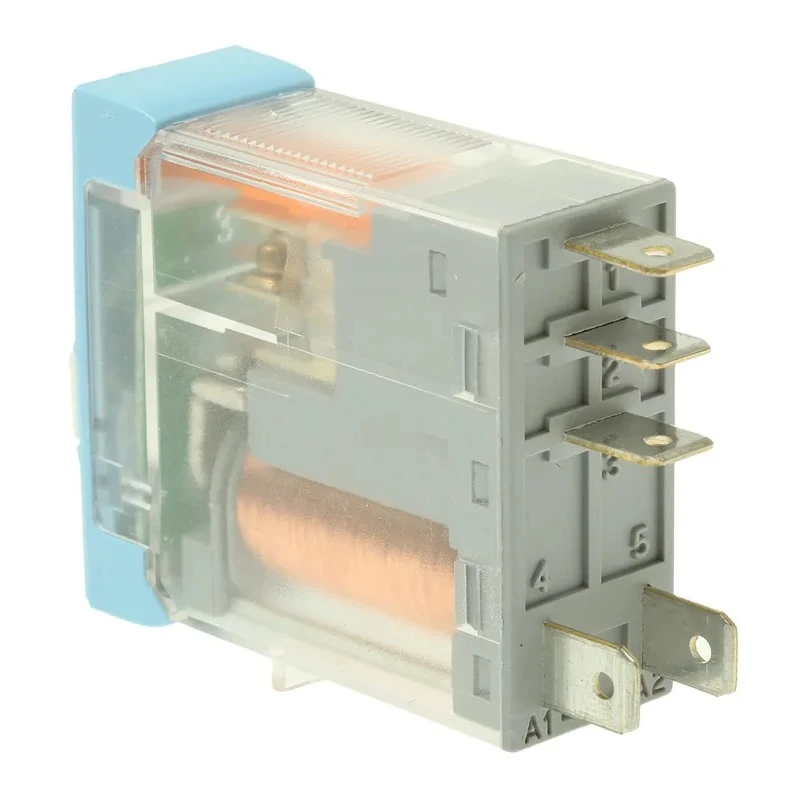

Releco PCB Power Relay 24V dc Coil 6A Switching Current SPDT C10-T13X / DC 24 V

Releco C10-T13X / DC 24 V PCB Power Relay is designed for robust electrical switching in industrial, automation, and control systems. This power relay features a 24V dc coil and a switching current rating of 6A, making it suitable for demanding applications requiring reliable switching performance.

The relay's Single Pole Double Throw (SPDT) contact configuration enables versatile circuit control. It incorporates a test button that is color-coded and dual-function, providing push-to-test or lift-to-latch operation, complemented by an LED indicator and mechanical flag for clear operational feedback.

The coil power rating is 650mW with a coil resistance of 742Ω, balancing power efficiency and performance. The contact material is gold plated, ensuring minimal contact resistance and extended service life even under frequent switching.

Operating temperature range is from -40°C to +60°C, allowing deployment in harsh industrial environments. The maximum switching AC voltage is 240V ac with a switching power of 1.5kVA. The relay dimensions (Height: 35.4mm, Length: 28.8mm, Width: 12.5mm) support compact PCB mounting with quick connect terminals for simplified assembly.

This relay complies with key international safety and quality standards including CSA, UL, RoHS, IEC, and EN. It belongs to the C10 series, known for durability and industrial-grade performance. A removable marking label and robust industrial terminal blades add to the practical features including options for bifurcated contacts specialized for low-level signal switching.

Typical use cases include electrical control panels, automation systems, HVAC, manufacturing equipment, and other industrial applications requiring reliable and efficient power relay switching.

Explore more power relay solutions and components in EnvMart’s Electronics & Electricals category to find the right parts for your industrial automation and control needs. This power relay features a Single Pole Double Throw (SPDT) contact configuration.

The coil power consumption is 650mW with a coil resistance of 742Ω. It supports a maximum switching AC voltage of 240V ac and switching power of 1.5 kVA. Operating temperature range spans from -40°C to 60°C ensuring industrial robustness.

Compact dimensions of 35.4mm height, 28.8mm length, and 12.5mm width support PCB mounting. Contacts are gold plated for enhanced durability and low contact resistance. Terminals use quick connect type for easy installation and maintenance.

Includes a mechanical test button, LED indication, and mechanical flag indicator for status verification. Certified to CSA, UL, RoHS, IEC, and EN standards ensuring safety and quality compliance. Browse EnvMart’s Power Relay section for a diverse range of industrial-grade relays and automation components.
