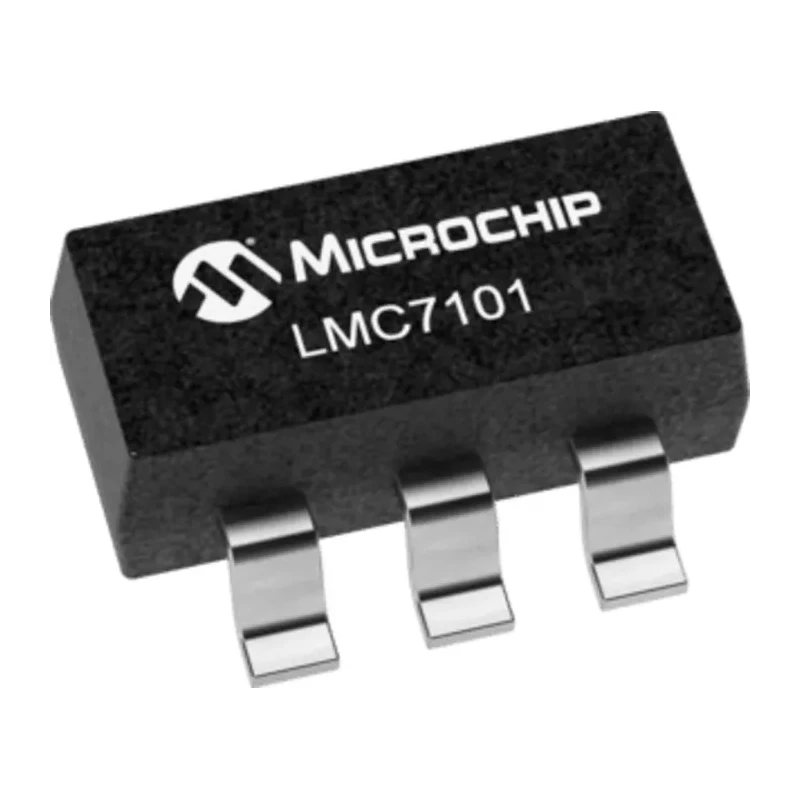

Microchip Operational Amplifier 500 kHz, 5-Pin SOT-23, 12V LMC7101BYM5-TR
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.02mm |
| Model | LMC7101BYM5-TR |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | LMC7101 |
| Output Current | 200mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 500kHz |
| Input Bias Current | 64 pA |
| Vos - Input Offset Voltage | 9 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 32 pA |
Key Features
- Operates from 2.7V to 12V single-ended power supplies with guaranteed performance.
- Features rail-to-rail input and output for maximum dynamic range.
- Compact SOT-23-5 small footprint package supports space-constrained designs.
- Low typical supply current of 0.5mA at 5V ensures energy efficiency.
- Supports output current up to 200mA for demanding applications.
- Operates reliably from -40°C to 85°C for industrial and commercial use.
- Achieves 0.01% total harmonic distortion at 10kHz with 5V and 2kΩ load.
- Input common-mode range includes ground and extends 300mV beyond rails.
Product Description
Microchip LMC7101BYM5-TR operational amplifier offers a 500 kHz gain bandwidth product designed for use from 2.7V up to 12V single-ended power supplies. It is packaged in a compact 5-pin SOT-23 package, making it ideal for space-constrained electronic applications. Its rail-to-rail input and output capabilities provide maximum dynamic range and adapt well to low voltage power supplies.
This device's input common-mode voltage range includes ground and extends 300mV beyond the supply rails, for example, from -0.3V to +5.3V with a 5V supply, ensuring versatility in various circuit topologies.
The typical supply current is approximately 0.5mA at 5V, making it suitable for low-power designs. It achieves excellent linearity with only 0.01% total harmonic distortion at 10kHz under a 5V supply and 2kΩ load. The output current capability up to 200mA supports applications requiring higher drive capabilities.
The operating temperature range of -40°C to 85°C ensures the device can operate reliably in industrial, automotive (non-automotive rated though), laboratory, and commercial electronic systems. The LMC7101BYM5-TR is fully RoHS compliant, supporting environmentally conscious designs.
Its small SOT-23 footprint facilitates compact circuit board layouts, typically seen in power management, signal conditioning, and instrumentation applications. Operates from 2.7V to 12V power supplies with guaranteed performance.
Rail-to-rail input and output maximize signal handling range. Small SOT-23-5 package suitable for compact designs. Low supply current of 0.5mA at 5V. Output current up to 200mA. Wide operating temperature range from -40°C to 85°C.
High linearity with 0.01% THD at 10 kHz. Input voltage range includes ground and extends beyond supply rails. RoHS compliant for environmental safety.
This Microchip operational amplifier is perfect for industrial, laboratory, instrumentation, and consumer electronics requiring precision, low noise, and low power operational amplifiers. Explore more Operational Amplifiers and semiconductor components within the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 500 kHz.
It operates from a minimum supply voltage of 2.7V to a maximum of 12V.
This operational amplifier can provide an output current of up to 200mA.
The dimensions of the SOT-23 package are 3.02mm in length, 1.75mm in width, and 1.3mm in height.
It operates reliably within a temperature range of -40°C to 85°C.
The typical supply current at 5V is approximately 0.5mA.
The input common-mode voltage range includes ground and extends 300mV beyond the supply rails.
It achieves a total harmonic distortion of 0.01% at 10kHz with a 5V supply and a 2kΩ load.
It supports surface mounting, suitable for compact designs.
The input bias current is 64 pA, and the input offset current is 32 pA.
Yes, this operational amplifier is fully RoHS compliant, supporting environmentally conscious designs.
This model has a single channel configuration.
