Microchip 1A Low Dropout Linear Voltage Regulator 6V SOIC 8-Pin MIC37102YM

Free Delivery in India | Lowest Global Shipping Charges

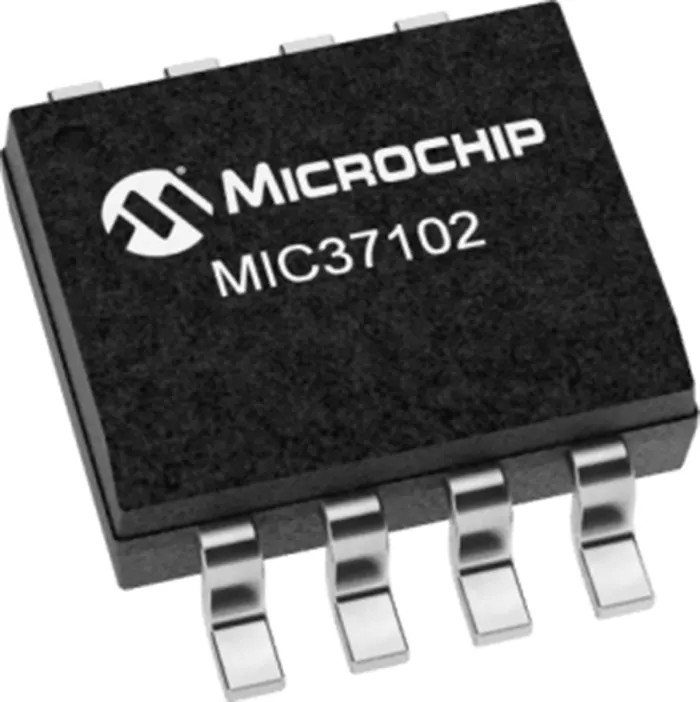

Microchip 1A Low Dropout Linear Voltage Regulator 6V SOIC 8-Pin MIC37102YM

Name: Microchip 1A Low Dropout Linear Voltage Regulator 6V SOIC 8-Pin MIC37102YM
Brand: Microchip
SKU: 153344



Category Voltage Regulators Brand Microchip Condition New

Specifications

Country of Origin	India
Voltage	Regulators Microchip, Voltage Regulator 6V SOIC 8-Pin RS Stock No
Brand	Microchip
Height	1.48mm
Length	4.93mm
Model	MIC37102YM
Width	3.94mm
Mount Type	Surface
Series	MIC37102
Maximum Operating Temperature	125°C
Package Type	SOIC
Polarity	Positive
Maximum Input Voltage	6V
Quiescent Current	11mA
Standards/Approvals	RoHS
Minimum Input Voltage	2.25V
Pin Count	8

Key Features

Provides low dropout voltage of approximately 280mV at 1A current.
Maintains low ground current of typically 11mA at 1A load.
Compatible with input voltages from 2.25V to 6V.
Guarantees 1A minimum output current with 1% initial accuracy.
Includes current limiting and thermal shutdown protection.
Features reverse leakage protection and fast transient response.
Available in SOIC-8 and S-PAK packages.
Compliance with RoHS standards ensuring environmental compatibility.

Product Description

Microchip MIC37102YM is a high-performance 1A low dropout linear voltage regulator designed for precise power management in electronic devices. Featuring a compact SOIC 8-pin surface-mount package with dimensions 4.93mm length, 3.94mm width, and 1.48mm height, it is optimized for low-voltage, high-current output applications. The device supports input voltage ranges from 2.25V minimum to 6V maximum and operates reliably up to 125°C maximum temperature.

Using Microchip's proprietary Super βeta PNP® pass element technology, the MIC37102YM ensures a low dropout voltage typically around 280mV at full 1A load, minimizing power loss and heat generation. It maintains a low quiescent ground current of approximately 11mA even at high output current, enhancing overall efficiency.

The regulator provides robust protection features including current limiting to prevent overload, thermal shutdown for overheating protection, and reverse leakage protection to protect from reverse voltage stress. The device's fast transient response allows it to quickly adjust output voltage under rapid load changes, making it ideal for sensitive power applications.

This product is compliant with RoHS environmental standards, making it suitable for modern sustainable electronic manufacturing. Low dropout linear regulator with 1A output current capability. Accurate 1% initial output voltage regulation.

Thermal shutdown and current limiting for reliability. Compact SOIC-8 package supports surface mount applications. Wide input voltage range from 2.25V to 6V. Fast transient response suitable for sensitive electronics. RoHS-compliant for environmental safety.

This voltage regulator is widely used in electronics, industrial controls, power supplies, and other applications requiring efficient, stable voltage regulation. Its compact size and protection features make it suitable for commercial and industrial PCB designs.
