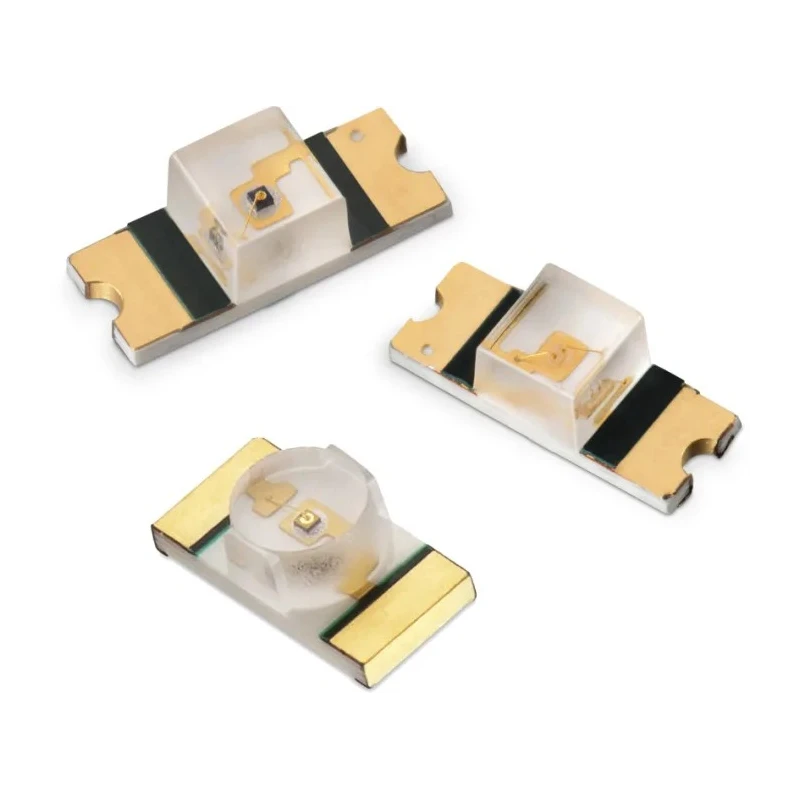

Wurth Elektronik 3.9 V Blue LED 1205 Surface WL-SMRW 156125BS75000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Model | 156125BS75000 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SMRW |
| Maximum forward current | 60mA |
| Viewing angle | 140 ° |
| Package Type | 1205 |
| Standards/Approvals | RoHS |
| LED Colour | Blue |
| Dominant Wavelength | 470nm |
| Forward Voltage | 3.9V |
| Number of Pins | 2 |
| LED Luminosity | 120 mcd |
| Maximum Power Dissipation | 78mW |
| Lens Dimensions | 3.2 x 1.2 x 1.1 mm |
| Lens Shape | Rectangular |
Key Features
- This LED has a forward voltage of 3.9 V and can handle a maximum forward current of 60 mA.
- It features a rectangular 1205 package type suitable for tape and reel packaging.
- The device offers a viewing angle of 140 degrees and emits light at a dominant wavelength of 470 nm.
- The LED luminosity is rated at 120 mcd providing bright and efficient illumination.
- Its compact lens dimensions of 3.2 x 1.2 x 1.1 mm make it ideal for narrow space applications.
- Designed with a clear rectangular lens to emit optimal light through a small cut-out hole in printed circuit boards.
- The product complies with RoHS standards and is manufactured in Taiwan, Province Of China.
- This LED is compatible with automatic placement machines facilitating efficient assembly.
Product Description
Wurth Elektronik 156125BS75000 is a 3.9 V blue LED with a 1205 surface mount package, designed specifically for compact and narrow space electronic applications. It operates at a maximum forward current of 60 mA with a forward voltage of 3.9 V, ensuring low power consumption.
The LED features a viewing angle of 140 degrees and a dominant wavelength of 470 nm, delivering vibrant blue light with a luminous intensity of 120 mcd. Its rectangular clear lens with dimensions of 3.2 x 1.2 x 1.1 mm supports precise light emission ideal for front panel indicators, LCD backlighting, keypad backlighting, and symbol or switch button illumination.
Manufactured under strict RoHS compliance, this LED is packaged on tape and reel suitable for automatic placement, increasing production efficiency. The small form factor and industry standard footprint facilitate easy integration in mobile devices, networking, telecommunications equipment, instrumentation, fitness wearables, audio and video devices, and medical and healthcare applications.
This LED has a forward voltage of 3.9 V and a maximum forward current of 60 mA. It is packaged in a 1205 rectangular surface mount package with tape and reel packaging. The viewing angle of 140 degrees allows for wide-angle illumination.
The LED emits blue light at a dominant wavelength of 470 nm with a luminosity of 120 mcd. The compact lens dimensions are 3.2 x 1.2 x 1.1 mm. Compliant with RoHS directives ensuring environmental safety. Compatible with automatic placement machines for efficient manufacturing.
Widely used in industrial, manufacturing, electronic component assembly, consumer electronics, and medical device industries, this blue LED provides reliable and precise illumination. Its small footprint and high brightness make it a preferred choice for designers aiming for space-saving yet bright indicators and visual signaling.
EnvMart provides comprehensive access to Wurth Elektronik LED components like the 156125BS75000 model to support your electronic manufacturing and design requirements through dependable quality and technical performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this blue LED is 3.9 V.
It can handle a maximum forward current of 60 mA.
The lens dimensions are 3.2 x 1.2 x 1.1 mm.
The viewing angle of this LED is 140 degrees.
The LED emits light at a dominant wavelength of 470 nm.
It is packaged on tape and reel, suitable for automatic placement machines.
The luminosity of this LED is rated at 120 mcd.
This LED uses a surface mount type.
It complies with RoHS standards.
This LED is manufactured in Taiwan, Province Of China.
The maximum power dissipation is 78 mW.
This LED is suitable for applications such as front panel indicators, LCD backlighting, and keypad backlighting.
