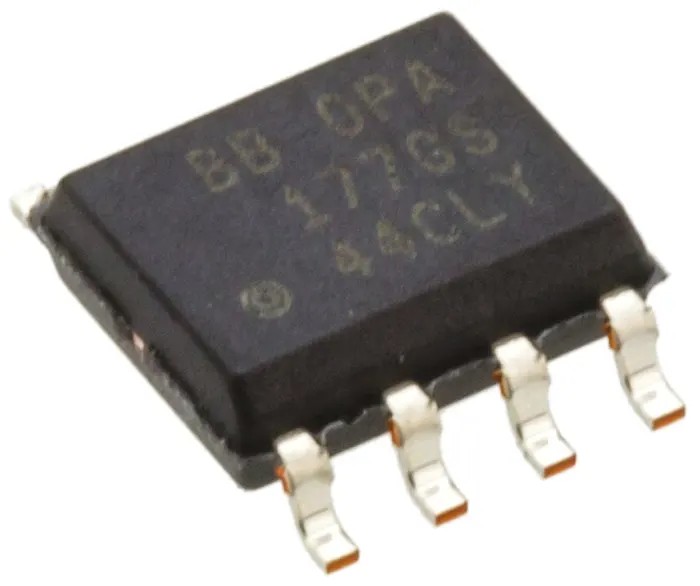

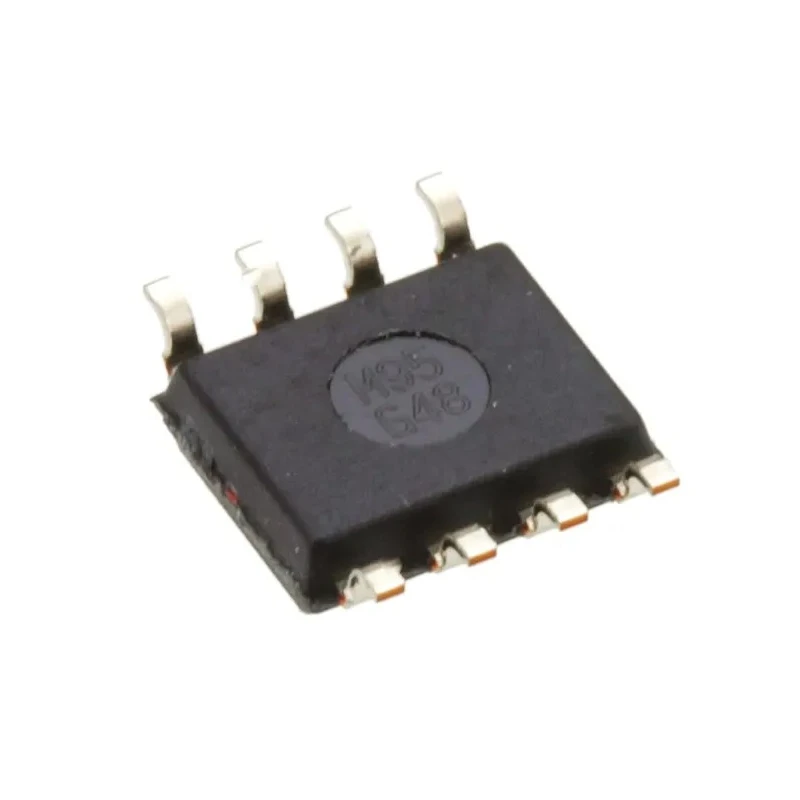

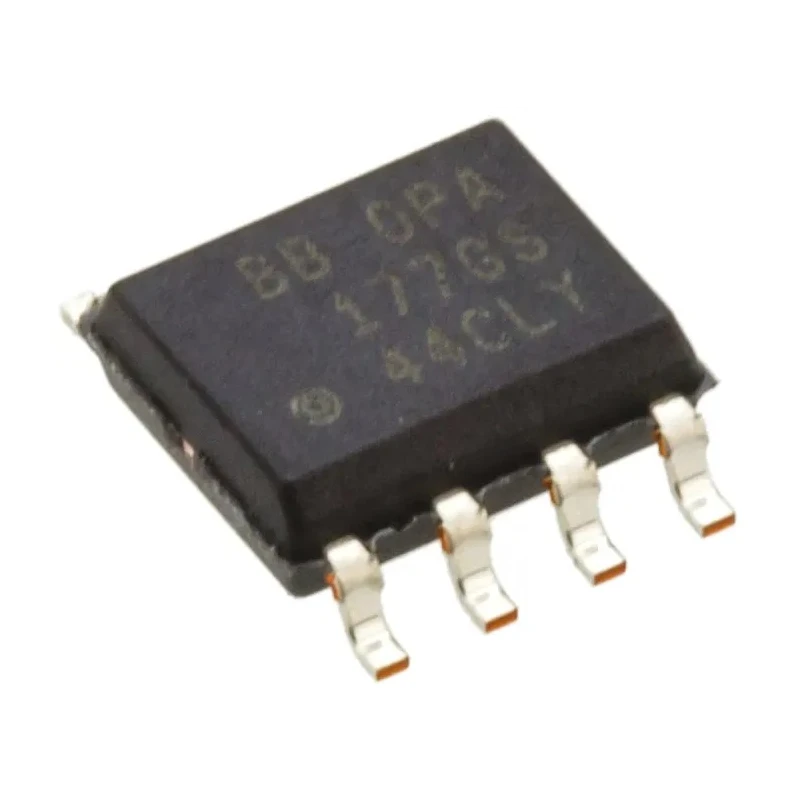

Texas Instruments Precision Operational Amplifier, 600 kHz Gain Bandwidth, 8-Pin SOIC Surface Mount, ±22V Supply, OPA177GS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OPA177GS |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OPA17 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | -22V |
| GBP - Gain Bandwidth Product | 600kHz |
| Input Bias Current | ±2.8 nA |
| Slew Rate | 0.3V/μs |
Key Features
- Operates over a wide supply voltage range of ±22V for flexible design integration.
- Features a low input bias current of ±2.8 nA, suitable for sensitive analog circuits.
- Offers a slew rate of 0.3 V/μs, allowing fast response time in dynamic applications.
- Operates reliably between temperatures of -40°C to 85°C for industrial environments.
- Compact SOIC package with dimensions 4.9 mm length, 3.91 mm width, and 1.58 mm height for space-saving PCB layouts.
- Single channel configuration optimized for precision analog signal processing.
- Suitable for use in instrumentation, active filters, transducer amplifiers, and strain gauge circuits.
- Designed for surface mount technology to facilitate automated assembly processes.
Product Description
The Texas Instruments OPA177GS is a precision operational amplifier optimized for demanding applications requiring high accuracy and low drift over time and temperature. Featuring a gain bandwidth product of 600 kHz, this single channel amplifier operates at supply voltages up to ±22V, suitable for robust industrial and laboratory instrumentation.
The device's ultra-low input bias current of ±2.8 nA and low input offset voltage of 60 μV allow it to amplify very small differential signals accurately, making it ideal for signal conditioning in transducer and strain gauge amplifiers, precision integrators, and active filter circuits.
Housed in a compact 8-pin SOIC surface mount package with dimensions of 4.9 mm length, 3.91 mm width, and 1.58 mm height, the OPA177GS supports modern PCB manufacturing techniques and space-efficient designs. Its slew rate of 0.3 V/μs facilitates responsive analog signal processing in control and measurement systems.
With an operational temperature range from -40°C to +85°C, this amplifier is suited for industrial, instrumentation, laboratory, and manufacturing applications requiring high stability and quality signal amplification.
Operates at ±22V supply voltage providing wide dynamic range. Low input bias current of ±2.8 nA for precision signal detection. Slew rate of 0.3 V/μs supports fast signal changes. Compact 8-pin SOIC package suitable for surface mounting.
Extended temperature range (-40°C to 85°C) for harsh environments. Single channel amplifier configuration for precision analog tasks. Ideal for transducer and strain gauge amplifiers and active filters. Low offset voltage ensures accuracy in instrumentation.
This Texas Instruments OPA177GS operational amplifier is an excellent choice for engineers and designers working on high precision, low noise electronic designs in industrial, laboratory, medical, and commercial electronics sectors.
Explore more precision Operational Amplifiers and semiconductor products to enhance your electronic components inventory at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA177GS has a gain bandwidth product of 600 kHz, making it suitable for high-frequency applications.
It operates with a supply voltage range of ±22V, allowing for flexible design integration in various applications.
The input bias current of the OPA177GS is ±2.8 nA, which is ideal for amplifying small differential signals accurately.
The slew rate of the OPA177GS is 0.3 V/μs, providing fast response times in dynamic applications.
This operational amplifier comes in a compact 8-pin SOIC package with dimensions of 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
The OPA177GS operates reliably between -40°C to 85°C, making it suitable for industrial environments.
It is designed for surface mount technology, facilitating automated assembly processes.
This model features a single channel configuration, optimized for precision analog signal processing.
It is suitable for use in instrumentation, active filters, transducer amplifiers, and strain gauge circuits.
The OPA177GS has a low input offset voltage of 60 μV, ensuring accuracy in sensitive applications.
The operational amplifier is housed in an 8-pin SOIC package, which is compact and suitable for modern PCB layouts.
It belongs to the OPA17 series of operational amplifiers, which are designed for high precision and low noise applications.
