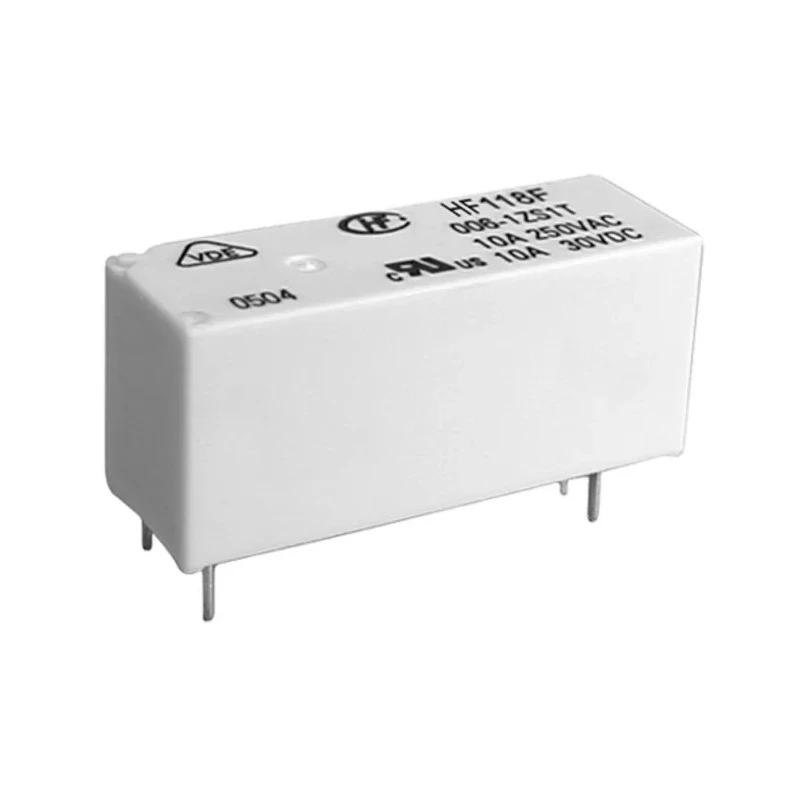

Hongfa Europe GMBH PCB Power Relay 12V dc Coil 10A Switching Current SPST HF118F/012-1ZS1T(136)

Hongfa Europe GMBH HF118F/012-1ZS1T(136) PCB Power Relay features a 12V dc coil voltage and a switching current capacity of 10A with SPST contact configuration. It is specifically designed for Printed Circuit Board (PCB) mounting applications, where reliable power relay switching is needed in industrial, electrical automation, and signal conditioning contexts.

This power relay offers a compact and low-height package with overall dimensions of 28.5 mm length, 10.1 mm width, and 12.5 mm height, facilitating integration into tightly spaced electronic assemblies.

Constructed with silver alloy contacts, it ensures excellent electrical conductivity and minimal contact resistance of 100mΩ. Its coil resistance is 620Ω with power consumption rated at 290mW, making it efficient to operate.

The relay supports operation over a wide temperature range from -40°C to 85°C, suitable for demanding industrial environments. It can switch AC voltages up to 440V and DC voltages up to 125V, with a switching power rating of 2.5 kVA, making it versatile for various power control requirements.

Designed with plastic sealed and flux proofed types, this environmentally friendly product complies with RoHS standards, ensuring safe use and minimal hazardous substances. Its dielectric strength withstands 5kV between coil and contacts, providing electrical isolation and safety during operation.

Coil voltage of 12V dc ensures efficient operation. Rated switching current of 10A suitable for various power applications. SPST contact configuration providing single-pole single-throw switching. Compact dimensions of 28.5 x 10.1 x 12.5 mm ensure space saving on PCB.

Silver alloy contact material for reliable conductivity and durability. Operating temperature range from -40°C to 85°C supports harsh environments. Coil resistance of 620Ω with low coil power consumption of 290mW. High switching AC voltage capability of 440V and DC voltage of 125V.

RoHS compliant, environmentally friendly product. Plastic sealed and flux proofed construction, providing protection and longevity.

This product is ideal for industrial automation, manufacturing equipment, electrical system control, and other commercial electronic installations requiring durable and reliable power relay components. Available in PCB mount format, it ensures straightforward assembly within complex circuit designs.
