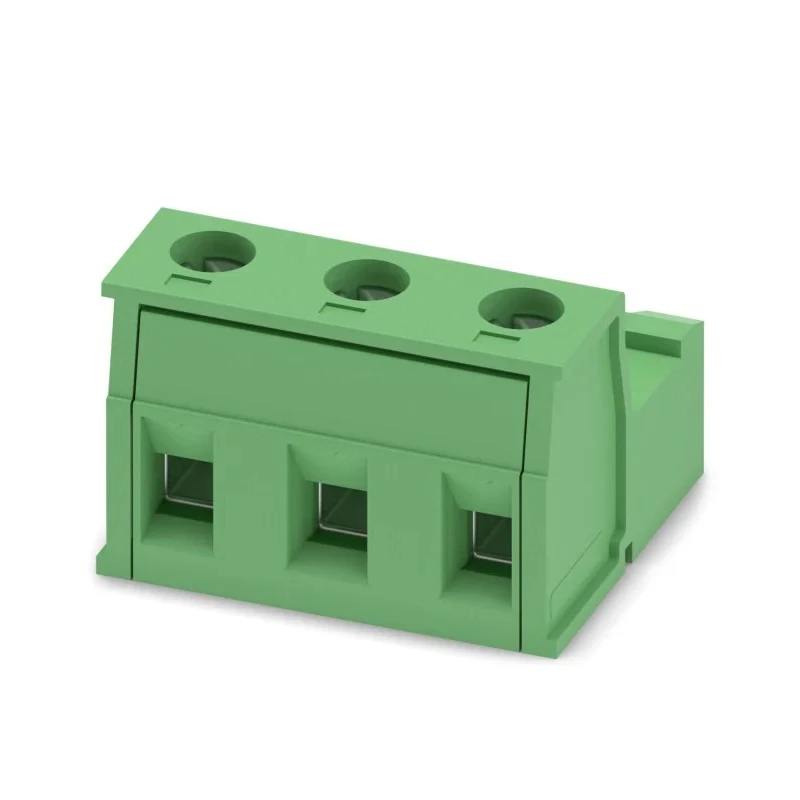

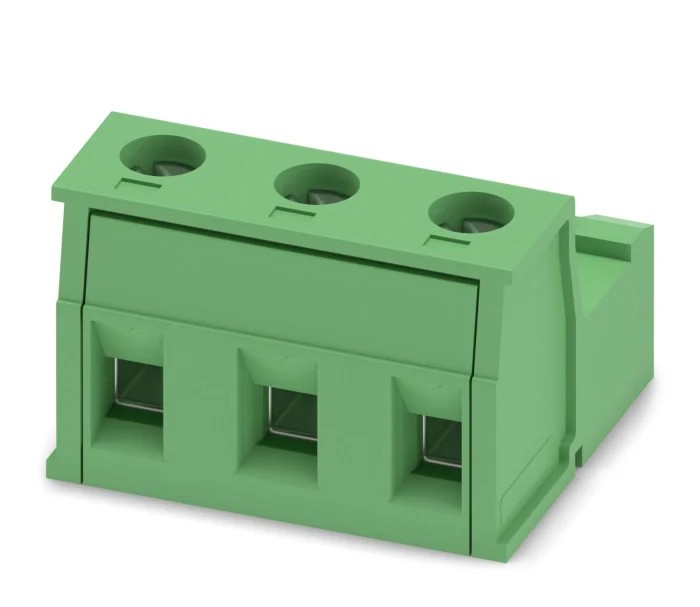

Phoenix Contact GIC 2.5/3-ST-7.62 Series Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, 12A, 1kV 1828812
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 15.14mm |
| Model | 1828812 |
| Depth | 15mm |
| Width | 22.76mm |
| Housing Material | Polyamide |
| Series | GIC 2.5/3-ST-7.62 |
| Number of Rows | 1 |
| Pitch | 7.62mm |
| Number of Contacts | 3 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw |
| PCB connector, nominal current | 12 A, rated voltage (III/2): 630 V, number of positions: 3, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, colour: green, contact surface: Tin |
Key Features
- The terminal block supports up to 12 amperes of nominal current for dependable performance.
- It features a 1 kV rated voltage suitable for various PCB applications.
- The connection method uses screw terminals with a tension sleeve ensuring secure wire fixation.
- Suitable for wire sizes from 24 AWG to 12 AWG (0.14 mm² to 0.2 mm²).
- The housing is made from durable polyamide material with a green color for easy identification.
- The terminal block has a straight orientation and compact dimensions perfect for constrained spaces.
- Designed with tin-plated contact surfaces to improve conductivity and corrosion resistance.
- Its series identification is GIC 2.5/3-ST-7.62, featuring one row with three positions.
Product Description
Phoenix Contact 1828812 is a GIC 2.5/3-ST-7.62 Series Pluggable Terminal Block designed for electronic and industrial PCB connector applications. It offers 3 contacts arranged in a single row with a 7.62 mm pitch, ensuring compatibility with a wide range of PCB mounting requirements. This component is rated for a nominal current of 12 A and a voltage of up to 1 kV, making it suitable for demanding electrical environments.
The terminal block uses a screw connection method with a tension sleeve, providing secure and robust wire retention. It accommodates wire sizes from 0.14 mm² to 0.2 mm² (24 AWG to 12 AWG) and comes with tin-plated contact surfaces to enhance conductivity and protect against corrosion. Its green polyamide housing is both durable and easy to identify within assemblies.
Its compact form factor, with dimensions of 15.14 mm length, 22.76 mm width, and 15 mm depth, enables installation in tight spaces. The straight orientation of the connector further facilitates efficient wiring in PCB layouts.
This product, manufactured in Germany, complies with necessary industrial quality standards but has no specific certifications listed. It is ideally suited for use in electronic device manufacturing, industrial control systems, HVAC equipment, and other commercial or industrial electrical assemblies requiring reliable pluggable terminal connections.
The terminal block supports up to 12 amperes within a rated voltage of 1 kV. Screw connection with tension sleeve provides strong wire retention. Compatible with wire sizes from 24 AWG to 12 AWG (0.14 mm² to 0.2 mm²). Green polyamide housing ensures robust insulation and easy identification.
Tin-plated contact surfaces enhance electrical conductivity and corrosion resistance. Compact dimensions: 15.14 mm (L) x 22.76 mm (W) x 15 mm (D). Suitable for various industrial, commercial, and electronic PCB applications.
Manufactured in Germany, ensuring high quality standards. Explore our extensive range of Phoenix Contact Pluggable Terminal Blocks and connectors at EnvMart for industrial and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a nominal current of up to 12 amperes.
The terminal block has a rated voltage of 1 kV, suitable for various PCB applications.
It accommodates wire sizes from 24 AWG to 12 AWG, or 0.14 mm² to 0.2 mm².
The connection method uses screw terminals with a tension sleeve to ensure secure wire fixation.
The dimensions are 15.14 mm in length, 22.76 mm in width, and 15 mm in depth.
The housing is made from polyamide material, which is green in color for easy identification.
It features three contacts arranged in a single row.
The pitch of this connector is 7.62 mm, ensuring compatibility with various PCB mounting requirements.
It is designed for use in electronic device manufacturing, industrial control systems, and HVAC equipment.
The connector has a straight orientation, facilitating efficient wiring in PCB layouts.
It is manufactured in Germany, ensuring adherence to industrial quality standards.
The contacts are tin-plated, which improves electrical conductivity and provides corrosion resistance.
