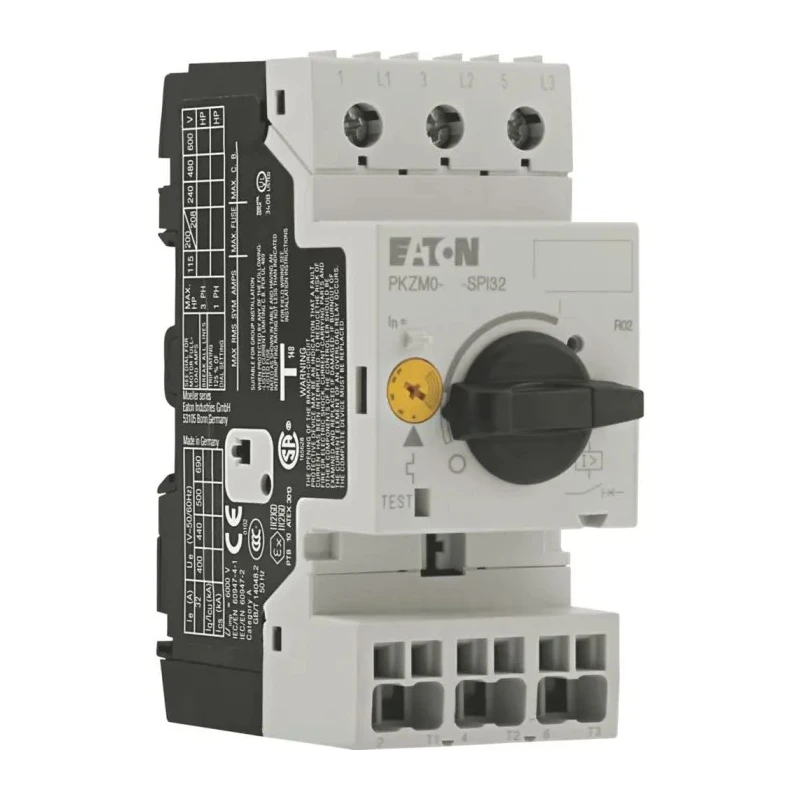

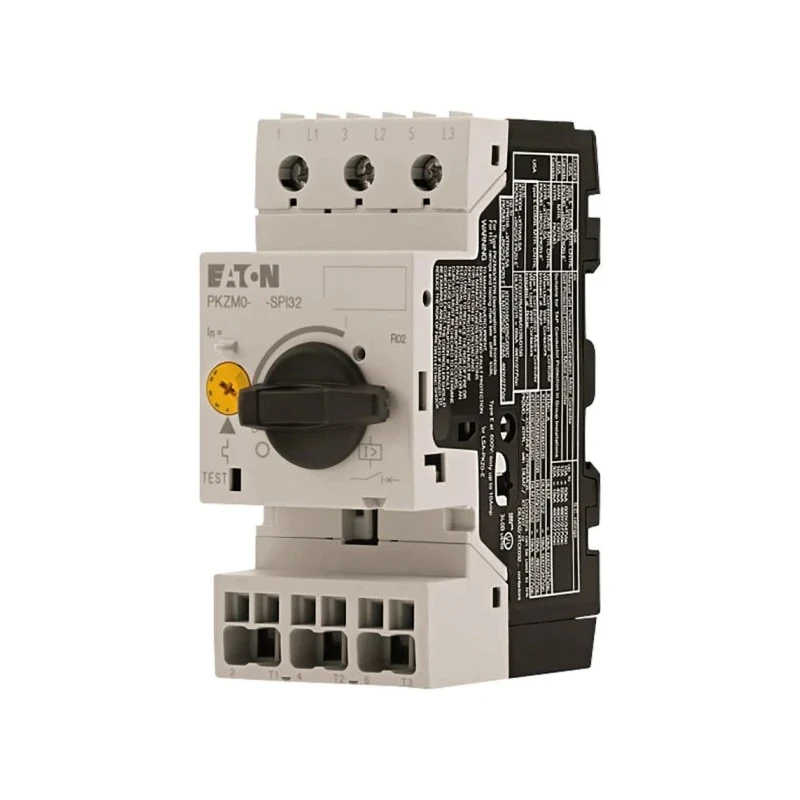

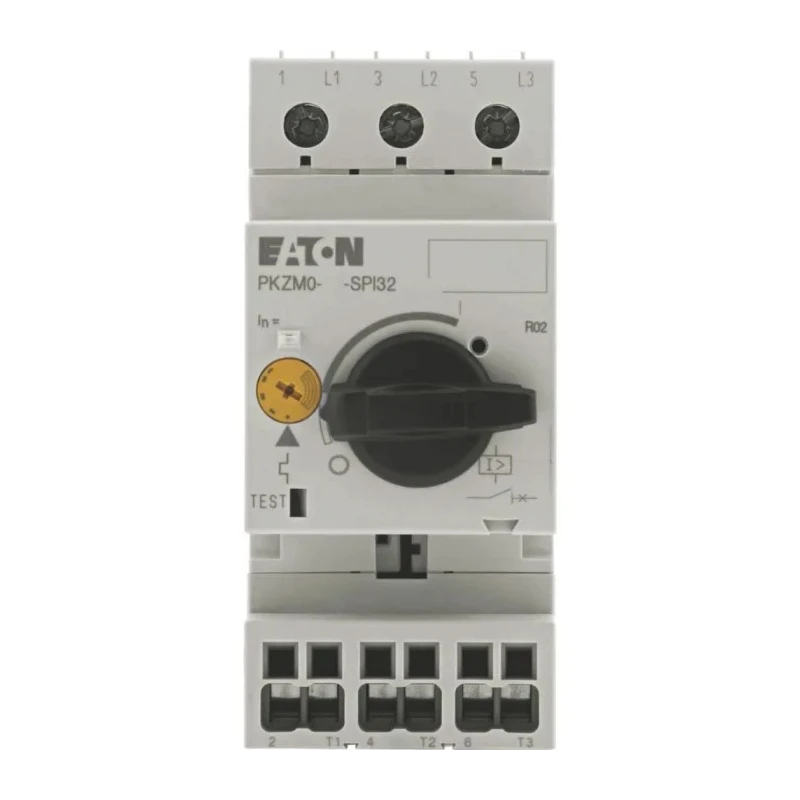

Eaton 4A Motor Protection Circuit Breaker, 690V Supply Voltage, IP20, -25°C to 55°C 199196 PKZM0-4-SPI32
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 199196 PKZM0-4-SPI32 |
| IP Rating | IP20 |
| Overall Length | 75mm |
| Current Rating | 4A |
| Series | PKZM 0 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Overall Depth | 75mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Starter Combination |
Key Features
- Designed for motor overload and short circuit protection in industrial environments.
- Three-pole configuration suits various motor types with efficiency class IE3 compatibility.
- Phase-failure sensitivity enhances motor operational safety.
- Screw terminals on feed side and push-in terminals on output enable installation flexibility.
- Mountable on IEC/EN 60715 top-hat rails for easy integration.
- IP20 rating protects against solid objects in diverse working conditions.
- Operates reliably between -25°C and 55°C ambient temperatures.
- Durable design supports 100,000 electrical and mechanical operations.
Product Description
Eaton 199196 PKZM0-4-SPI32 Motor Protection Circuit Breaker is engineered for industrial motor protection, offering a current rating of 4A and a supply voltage of 690V. This device safeguards motors from overloads and short circuits, ensuring safety and operational reliability in mechanical and electrical systems.
Featuring a robust three-pole design, it is compatible with motors of efficiency class IE3, including high-efficiency applications. The breaker includes phase-failure sensitivity for enhanced motor protection and utilizes screw terminals on the feed side along with push-in terminals on the output side, providing flexible installation options.
It can be mounted easily onto standard IEC/EN 60715 top-hat rails. Rated IP20, the unit is protected against solid objects, making it suitable for various environmental conditions, with operation guaranteed between -25°C and 55°C ambient temperatures.
Designed for a lifespan of 100,000 electrical and mechanical operations, it offers a high breaking capacity of up to 150 kA, ensuring resilient performance under fault conditions. The product complies with RoHS standards, supporting sustainable industrial practices.
Commonly used with motor starter combinations, this motor protection circuit breaker fits branch circuits and group installations, making it ideal for electrical protection in industrial plants, automation, manufacturing, and HVAC systems. Its reliability and comprehensive features help maintain continuous production and safeguard critical equipment.
Designed for motor overload and short circuit protection in industrial environments. Three-pole configuration suits various motor types with efficiency class IE3 compatibility. Phase-failure sensitivity enhances motor operational safety.
Screw terminals on feed side and push-in terminals on output enable installation flexibility. Mountable on IEC/EN 60715 top-hat rails for easy integration. IP20 rating protects against solid objects in diverse working conditions.
Operates reliably between -25°C and 55°C ambient temperatures. Durable design supports 100,000 electrical and mechanical operations. High breaking capacity ensures protection against electrical faults up to 150 kA. RoHS compliant, suitable for automated production environments.
Explore more Motor Protection Circuit Breakers and automation control gear at EnvMart for safe and efficient industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 4A.
It operates at a supply voltage of 690V.
This unit has an IP20 rating, which protects against solid objects.
It can operate reliably between -25°C and 55°C.
The device features a three-pole configuration.
It has a high breaking capacity of up to 150 kA.
It utilizes screw terminals on the feed side and push-in terminals on the output side for flexible installation.
Yes, it complies with RoHS standards.
The overall dimensions are 75mm in length, 45mm in width, and 75mm in depth.
It is ideal for use in motor starter combinations, branch circuits, and group installations in industrial environments.
The country of origin for this model is Germany.
It is designed to support 100,000 electrical and mechanical operations.
