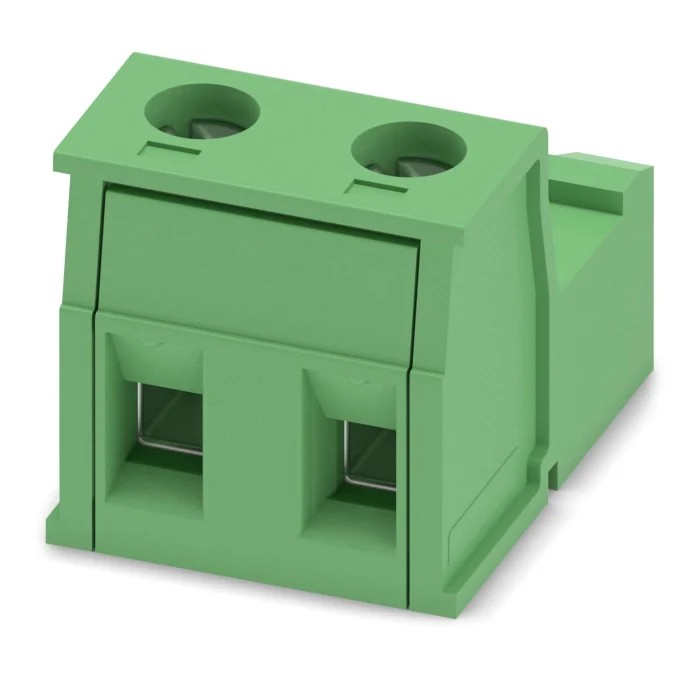

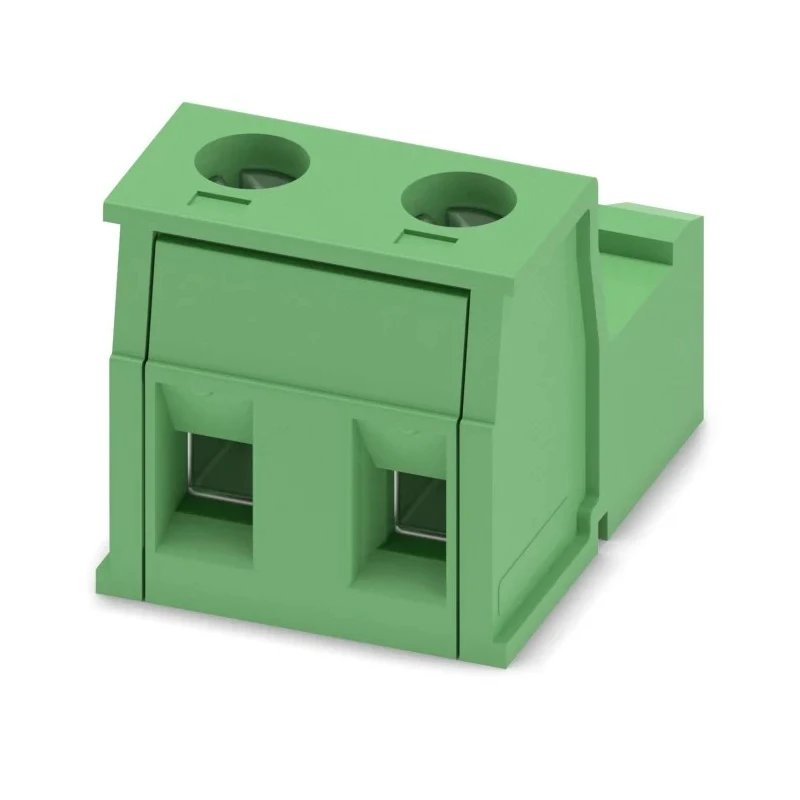

Phoenix Contact Pluggable Terminal Block 2-Contact 7.62 mm Pitch 1 Row 12A 630V Polyamide Housing Male Connector GIC 1828809
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 630V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 19.1mm |
| Model | 1828809 |
| Depth | 15mm |
| Width | 15.14mm |
| Housing Material | Polyamide |
| Series | GIC 2.5/2-ST-7.62 |
| Number of Rows | 1 |
| Pitch | 7.62mm |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw |
| PCB connector, nominal current | 12 A, rated voltage (III/2): 630 V, number of positions: 2, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, colour: green, contact surface: Tin |
Key Features
- This terminal block supports a nominal current of 12 A and a rated voltage of 630 V (III/2).
- Constructed with a polyamide housing that offers robust insulation and durability.
- Includes male connector gender and screw connection method with tension sleeve for safe wiring.
- Supports wire sizes from 0.14 mm² to 0.2 mm² (24 AWG to 12 AWG).
- The connector measures 19.1 mm in length, 15.14 mm in width, and has a depth of 15 mm.
- The green color coding assists in easy identification and organization.
- This product is manufactured in Germany, ensuring high quality standards.
Product Description
Phoenix Contact 1828809 is a high-quality pluggable terminal block designed for electronic and electrical connector applications requiring reliable screw terminal connections on PCB assemblies. It provides 2 contacts arranged in 1 row with a pitch of 7.62 mm, ensuring compatibility with standard PCB layouts.
The terminal block supports a nominal current of 12 A and can withstand a rated voltage of 630 V (III/2), making it suitable for various industrial, commercial, and laboratory electronic circuits. Its housing is made of polyamide, a durable and insulating material that helps maintain electrical safety and resilience under operational demands.
The connection method employs screw terminals with a tension sleeve, assuring secure wire contact and resistance to vibration or loosening over time. The male connector gender facilitates straightforward mating in terminal pairs or modules.
This product accepts wire cross-sections from 0.14 mm² up to 0.2 mm² (equivalent to 24 to 12 AWG), covering a range of wiring thicknesses for flexible electrical design. Physically, it measures 19.1 mm in length, 15.14 mm width, and 15 mm depth, with a green color finish for visual distinction in assemblies.
Manufactured in Germany, the 1828809 terminal block adheres to international quality standards though it does not list specific approvals or certifications like RoHS. Its tin-plated contact surfaces also enhance corrosion resistance and electrical conductivity.
Nominal current: 12 A, rated voltage: 630 V (III/2). 2-contact, single-row configuration with 7.62 mm pitch. Polyamide housing with screw connection using tension sleeve. Accepts wire sizes 0.14 - 0.2 mm² (24 - 12 AWG). Dimensions: 19.1 mm length, 15.14 mm width, and 15 mm depth.
Green color for easy identification. Made in Germany ensuring premium quality and reliability.
This terminal block is ideal for use in electronics manufacturing, circuit prototyping, industrial control panels, and other electrical interface points requiring reliable and maintainable connections. Environmentally conscious customers appreciate the sustainability aspects of polyamide materials and European manufacturing.
Explore more high-quality Pluggable Terminal Blocks and related components within the Electronics & Electricals category at EnvMart for extensive options suited to your precise technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a nominal current of 12 A and a rated voltage of 630 V (III/2).
It features a pitch of 7.62 mm and has a single-row configuration with 2 contacts.
This terminal block accepts wire sizes from 0.14 mm² to 0.2 mm², which corresponds to 24 AWG to 12 AWG.
The connection method employed is screw terminals with a tension sleeve, ensuring secure wire contact.
The terminal block measures 19.1 mm in length, 15.14 mm in width, and has a depth of 15 mm.
The housing is constructed from polyamide, which provides robust insulation and durability.
It is colored green, which assists in easy identification and organization in assemblies.
This product is manufactured in Germany, adhering to high quality standards.
This terminal block belongs to the GIC 2.5/2-ST-7.62 series.
It is suitable for various industrial, commercial, and laboratory electronic circuits requiring reliable screw terminal connections.
The tin-plated contact surfaces enhance corrosion resistance and electrical conductivity, improving overall performance.
