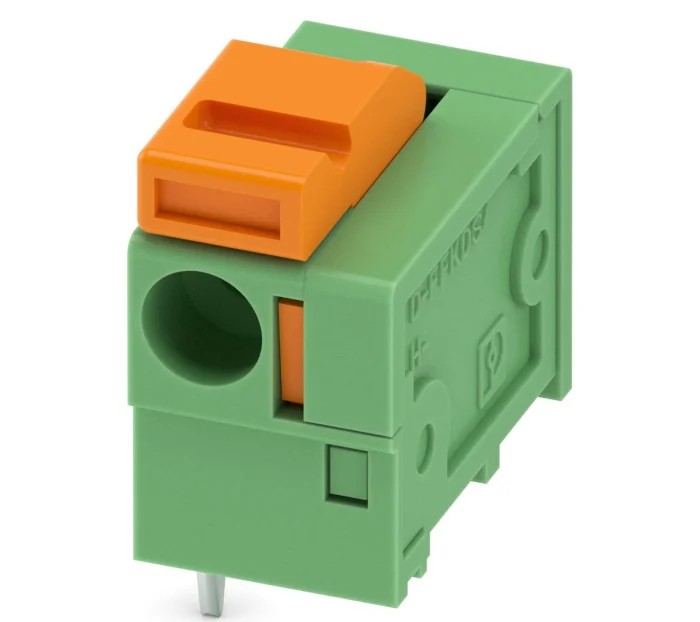

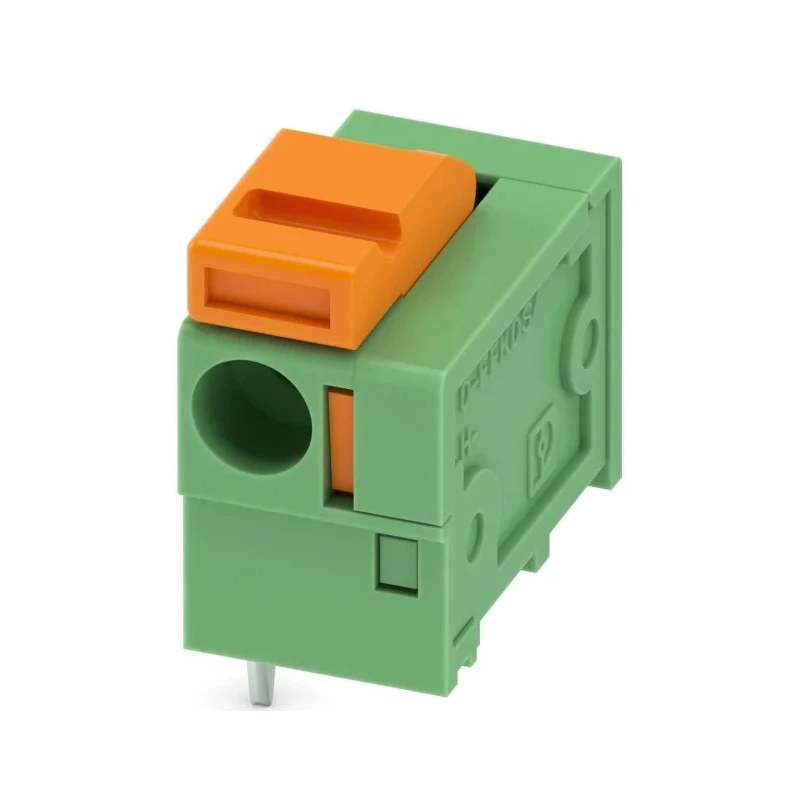

Phoenix Contact PCB Terminal Block /H1-7.62 Series Straight Through Hole, 1 Contact, 7.62 mm Pitch, 17.5 A Current FFKDSA1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 630V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 17.5A |
| Model | FFKDSA1 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Series | FFKDSA1/H1-7.62 |
| Number of Rows | 1 |
| Pitch | 7.62mm |
| Number of Contacts | 1 |
| PCB Terminal block, nominal current | 17.5 A, nom. voltage: 320 V, pitch: 7.62 mm, number of positions: 1, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, colour: green. End Terminal Block for terminating custom-grouped Blo |
Key Features
- The terminal block features a polyamide housing material ensuring durability and insulation.
- It has a single row layout with one contact for compact PCB designs.
- The mounting type is through hole, suitable for wave soldering processes.
- The connection method is push-in spring connection allowing easy conductor insertion.
- This component is green in color, ideal for end terminal block of custom-grouped blocks.
- Nominal voltage is 320 V with a maximum voltage rating of 630 V.
- The conductor and PCB connection direction is 0 degrees, providing straightforward wiring.
Product Description
Phoenix Contact FFKDSA1 PCB Terminal Block from the H1-7.62 Series offers reliable, high-quality electrical connections with a nominal current rating of 17.5 A and nominal voltage of 320 V. It features a 7.62 mm pitch and 1 contact position arranged in a single row, making it compact for various electronic and electrical assembly applications.
The terminal block is designed with a polyamide housing for durable insulation and robustness. It utilizes a push-in spring connection method for efficient and secure conductor attachment, ideal for industrial and manufacturing environments. The mounting is through hole, suitable for wave soldering onto PCBs, ensuring firm mounting stability. The 0-degree conductor/PCB connection direction allows for neat and organized wiring layouts.
This PCB terminal block is green, serving well as an end terminal block to complete custom-grouped blocks in electrical distribution boards and control panels. It meets typical electrical component requirements but does not carry specific standards or approvals.
Applications include industrial control systems, electrical cabinets, automation equipment, instrumentation and measurement devices, HVAC systems, telecommunications terminals, and other commercial and industrial PCB interconnections requiring reliable current carrying capacity and voltage ratings.
The terminal block features a polyamide housing material ensuring durability and insulation. It has a single row layout with one contact for compact PCB designs. The mounting type is through hole, suitable for wave soldering processes.
The connection method is push-in spring connection allowing easy conductor insertion. This component is green in color, ideal for end terminal block of custom-grouped blocks. Nominal voltage is 320 V with a maximum voltage rating of 630 V.
The conductor and PCB connection direction is 0 degrees, providing straightforward wiring.
Phoenix Contact offers industry-standard PCB Terminal Blocks suitable for enhancing connection integrity, safety, and ease of electrical assembly. Explore more products in PCB connectors and electrical components at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a nominal current rating of 17.5 A.
The maximum voltage rating is 630 V, with a nominal voltage of 320 V.
The pitch size is 7.62 mm, allowing for compact PCB designs.
It features one contact in a single row layout.
It utilizes a push-in spring connection method for easy conductor insertion.
The mounting type is through hole, suitable for wave soldering processes.
The conductor and PCB connection direction is 0 degrees, providing straightforward wiring.
The housing is made from polyamide, ensuring insulation and durability.
It is suitable for applications in industrial control systems, electrical cabinets, automation equipment, and telecommunications terminals.
This terminal block is green in color, making it suitable as an end terminal block for custom-grouped blocks.
The country of origin for this terminal block is India.
It belongs to the H1-7.62 series of PCB terminal blocks.
