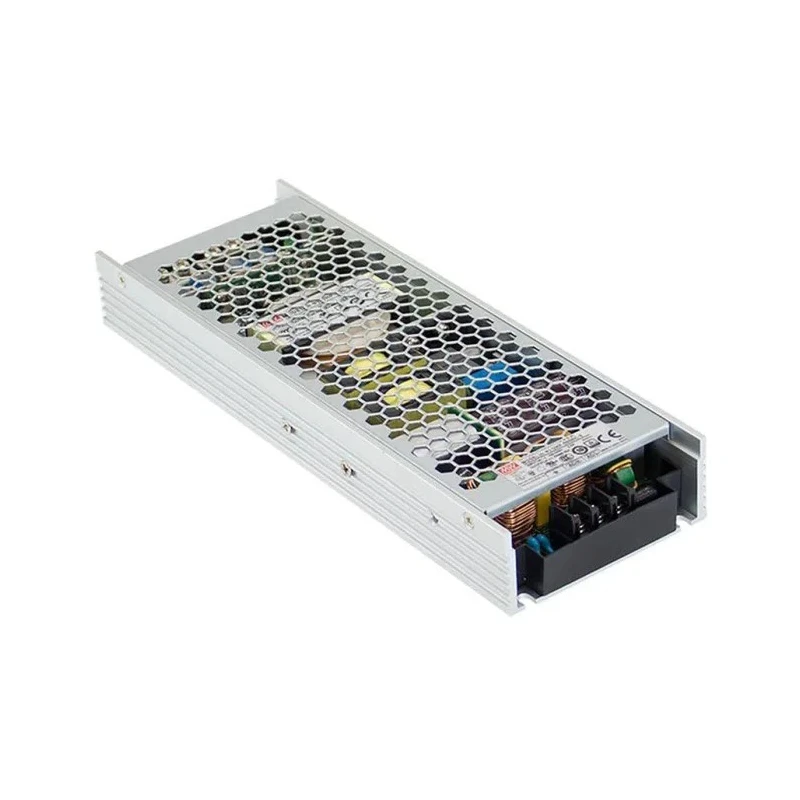

MEAN WELL 12V dc 500.4W Chassis Mount Switching Power Supply UHP-500R-12

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 12V dc 500.4W Chassis Mount Switching Power Supply UHP-500R-12

Name: MEAN WELL 12V dc 500.4W Chassis Mount Switching Power Supply UHP-500R-12
Brand: MEAN WELL
SKU: 151947



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	500.4W
Efficiency	94%
Length	232mm
Model	UHP-500R-12
Depth	31mm
Gross Weight	905g
Width	81mm
Mount Type	Chassis
Series	UHP-500R
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protections	Short circuit / Overload / Over voltage / Over temperature
Maximum Output Voltage	12V dc
SMPS Output Current	41.7A
Minimum Input Voltage	90V ac

Key Features

Provides a single output of 12V dc with 41.7A current capacity.
Equipped with fanless convection cooling and slim low profile design.
Includes protections for short circuit, overload, over voltage, and over temperature.
Operating temperature range from -20°C to 70°C suitable for harsh environments.
High efficiency of 94% with built-in active power factor correction function.
Supports input voltage range of 90V ac minimum up to 370V dc maximum.
Constructed to withstand 300VAC surge input for 5 seconds for added durability.
Includes DC OK active signal and optional redundant function for reliability.

Product Description

MEAN WELL UHP-500R-12 is a high-quality switching power supply delivering 12V dc output at 500.4W with a current output of 41.7A. Designed with a slim and low-profile chassis mount form factor, this power supply offers fanless convection cooling for silent operation and improved reliability in industrial environments.

It operates efficiently with a 94% efficiency rating and integrates an active power factor correction (PFC) function to reduce power consumption and increase stability. Built to endure harsh conditions, it withstands input surges of up to 300VAC for 5 seconds and functions within a wide temperature range from -20°C to 70°C, making it suitable for use in diverse industrial and electronic equipment.

The UHP-500R-12 includes multiple protections such as short circuit, overload, over voltage, and over temperature safeguards to ensure safety and longevity of connected devices. Additional features include a DC OK active signal for status monitoring and an optional redundancy function for uninterrupted power supply demands.

Typical applications encompass industrial automation machinery, control systems, mechanical and electrical equipment, electronic instruments, and LED display systems. Its compact size (232 mm length, 81 mm width, 31 mm depth) and a weight of approximately 905 grams support easy integration in various systems requiring reliable power performance.

Single output of 12V dc, 41.7A current. Fanless convection cooled, slim chassis mount design. Short circuit, overload, over voltage, and over temperature protections. Wide operating temperature range from -20°C to +70°C.

Built-in active power factor correction function for energy efficiency. Surge input voltage tolerance up to 300VAC for five seconds. DC OK signal and optional redundancy function included. Suitable for industrial automation, control, mechanical, and LED applications.

Compact dimensions and lightweight for versatile installation.

MEAN WELL power supplies are trusted for high performance and reliability, supporting demanding industrial and commercial power needs. Explore more power supply options at EnvMart for your electronic and automation projects.
