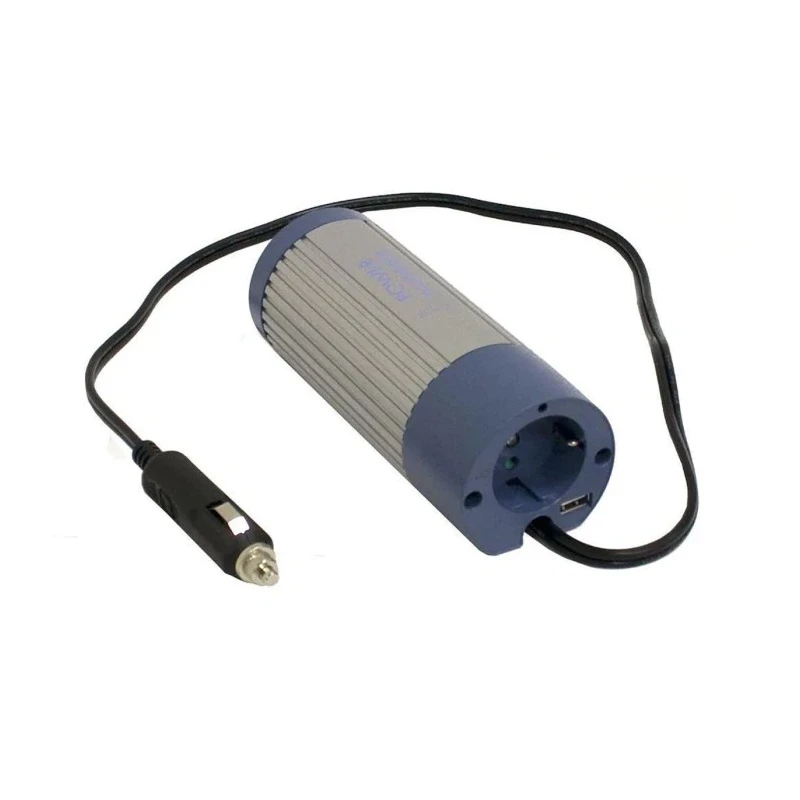

MEAN WELL 100W Power Inverter 24V DC Input 230V AC Output Modified Sine Wave A302-100-F3

MEAN WELL A302-100-F3 100W Power Inverter converts 24V DC input to 230V AC output providing reliable power for electronic devices and equipment. With a modified sine wave output, it supports diverse applications in automotive, industrial, and household sectors requiring stable AC power from DC sources.

Constructed with a slim profile, the inverter easily fits into vehicle cup holders, making it ideal for mobile and on-the-go power needs. It features a built-in USB interface to charge smartphones and other portable devices conveniently.

This inverter delivers an output power of 100W with an output current of 15A and a single cigarette plug connector. It maintains high efficiency up to 90%, reducing energy losses during operation.

Designed for durability and safety, the device operates reliably within 0°C to 40°C. It includes multiple protection mechanisms such as over voltage protection, reverse polarity input protection, output short circuit protection, fuse open shut off, and over temperature shutdown to prevent damage and ensure longevity.

The microprocessor-controlled topology enhances the precision and performance of this compact inverter. Input voltage can fluctuate within -15% to +25% tolerance around 24V DC, accommodating typical variations in vehicle power supply systems.

Measuring 170mm in length, 65mm in width, and 60mm in depth, and weighing approximately 550g, this power inverter is lightweight and compact for ease of installation and portability.

Standards compliance includes EN61000-4-2, EN60950-1, 2006/96/CE, EN55022 Class B, and 72/245/CEE, ensuring electromagnetic compatibility and safety. Package does not specify additional accessories; the unit is supplied as a standalone power inverter.

This MEAN WELL inverter is an excellent solution for converting 24V DC automotive or solar battery power to standard mains voltage for powering AC equipment in various industrial, commercial, and mobile applications.

Browse more Power Inverters and related products in the Electronics & Electricals category at EnvMart. Built-in USB interface for convenient charging options. High efficiency of up to 90% ensures energy-saving performance.

Compact slim size designed to fit vehicle cup holders. Multiple protection features including over voltage, reverse polarity, and overtemperature shutdown. Operates within a temperature range of 0°C to 40°C for reliable use.

Features microprocessor topology for precise control. Output current rated at 15A with a single output connector (cigarette plug). Input voltage range tolerance from -15% to +25% of nominal 24V DC. Suitable for automotive and industrial 24V DC to 230V AC power conversion applications.
