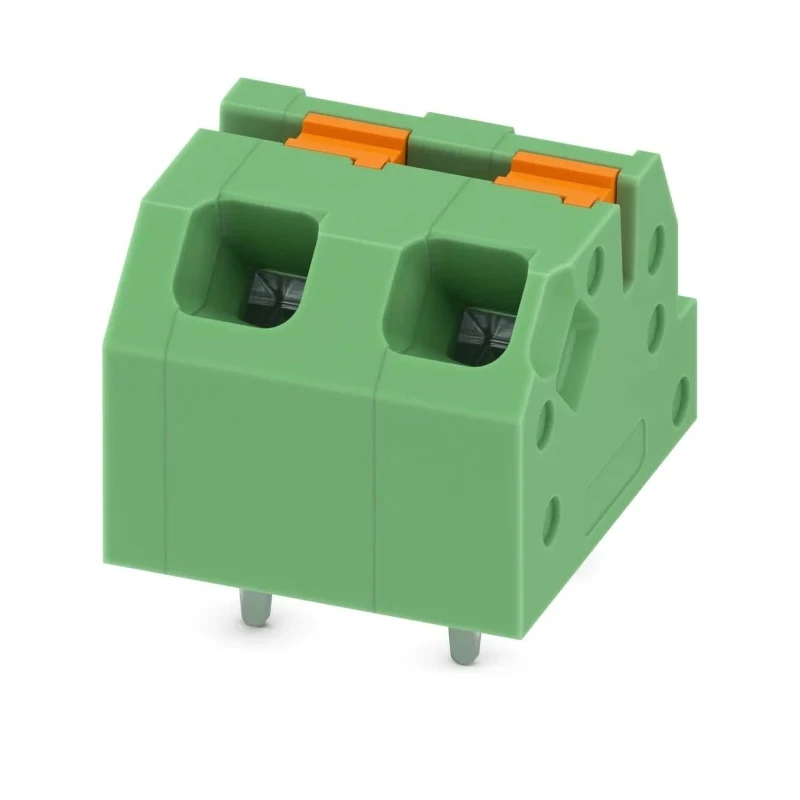

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block 5 mm Pitch 16 A 320 V 2 Contacts 1 Row 1862275
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 16A |
| Model | 1862275 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 2-5.0-IL |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | EU RoHS, cULus Recognised |
| Number of Contacts | 2 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 2, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, colour: green |
Key Features
- Constructed of durable polyamide housing for long-lasting use.
- Supports nominal current of 16 A and nominal voltage of 320 V.
- Features push-in spring connection for secure conductor attachment.
- Designed with a 45-degree angled conductor/PCB connection direction.
- Complies with EU RoHS and is cULus recognised standards.
- Suitable for wave soldering mounting methods.
- Compact design facilitates efficient PCB integration with 5 mm pitch spacing.
- Color coded green to aid identification in assemblies.
Product Description
Phoenix Contact 1862275 is an angled wave soldering mount PCB terminal block designed to provide reliable and efficient electrical connectivity in electronic assemblies. It features a 5 mm pitch spacing and comprises 2 contacts arranged in a single row, making it suitable for compact PCB applications.
The housing material is polyamide, ensuring durability and resistance to physical and thermal stresses. This terminal block supports a nominal current rating of 16 A and a nominal voltage rating of 320 V, appropriate for various industrial and commercial electronic applications.
The connection method uses a push-in spring mechanism that facilitates quick and secure conductor attachment without the need for screws, improving assembly efficiency. The 45-degree angled conductor/PCB connection aids in space-saving and flexibility in PCB layout design.
The product meets EU RoHS directives and is recognised under cULus standards, ensuring compliance with international safety and environmental regulations. The green color coding helps in easy identification during installation and maintenance.
This terminal block is engineered for wave soldering mount, supporting automated PCB assembly lines with reliable solder joints. It is manufactured in Poland, reflecting quality and precision engineering standards.
Durable polyamide housing for enhanced longevity. Nominal current of 16 A and voltage of 320 V support diverse applications. Push-in spring connection enables quick and secure wiring. Angled 45-degree conductor/PCB connection optimizes PCB layout.
Compliant with EU RoHS and cULus recognised standards. Wave soldering suitable for automated assembly processes. Green color for visual identification during assembly.
This angled PCB terminal block is ideal for use in electronics manufacturing, industrial control equipment, and power distribution systems where reliable and compact connections are essential. Explore more PCB Terminal Blocks and related components on EnvMart for efficient and quality electronics assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a nominal current rating of 16 A and a nominal voltage rating of 320 V.
The terminal block features a pitch size of 5 mm, suitable for compact PCB applications.
It utilizes a push-in spring connection method, allowing for quick and secure conductor attachment without screws.
The conductor connection direction is angled at 45 degrees, which helps optimize PCB layout.
It complies with EU RoHS directives and is recognised under cULus standards, ensuring safety and environmental compliance.
The terminal block is manufactured in Poland, reflecting quality engineering standards.
It features 2 contacts arranged in a single row, making it suitable for various applications.
The housing is constructed from durable polyamide, providing resistance to physical and thermal stresses.
This model is designed for wave soldering mounting methods, ideal for automated PCB assembly.
It is color coded green to aid in easy identification during installation and maintenance.
This terminal block is part of the SPTAF 1/ 2-5.0-IL series.
It is suitable for use in electronics manufacturing, industrial control equipment, and power distribution systems.
