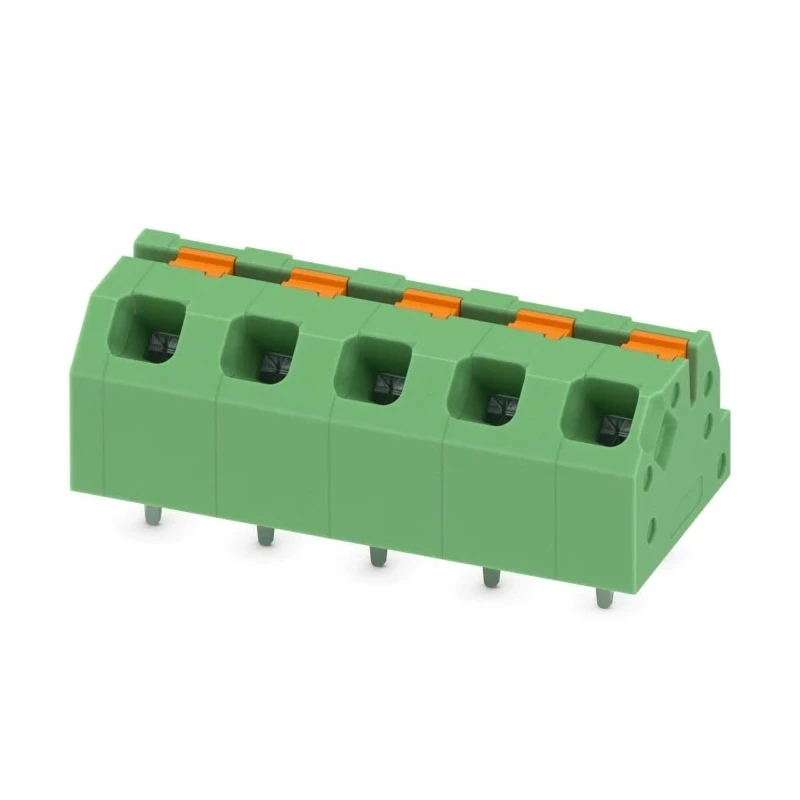

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block, 5 Contacts, 5 mm Pitch, 16A, 320V, Polyamide 1862301

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block, 5 Contacts, 5 mm Pitch, 16A, 320V, Polyamide 1862301

Name: Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block, 5 Contacts, 5 mm Pitch, 16A, 320V, Polyamide 1862301
Brand: PHOENIX CONTACT
SKU: 151719



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	320V
Brand	Phoenix Contact
Orientation	Angled
Current	16A
Model	1862301
Mount Type	Wave Soldering Mount
Housing Material	Polyamide
Series	SPTAF 1/ 5-5.0-IL
Number of Rows	1
Pitch	5mm
Standards/Approvals	cULus Recognised, EU RoHS
Number of Contacts	5
PCB Terminal block, nominal current	16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 4, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, colour: green

Key Features

Nominal current rating of 16 amperes ensures efficient power handling.
Operates at a nominal voltage of 320 volts suitable for multiple electronic applications.
Constructed with polyamide housing providing durability and electrical insulation.
Features a single row and angled orientation for optimized PCB mounting.
Utilizes push-in spring connection method for secure and quick wiring.
Mount type is compatible with wave soldering manufacturing processes.
Complies with cULus Recognised standards and is EU RoHS compliant ensuring safety and environmental adherence.
Manufactured in Germany ensuring high quality standards.

Product Description

Phoenix Contact 1862301 is an angled wave soldering mount PCB terminal block engineered to provide high reliability in electrical connections. It features 5 contact positions spaced at 5 mm pitch and is rated for a nominal current of 16 A and voltage of 320 V. The single row terminal block uses a durable polyamide housing that guarantees robust insulation and mechanical strength.

This terminal block incorporates a push-in spring connection mechanism allowing quick and secure conductor insertion. Its angled design and 45° conductor/PCB connection direction facilitate efficient PCB layout and assembly.

Mounting is designed for wave soldering processes, making it suitable for modern automated PCB manufacturing lines. The product meets both cULus Recognised and EU RoHS standards for compliance with safety and environmental regulations.

Ideal for use in various electronics and electrical applications requiring reliable terminal connection solutions, this terminal block is manufactured in Germany, ensuring top-tier quality and performance.

Nominal current rating of 16 amperes ensures efficient power handling. Operates at a nominal voltage of 320 volts suitable for multiple electronic applications. Constructed with polyamide housing providing durability and electrical insulation.

Features a single row and angled orientation for optimized PCB mounting. Utilizes push-in spring connection method for secure and quick wiring. Mount type is compatible with wave soldering manufacturing processes. Complies with cULus Recognised standards and is EU RoHS compliant ensuring safety and environmental adherence.

Manufactured in Germany ensuring high quality standards.

Suitable for applications in electronics manufacturing, circuit design, and power distribution systems, this terminal block supports high efficiency and durability requirements. Browse other PCB Terminal Blocks and components from Phoenix Contact on EnvMart to find complementary products.
