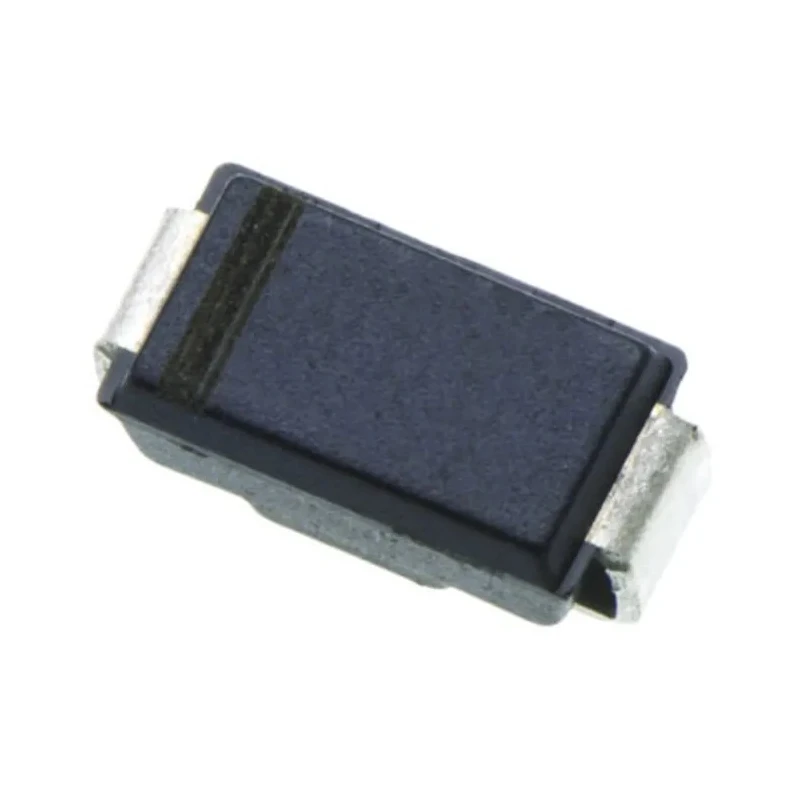

Bourns 1-Element Bi-Directional TVS Diode 400 W, 2-Pin Surface Mount DO-214 Package SMAJ26CA-Q
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 2.08mm |
| Length | 4.5mm |
| Model | SMAJ26CA-Q |
| Width | 2.79mm |
| Mount Type | Surface |
| Series | SMA |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 42.1V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28.9V |
| Maximum Reverse Stand-off Voltage Vwm | 26V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Reverse Leakage Current | 1μA |
| Standoff Voltage | 12 to 58 volts |
Key Features
- The diode has a single-chip element configuration offering bi-directional voltage protection.
- Minimum breakdown voltage is rated at 28.9 volts ensuring reliable surge protection.
- Features a maximum reverse stand-off voltage of 26 volts for stable operation.
- Clamping voltage is specified at 42.1 volts to limit voltage spikes efficiently.
- Operates reliably within a temperature range from -55°C to 150°C.
- Equipped with ESD protection suitable for automotive and industrial environments.
- The surface mount package is compact with dimensions 4.5mm length, 2.79mm width, and 2.08mm height.
- Conforms to automotive standard AEC-Q101 ensuring high reliability.
Product Description
Bourns SMAJ26CA-Q is a 1-Element Bi-Directional Transient Voltage Suppressor Diode designed for robust surge and electrostatic discharge (ESD) protection in electronic circuits. Packaged in a compact DO-214 surface mount format, this device provides a peak pulse power dissipation of 400 W, suitable for protecting power buses, I/O interfaces, and sensitive electronic components from transient voltage spikes.
The diode configuration is single element and bi-directional, enabling symmetrical voltage suppression in both directions. It has a minimum breakdown voltage of 28.9 V and a maximum reverse stand-off voltage of 26 V, with a clamping voltage of 42.1 V to efficiently clamp transient surges well within safe operating limits.
Designed for surface mount assembly, its physical dimensions are 4.5 mm length, 2.79 mm width, and 2.08 mm height, optimizing PCB space utilization. The device complies with the automotive industry standard AEC-Q101, making it suitable for demanding automotive electronics applications.
Operating temperature range extends from -55°C to 150°C, supporting industrial and harsh environment use. The fast response time of less than one picosecond ensures effective protection against sudden voltage transients. The device is ideal for use in automotive, telecommunications, computer, entertainment, comfort, and various industrial electronic equipment where transient voltage protection is critical.
The diode offers single-element, bi-directional transient voltage suppression. Manufactured to meet AEC-Q101 automotive reliability standards. Peak pulse power dissipation rating of 400 W supports robust surge handling. Operating temperature range from -55°C to 150°C suits harsh environments.
Compact DO-214 surface mount package for easy integration on PCBs. Minimum breakdown voltage of 28.9 V ensures precise voltage threshold. Clamping voltage of 42.1 V protects circuits from damaging spikes. Designed for protecting power buses and I/O interfaces from transient surges.
Fast transient response time less than 1 picosecond ensures immediate protection.
Bourns products are trusted components in the electronics industry. Explore more high-quality semiconductor devices and TVS Diodes on EnvMart to enhance your design and reliability needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is rated at 400 W, making it suitable for protecting circuits from transient voltage spikes.
The minimum breakdown voltage is rated at 28.9 V, ensuring reliable surge protection for connected circuits.
The clamping voltage is specified at 42.1 V, which helps to limit voltage spikes effectively during transient events.
It operates reliably within a temperature range from -55°C to 150°C, making it suitable for harsh environments.
This model has dimensions of 4.5 mm in length, 2.79 mm in width, and 2.08 mm in height, allowing for compact PCB integration.
It features a single-element, bi-directional configuration, allowing for symmetrical voltage suppression in both directions.
The device conforms to the automotive standard AEC-Q101, ensuring high reliability for automotive applications.
The maximum reverse stand-off voltage is rated at 26 V, providing stable operation under various conditions.
The maximum reverse leakage current is specified at 1 μA, which indicates low leakage during operation.
The test current is set at 1 mA, which is used for evaluating the diode's performance under specified conditions.
This model is designed for surface mount assembly, facilitating easy integration onto printed circuit boards.
It is ideal for protecting power buses, I/O interfaces, and sensitive electronic components in automotive, telecommunications, and industrial applications.
