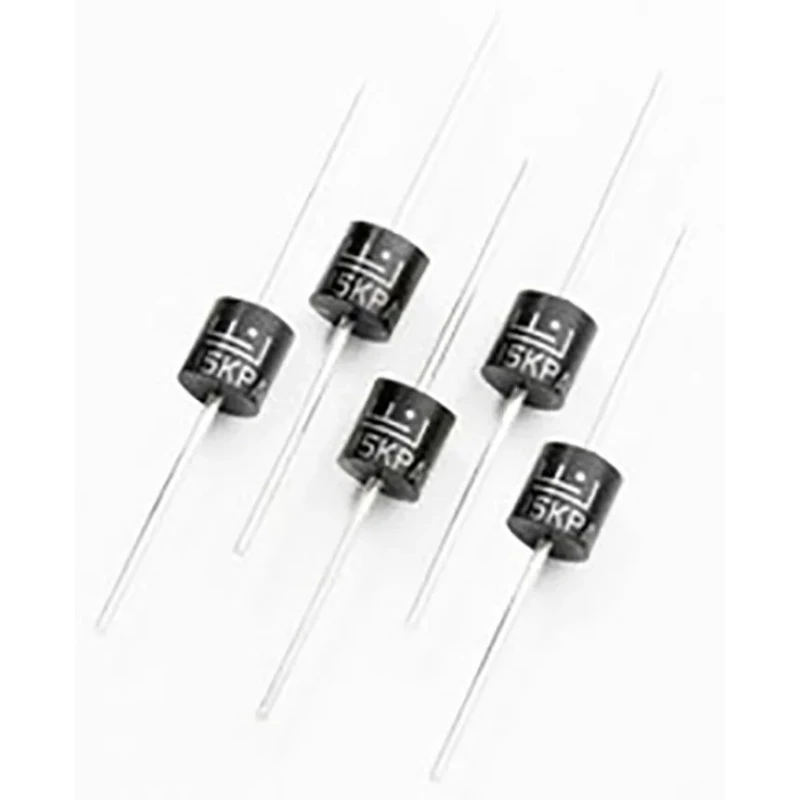

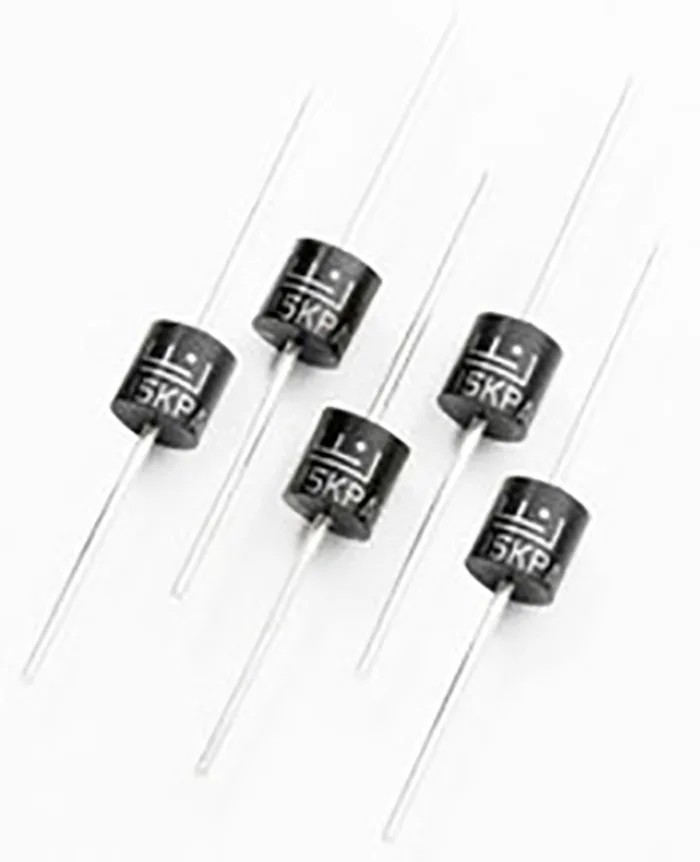

Littelfuse 1-Element Bi-Directional TVS Diode 15 kW, 2-Pin P600 Package 15KPA36CA

Free Delivery in India | Lowest Global Shipping Charges

Littelfuse 1-Element Bi-Directional TVS Diode 15 kW, 2-Pin P600 Package 15KPA36CA

Name: Littelfuse 1-Element Bi-Directional TVS Diode 15 kW, 2-Pin P600 Package 15KPA36CA
Brand: LITTELFUSE
SKU: 150891
Price: 17.01 USD
Availability: InStock



Category TVS Diode Brand LITTELFUSE Condition New

Specifications

Country of Origin	Taiwan
Diameter	9.1mm
Brand	Littelfuse
Length	9.1mm
Model	15KPA36CA
Mount Type	Through Hole
Series	15KPA
Maximum Operating Temperature	175°C
Package Type	P600
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	59.8V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	40.2V
Maximum Reverse Stand-off Voltage Vwm	36V
Peak Pulse Power Dissipation Pppm	15kW
Test Current It	5mA
Maximum Peak Pulse Current Ippm	252.5A
Maximum Reverse Leakage Current	2μA
High temperature soldering guaranteed	265°C./10seconds/0.375"(9.5mm)leadlength,51bs.,(2.3kg)tension
Fast response time	typically less than1.0ps from 0 Volts to BV min

Key Features

This diode provides a peak pulse power dissipation of 15 kW.
It features a 2-pin P600 through-hole package for easy mounting.
Its minimum breakdown voltage is rated at 40.2 volts.
The diode offers ESD protection with a fast response time typically under 1.0 picosecond.
It operates reliably within a temperature range of -55°C to 175°C.
The device clamps voltage at 59.8 volts to protect sensitive circuits.
The maximum peak pulse current is 252.5 amperes.
This diode uses a single element bi-directional configuration.

Product Description

Littelfuse 15KPA36CA is a 1-element bi-directional TVS diode designed to protect sensitive electronic equipment from voltage transients caused by lightning and other transient voltage events. This device features a peak pulse power dissipation of 15 kilowatts and is housed in a 2-pin P600 through-hole package measuring 9.1 mm in diameter and length.

The diode exhibits a minimum breakdown voltage (Vbr) of 40.2 volts and a maximum reverse stand-off voltage (Vwm) of 36 volts. It is designed for reliable operation within a temperature range of -55°C to 175°C and offers ESD protection with a fast response time typically less than 1 picosecond. The device clamps transient voltages at 59.8 volts, ensuring excellent clamping capability to protect circuits from surges.

The maximum peak pulse current (Ippm) is rated at 252.5 amperes, and the device contains a single element per chip. It is halogen-free and features a glass passivated chip junction inside the P600 package. Additionally, the diode supports high-temperature soldering at 265°C for 10 seconds with a 0.375-inch (9.5 mm) lead length and lead tension of 51 lbs (2.3 kg).

This diode is ideal for use in industrial, electronic component manufacturing, telecommunications, and power supply protection applications. Its robust design and high power handling capability make it suitable for protecting sensitive electronic circuits in harsh environments.

This diode provides a peak pulse power dissipation of 15 kW. It features a 2-pin P600 through-hole package for easy mounting. Its minimum breakdown voltage is rated at 40.2 volts. The diode offers ESD protection with a fast response time typically under 1.0 picosecond.

It operates reliably within a temperature range of -55°C to 175°C. The device clamps voltage at 59.8 volts to protect sensitive circuits. The maximum peak pulse current is 252.5 amperes. This diode uses a single element bi-directional configuration.

The device diameter and length are both 9.1 mm. It is halogen-free and glass passivated for durability and safety. Explore Littelfuse TVS Diodes and related semiconductor components on EnvMart to enhance your circuit protection solutions.
