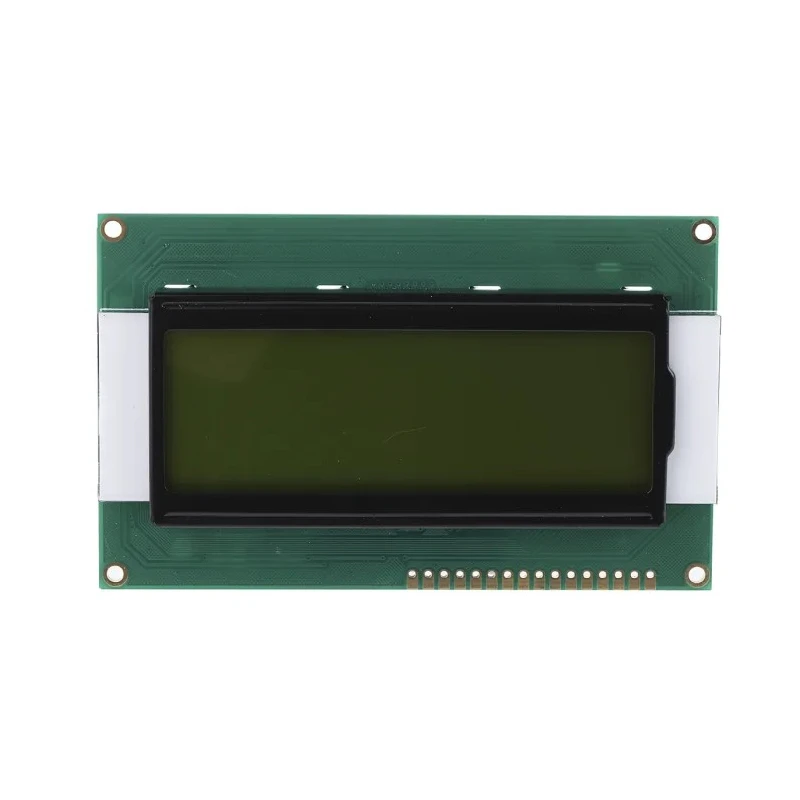

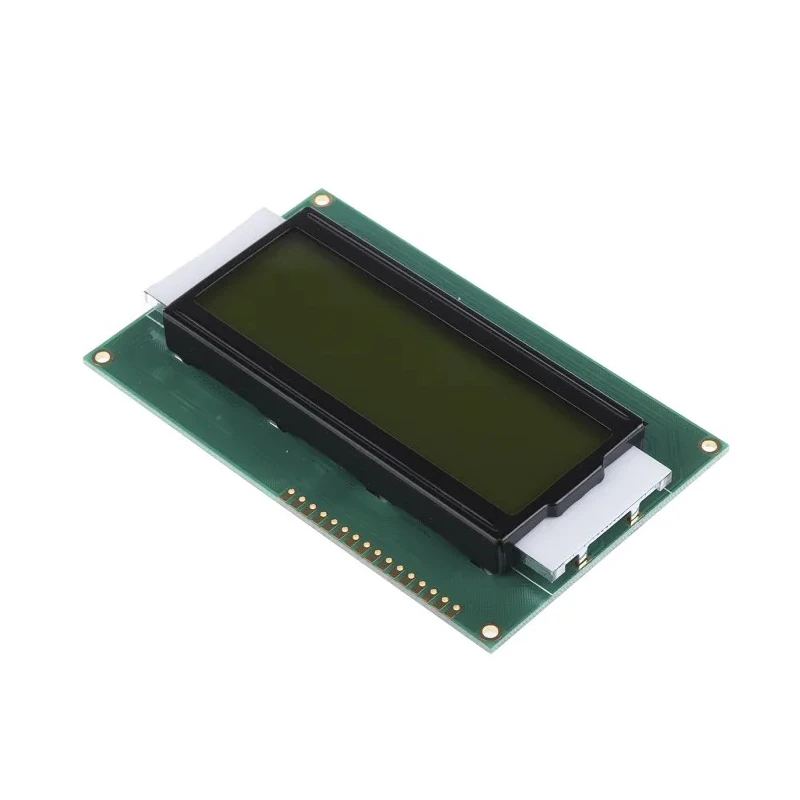

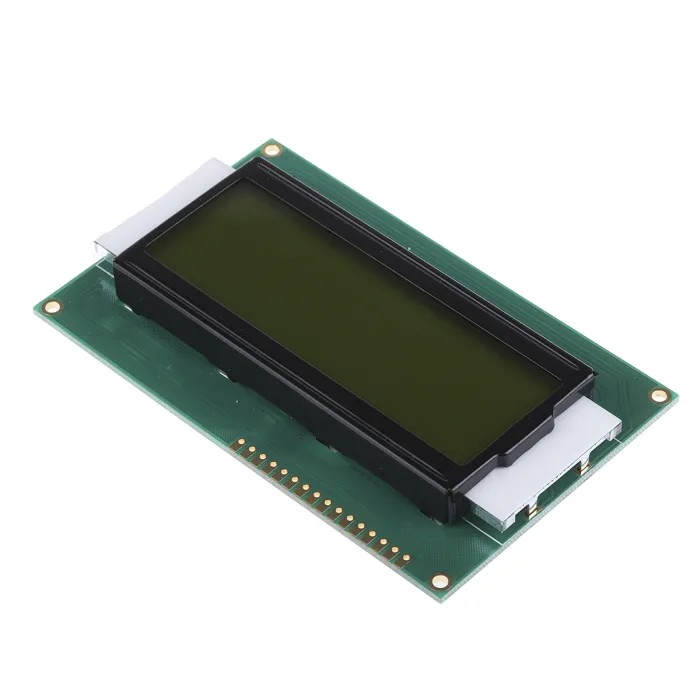

Fordata LCD Alphanumeric Display 4 x 20 Characters LED Backlight Green Yellow FC2004B01-FHYYBW-51SE
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Alphanumeric |
| Brand | Fordata |
| Model | FC2004B01-FHYYBW-51SE |
| Series | FC |
| Character height | 4.8mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 98mm |
| External Depth | 10.9mm |
| External Height | 60mm |
| Interface Type | 4 Bit |
| Standards/Approvals | RoHS |
| Character Width | 3mm |
| Illumination Colour | Green, Yellow |
| Viewing Area Dimensions | 76 x 25 mm |
| Backlight Type | LED |
| Character Matrix | 4 x 20 |
Key Features
- The display features a 4 bit interface for seamless integration.
- Viewing area measures 76 x 25 mm, providing clear text visibility.
- Character height is 4.8 mm with a width of 3 mm ensuring sharp alphanumeric presentation.
- Operating temperature ranges from -20°C to 70°C for versatile applications.
- The external dimensions are 98 mm width, 60 mm height, and 10.9 mm depth.
- LED backlight ensures excellent illumination with green and yellow colors.
- The built-in controller (SPLC780D or equivalent) simplifies control requirements.
- Complies with RoHS standards, ensuring environmental safety.
Product Description
Fordata FC2004B01-FHYYBW-51SE LCD Alphanumeric Display is a high-quality 4 x 20 character matrix LCD module featuring LED backlighting with vibrant green and yellow illumination over a green background.
This transflective STN LCD module utilizes advanced display matrix technology providing superior contrast and viewing angles between 180° and 270°, outperforming traditional TN displays which have limited viewing angles.
Operating at a low voltage of 5V, the passive-matrix monochrome display is energy-efficient, suitable for industrial, commercial, and laboratory electronic applications requiring text display.
Its robust built-in controller (SPLC780D or equivalent) facilitates easy communication via a 4 bit interface, making integration into various electronic circuits straightforward. The units' external dimensions are compact at 98 mm width, 60 mm height, and 10.9 mm depth, fitting well within typical display enclosures.
The character matrix consists of 4 rows and 20 characters (5 x 8 dots) with visible character height of 4.8 mm and width of 3 mm, ensuring clear and legible alphanumeric output. This display operates reliably within a temperature range of -20°C to 70°C, making it suitable for various environmental conditions.
The module is RoHS compliant, adhering to environmental and safety regulations. LED backlight colors are green and yellow, providing clear visibility even in low-light conditions. Common applications include industrial instrumentation, control panels, HVAC displays, and embedded system user interfaces.
Note: Reverse voltage connection can cause irreparable damage. Anti-static handling precautions are necessary to protect the module. These features make the Fordata FC2004B01-FHYYBW-51SE a reliable and efficient alphanumeric display for diverse electronic system requirements.
