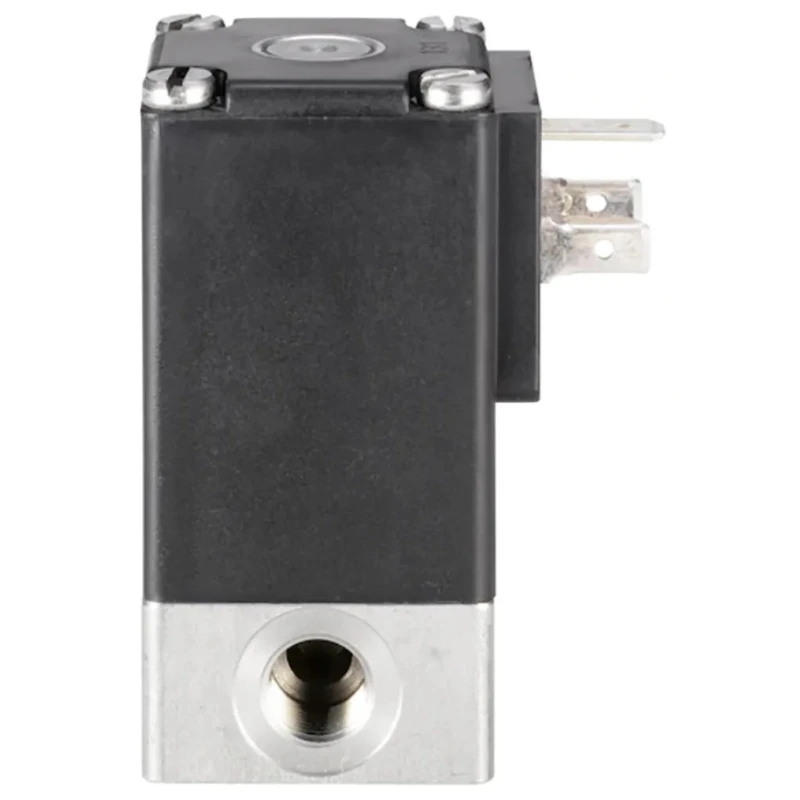

Burkert Direct-Acting 2 Port Normally Open Brass Body Solenoid Valve 230V AC 143492
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 8 bar |
| Inlet Connection Type | Muffe |
| Model | 143492 |
| Series | 0211 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 2.5mm |
| Supply Voltage | 230V ac |
| Standards/Approvals | GL, DVGW |
| Maximum Opening Time | 20ms |
| Flow Factor Kv | 0.16m³/h |
| Maximum Closing Time | 30ms |
Key Features
- The valve body is made of brass ensuring durability and corrosion resistance.
- It features a compact design suitable for flow diameters up to 2.5 mm.
- Maximum operating pressure is rated at 8 bar for versatile industrial use.
- The valve operates reliably between -10°C and 55°C temperature range.
- Maximum opening and closing times are 20 ms and 30 ms respectively for quick response.
- The valve features vibration-resistant block-screwed coil design for stability.
- Mounting is facilitated via four M4 x 8 mm tapped holes on the valve underside.
- Suitable for controlling neutral media in varied industrial and laboratory environments.
Product Description
Burkert 143492 is a direct-acting solenoid valve designed for precise fluid control with 2 ports and a normally open valve position. Operating at 230V AC, this valve is built with a robust brass body capable of withstanding up to 8 bar pressure. The valve supports a compact design ideal for flow control applications with an orifice diameter of 2.5 mm. It operates effectively within a temperature range from -10°C to 55°C, making it adaptable to various industrial conditions.
The valve is engineered with a vibration-resistant block-screwed coil, enhancing operational stability even in demanding environments. The maximum opening and closing times of 20 ms and 30 ms allow for fast response in process automation. Installation is straightforward using the four M4 x 8 mm tapped holes on the valve bottom, allowing easy mounting in pipelines or machinery.
Burkert 143492 solenoid valves are primarily used for sealing ports and are compatible with neutral media flow control in industrial, laboratory, HVAC, and manufacturing settings. The valve body features a clear arrow indicating flow direction to aid in correct installation.
These valves conform to industry standards GL and DVGW and are crafted in Germany to ensure high manufacturing quality and reliability. For hazardous area use, UL listing and CSA approval require assembly with Burkert type 2509 cable plug connector, combining for authorized use in Division 2 locations.
The valve body is made of brass ensuring durability and corrosion resistance. It features a compact design suitable for flow diameters up to 2.5 mm. Maximum operating pressure is rated at 8 bar for versatile industrial use.
The valve operates reliably between -10°C and 55°C temperature range. Maximum opening and closing times are 20 ms and 30 ms respectively for quick response. The valve features vibration-resistant block-screwed coil design for stability.
Mounting is facilitated via four M4 x 8 mm tapped holes on the valve underside. Suitable for controlling neutral media in varied industrial and laboratory environments. Manufactured in Germany, ensuring high quality and standard compliance.
Standards compliant with GL and DVGW certifications. Explore our collection of Industrial Valves and Valve Fittings at EnvMart for high-performance fluid control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is rated at 8 bar.
It operates reliably between -10°C and 55°C.
The orifice diameter of this valve is 2.5 mm, suitable for flow control applications.
The maximum opening time is 20 ms, and the maximum closing time is 30 ms, allowing for quick response.
The valve body is made of brass, ensuring durability and corrosion resistance.
The inlet connection type is Muffe, which is standard for this model.
This valve conforms to industry standards GL and DVGW, ensuring reliability and quality.
Mounting is facilitated via four M4 x 8 mm tapped holes located on the valve underside.
It is suitable for controlling neutral media in various industrial and laboratory environments.
This model is manufactured in Germany, ensuring high manufacturing quality.
The supply voltage for this solenoid valve is 230V AC.
The flow factor Kv for this valve is 0.16 m³/h, indicating its flow capacity.
