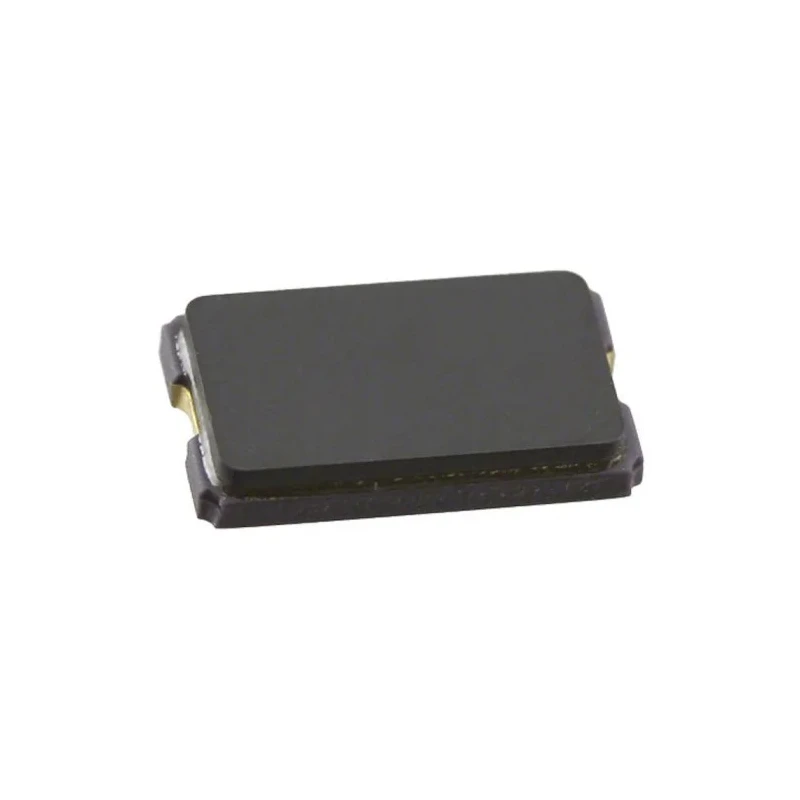

Abracon 16 MHz Surface Mount Crystal ±10 ppm Load Capacitance 4pF DFN Package ABM8W

Free Delivery in India | Lowest Global Shipping Charges

Abracon 16 MHz Surface Mount Crystal ±10 ppm Load Capacitance 4pF DFN Package ABM8W

Name: Abracon 16 MHz Surface Mount Crystal ±10 ppm Load Capacitance 4pF DFN Package ABM8W
Brand: Abracon
SKU: 150641
Price: 0.59 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.6mm
Length	2.5mm
Model	ABM8W
Packaging	Reel
Width	2mm
Mount Type	Surface
Series	ABM8W
Maximum Operating Temperature	125°C
Package Type	DFN
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, REACH
Standard Frequency	16MHz
Load Capacitance	4pF
Series Resistance	100Ω

Key Features

Optimized for energy-saving applications including wearables and IoT devices.
Extremely low profile with maximum height of 0.6 mm, suitable for height-constrained PCB designs.
Surface mount DFN package offering robust mechanical and electrical performance.
Low load capacitance of 4 pF with a series resistance of 100 ohms for high stability.
Operational temperature range from -40°C to 125°C for reliable performance under harsh conditions.
Seam-sealed construction to enhance long-term reliability and durability.
Compliant with RoHS and REACH environmental standards.
Applicable for Bluetooth, BLE, NFC, wireless modules, and machine-to-machine communications.

Product Description

Abracon ABM8W model 16 MHz surface mount crystal device with a frequency tolerance of ±10 ppm is suited for advanced energy-efficient electronic circuits. Its DFN package (2.5 mm length, 2 mm width, and 0.6 mm height) offers a compact footprint optimized for Internet of Things (IoT) devices and wearable electronics where minimal space and power consumption are critical.

Manufactured with a low load capacitance of 4 pF and series resistance of 100 Ω, the ABM8W series delivers excellent frequency stability (±50 ppm) and is rated for operation across a broad temperature range from -40°C to 125°C ensuring consistent performance in various environmental conditions.

The crystal is seam sealed to provide robust protection against environmental factors, enhancing long-term reliability necessary for automotive and industrial IoT applications. This product complies with RoHS and REACH standards, assuring environmentally safe manufacturing processes.

Common industrial and commercial applications include wearable technology, BLE and Bluetooth communication devices, wireless modules, ultra-low power systems, near-field communication (NFC), and machine-to-machine (M2M) connectivity in the ISM band.

Optimized for energy-efficient IoT and wearable devices. Compact DFN package suitable for height constrained designs. Low load capacitance and series resistance for stable oscillation. Wide operating temperature range from -40°C to 125°C.

Seam sealed for extended reliability under harsh conditions. Compliant with RoHS and REACH environmental regulations.

This crystal unit is ideal for use in industrial, commercial, and IoT applications requiring precise frequency control. For more options and technical details, browse the Crystals, Oscillators & Resonators category at EnvMart.
