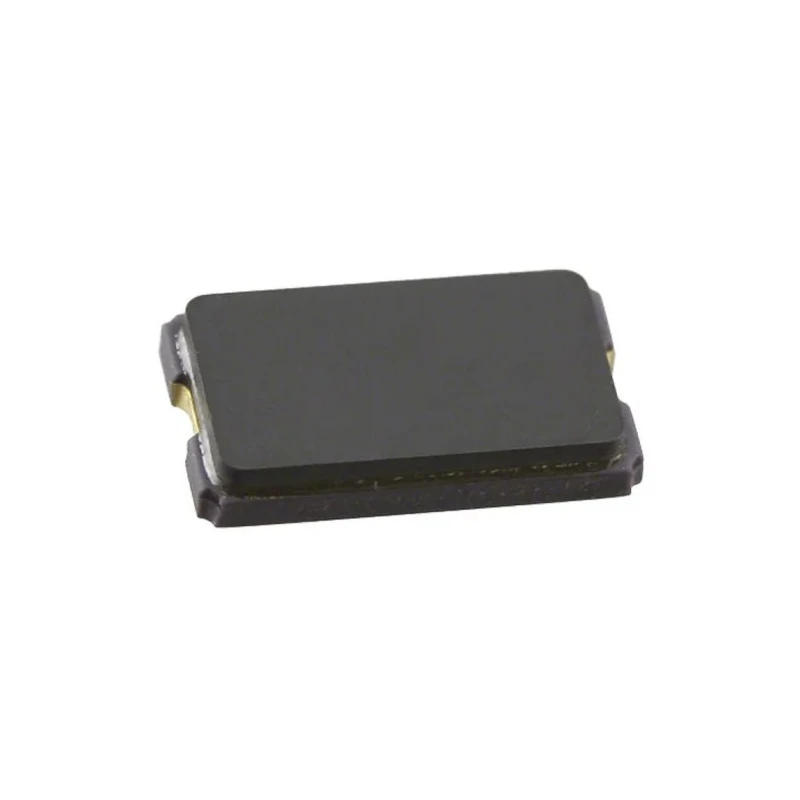

Abracon 12 MHz Crystal ±10 ppm Load Capacitance 4pF Surface Mount DFN 0.6mm x 2.5mm x 2mm ABM8W-12.0000MHZ-4-B1U-T3

Name: Abracon 12 MHz Crystal ±10 ppm Load Capacitance 4pF Surface Mount DFN 0.6mm x 2.5mm x 2mm ABM8W-12.0000MHZ-4-B1U-T3
Brand: Abracon
SKU: 150640
Price: 0.5 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	0.6mm
Length	2.5mm
Model	ABM8W
Packaging	Reel
Width	2mm
Mount Type	Surface
Series	ABM8W
Maximum Operating Temperature	70°C
Package Type	DFN
Minimum Operating Temperature	-20°C
Standards/Approvals	REACH, RoHS
Standard Frequency	12MHz
Load Capacitance	4pF
Series Resistance	100Ω

Key Features

Compact surface mount crystal in DFN package measuring 2.5 x 2.0 x 0.6 mm.
Load capacitance of 4 pF optimized for low power consumption.
Operating temperature range from -20°C to 70°C suitable for diverse environments.
Series resistance of 100 Ω for optimized electrical performance.
Seam sealed ceramic package offering long-term reliability.
Ideal for Bluetooth, NFC, wireless modules, and machine-to-machine connectivity.
Supplied on reel packaging for automated assembly processes.

Product Description

Abracon ABM8W-12.0000MHZ-4-B1U-T3 is a 12 MHz surface mount crystal designed for IoT and wearable electronics, featuring a compact DFN package measuring 2.5 mm length, 2.0 mm width, and 0.6 mm height, optimized for low profile applications.

Its ±10 ppm frequency tolerance and frequency stability ensure precise timing performance for sensitive electronic circuits. The crystal’s low load capacitance of 4 pF and series resistance of 100 Ω contribute to energy-efficient operation, making it highly suitable for ultra-low power wireless communication modules including Bluetooth Low Energy and Near Field Communication (NFC).

Constructed with a seam sealed ceramic case, the ABM8W series crystal guarantees long-term reliability even in demanding industrial or commercial environments with operating temperatures from -20°C to 70°C. It is not qualified to automotive standards but excels in consumer electronics and machine-to-machine connectivity devices within the ISM frequency bands.

The product is provided on reels, facilitating automated surface mount technology (SMT) assembly. Its small footprint and low height are ideal for embedded designs requiring compact and reliable timing solutions.

Surface mount DFN package with dimensions 2.5 mm x 2.0 mm x 0.6 mm. Standard frequency: 12 MHz with ±10 ppm tolerance. Load capacitance: 4 pF optimized for minimal power drain. Series resistance: 100 Ω ensuring electrical performance.

Operating temperature range: -20°C to 70°C. Seam sealed ceramic package for long-term stability. Applications include IoT wearables, wireless modules, Bluetooth, NFC, and M2M connectivity. Country of Origin: China.

EnvMart offers this reliable Abracon crystal unit to support precise frequency control in advanced industrial, commercial, and IoT devices. Browse further product offerings in our Crystals, Oscillators & Resonators category for complementary components.
