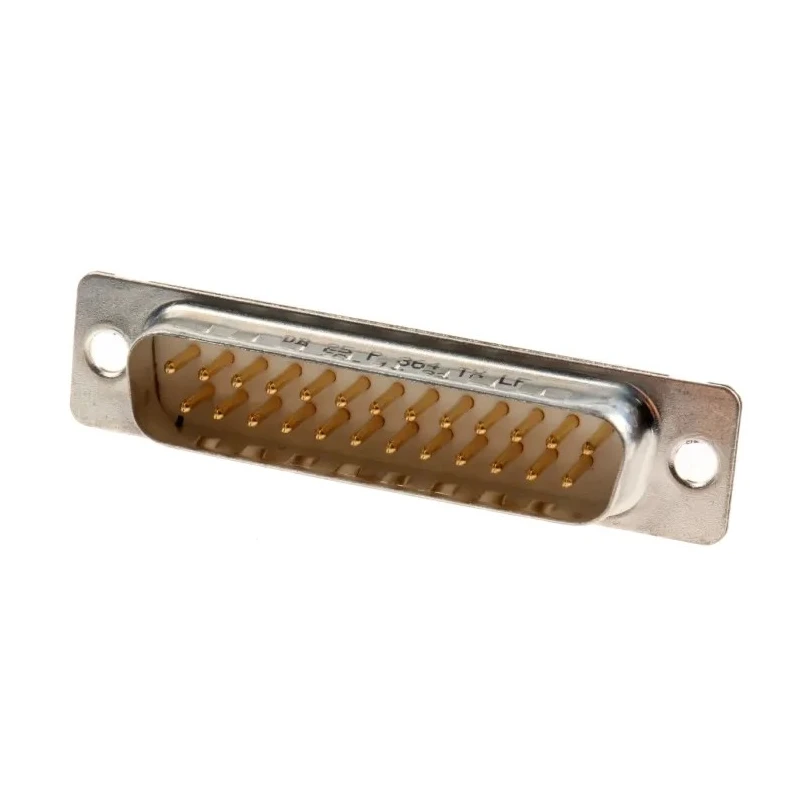

Amphenol Communications Solutions D 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector Male DB25P364TXLF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 5A |
| Model | DB25P364TXLF |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| D-Sub Shell Size | B |
| RS PRO 25 Way Straight Through Hole D-Sub Connector MaleRS Stock No. | 470-897Brand: RS PRO |
| RS PRO 25 Way Straight Through Hole D-Sub Connector MaleBrand | RS PRO |
| HARTING 15 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector MaleBrand | HARTING |
Key Features
- Supports 25 contacts to facilitate multiple connections.
- Current rating of 5A suitable for moderate power applications.
- Constructed with durable steel housing material ensuring mechanical protection.
- Gold over nickel plating on copper alloy contacts promotes corrosion resistance.
- Operates between -55°C to 125°C for wide temperature resilience.
- Designed for through hole mounting ensuring secure PCB attachment.
- Standard B size D-Sub shell provides compatibility with common connectors.
- Male connector gender and contact gender for proper mating with female counterparts.
Product Description
Amphenol Communications Solutions DB25P364TXLF is a 25 way straight D-Sub Connector designed for through hole solder mounting on printed circuit boards. Featuring a 2.76 mm pitch and a robust steel housing, this connector provides exceptional electrical performance with a rated current of 5A and voltage of 1kV. The contacts are made from copper alloy plated with gold over nickel for superior conductivity and corrosion resistance.
Engineered to operate reliably within a broad temperature range of -55°C to 125°C, this D size shell connector is suitable for industrial, electronic, and power connector applications. The male gender interface enables secure mating with female connectors, making it ideal for use in complex wiring and communication setups.
Termination is via solder, making it compatible with standard PCB assembly processes. Its robust build and precise pitch are ideal for electronic equipment manufacturing, maintenance, laboratory instrumentation, and other commercial or industrial uses.
Supports 25 contacts for multi-signal transmission. Durable steel housing protects against mechanical and environmental stresses. Gold plated copper alloy contacts provide reliable conductivity and longevity. Wide operating temperature range from -55°C to 125°C.
Through hole mounting for secure PCB integration. 1kV voltage rating for safe electrical operation. Suitable for industry and laboratory connector applications.
This product is made in India and ensures compliance with essential functional requirements though it does not have additional certifications. Purchase this connector for dependable solder-through mounting with a trusted Amphenol Communications Solutions design. Browse the Power Connectors category on EnvMart for compatible products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a current rating of 5A, making it suitable for moderate power applications.
It has a voltage rating of 1kV, ensuring safe electrical operation in various applications.
This connector operates reliably within a temperature range of -55°C to 125°C.
The housing is made of durable steel, and the contacts are copper alloy plated with gold over nickel for corrosion resistance.
It supports 25 contacts, facilitating multiple connections for signal transmission.
This model is designed for through hole mounting, ensuring secure attachment to printed circuit boards.
The pitch of the contacts is 2.76 mm, which is standard for this type of connector.
Both the connector and the contacts are male, allowing for proper mating with female counterparts.
Yes, it is suitable for industrial, electronic, and power connector applications due to its robust design and specifications.
The termination type for this connector is solder, making it compatible with standard PCB assembly processes.
This product is manufactured in India.
The shell size for this connector is classified as B, which is a standard size for D-Sub connectors.
