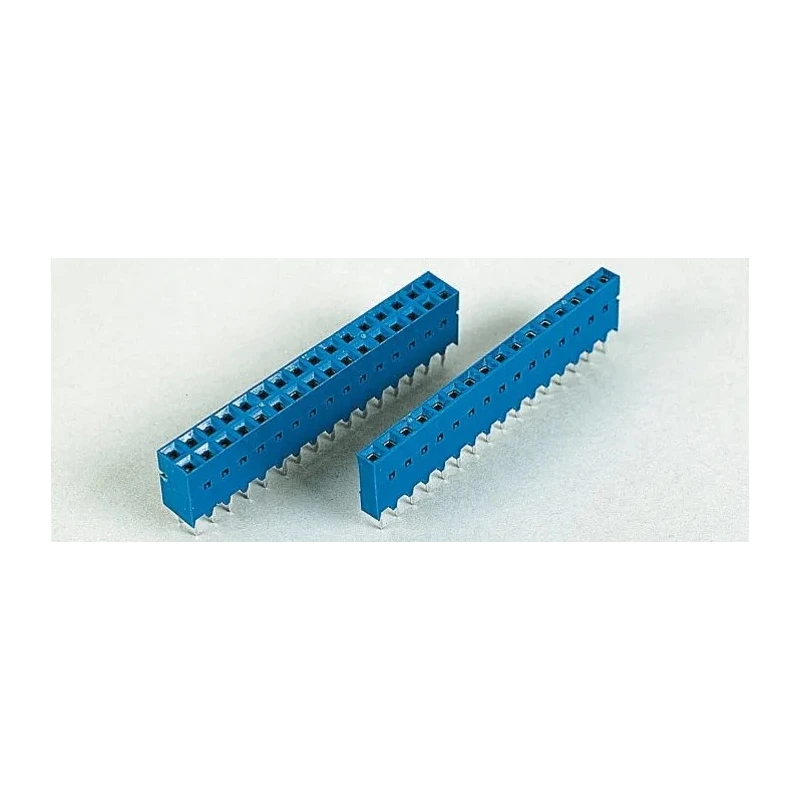

Amphenol Communications Solutions Dubox Series 28-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket 87606-414LF

Amphenol Communications Solutions 87606-414LF Dubox Series is a straight through hole PCB socket designed for high-performance board-to-board connections. This 28-contact, 2-row socket features a 2.54 mm pitch with solder termination type, ensuring secure and reliable mounting on printed circuit boards. The housing material is glass filled thermoplastic, offering fire retardancy rated to UL94 V-0, suitable for demanding industrial environments.

With a current rating of 12A and a voltage rating of 1 kV, this connector is ideal for applications requiring high electrical performance. The bronze contacts plated with matt tin provide excellent conductivity and durability. The socket is engineered for a wide operating temperature range from -65°C to 125°C, supporting use in harsh industrial, manufacturing, and electronic systems.

This Dubox Series socket utilizes double-bladed pre-tensioned contacts with 0.76 μm gold plating on mating areas to minimize insertion force and maximize contact reliability. Contact resistance is tightly controlled at a maximum of 15 milliohms initially, with insulation resistance exceeding 105 megaohms for dependable electrical insulation. The mounting style is through-hole with a straight orientation, suitable for PCB applications requiring firm mechanical retention.

Glass filled thermoplastic housing rated UL94 V-0 for fire retardancy. 28 contacts arranged in 2 rows with 2.54 mm pitch. 12 amp current and 1 kV voltage rating for robust electrical performance. Bronze contacts with matt tin plating resist corrosion.

Operating temperature range from -65°C to 125°C for harsh environments. Double-bladed pre-tensioned contacts with gold-plated contact areas for reliability. Low insertion force design aids assembly and maintenance. Contact resistance max 15 mΩ; insulation resistance min 105 MΩ.

This PCB socket is ideal for industrial, electronic manufacturing, communication system assembly, and general purpose board-to-board connection applications. Its durable materials and precision design support long-term reliability and ease of installation in electronic equipment.
