Ideal Power DC/DC Converter 24V 600mA 18V-36V Input 30W Through Hole ESC24240-D-1IP

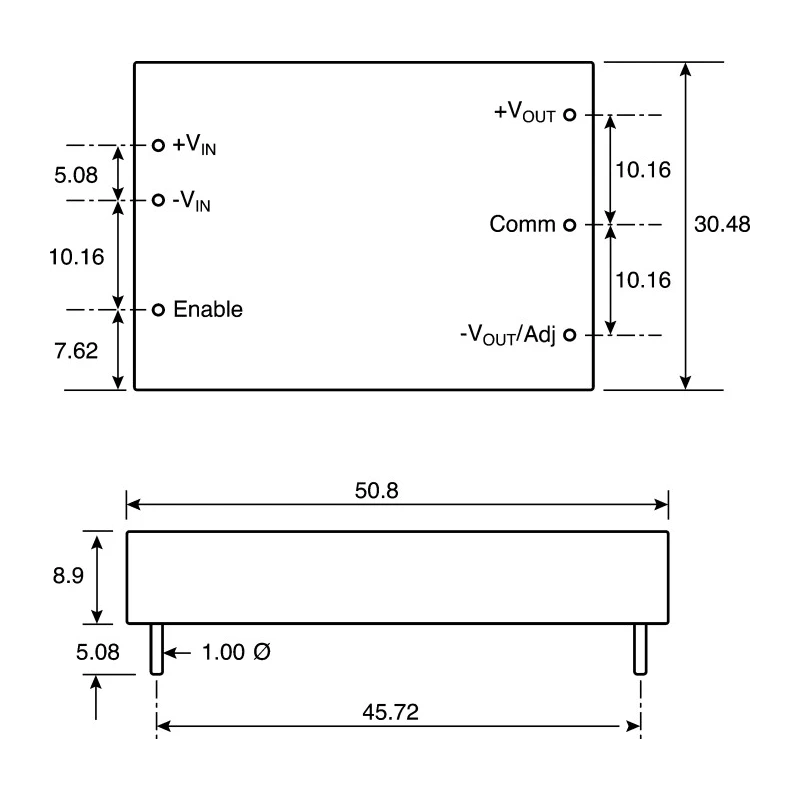

Ideal Power ESC24240-D-1IP is a high-performance, regulated isolated DC/DC converter designed to provide a 24V output at 600mA current from a wide 18V to 36V DC input voltage range. The converter incorporates a metal case with insulated baseplate, measuring 50.8 mm in length, 30.5 mm in width, and 8.9 mm in depth, optimized for through hole PCB mounting.

This module offers ultra-wide 4:1 input voltage range capability, making it suitable for various industrial and commercial power supply applications. It achieves high efficiency up to 87%, minimizing power loss and maintaining thermal stability even at full load.

Safety and reliability are ensured with a 1.5kV isolation voltage between input and output and multiple integrated protection features including automatic under-voltage lockout, over-voltage shutdown, over-temperature protection, output current limiting, and continuous short circuit protection.

The unit complies with electromagnetic interference requirements as per EN 55022 Class B and FCC Level B standards without requiring additional external filtering components, which simplifies system integration. It also features Remote On/Off control for versatile operation in complex power management systems.

With a mean time between failures (MTBF) of 989 hours, this converter is well suited for demanding environments. The operating temperature range from -40°C to 100°C ensures robust performance across diverse industrial and laboratory settings.

Typical applications include industrial automation, instrumentation, telecommunications, and other DC power supply systems requiring stable and isolated DC voltage conversion. Compact through hole metal package with insulated baseplate.

Ultra-wide 4:1 input voltage range supports 18V to 36V supply voltages. High efficiency of 87% under full load conditions conserves energy. Input/output isolation voltage rating of 1.5kV enhances system safety. Comprehensive protection: under-voltage lockout, over-voltage, over-temperature, and short circuit.

EMI compliance with EN 55022 Class B and FCC Level B without extra filters. Remote On/Off control feature for dynamic power management. Operating temperature range from -40°C to 100°C for reliable operation. Industry-standard pinout ensures compatibility in designs.

Ideal Power products are rigorously engineered for industrial and commercial power conversion needs. Explore the full range of DC/DC Converters at EnvMart for reliable power supply solutions.
