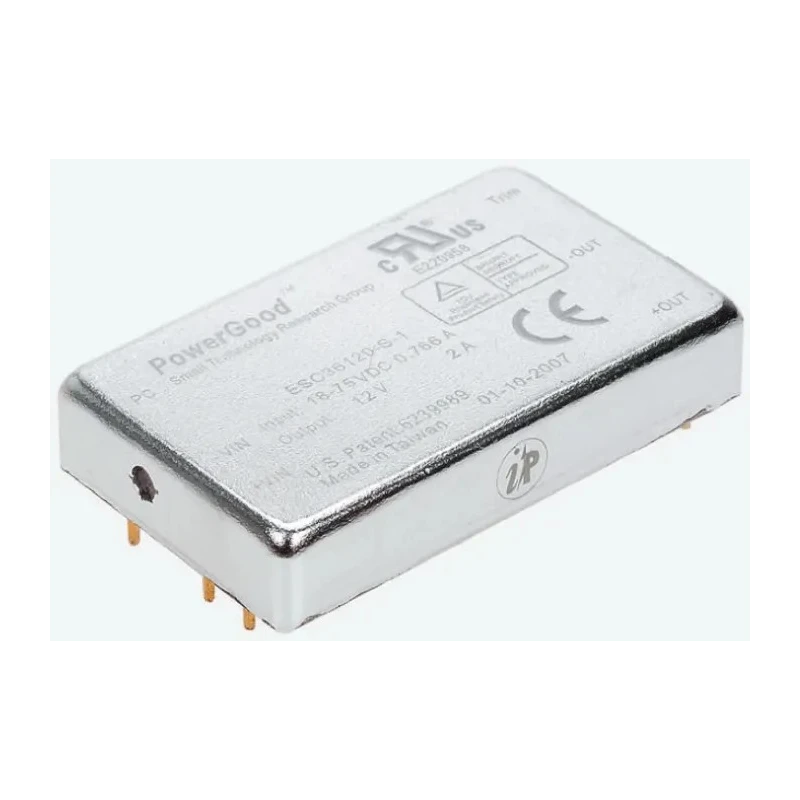

Ideal Power ESC DC/DC Converter 12V Output, 2.5A, 75V Max Input, 18V Min Input, 30W, -40°C to 100°C ESC36120-S-1IP
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Ideal Power ESC DC/DC Converter, 12V/ 2 |
| Brand | Ideal Power |
| Efficiency | 85% |
| Length | 50.8mm |
| Model | ESC36120-S-1IP |
| Depth | 9.4mm |
| Gross Weight | 34g |
| Series | ESC |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 989h |
| Number of outputs | 5 |
| Ripple and Noise | 80mV Pk-Pk |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 75V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 12V |
| Output Current 1 | 2.5A |
| Isolation Voltage | 1.5kV |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
| Ultra-wide 4 | 1 input voltage range (except ±24V) |
Key Features
- Regulated 12V DC output at up to 2.5A for reliable performance.
- High efficiency, up to 85%, minimizing energy loss.
- Operating temperature from -40°C to 100°C, suitable for harsh environments.
- Built-in output isolation of 1.5kV for safety and device protection.

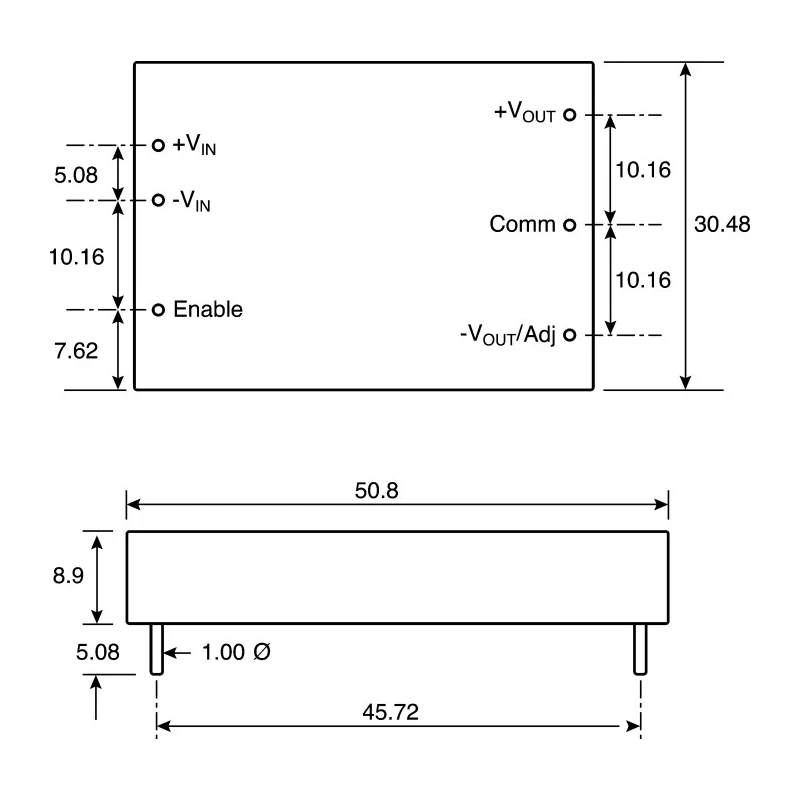

- Compact 50.8mm x 30.5mm x 9.4mm metal package with insulated baseplate.
- Continuous short circuit protection and remote On/Off control.
- MTBF over 989 hours ensures long service life.
- Shielded metal case enhances EMI protection for industrial electronics.
Product Description
Ideal Power's ESC36120-S-1IP DC/DC Converter delivers high-performance 12V output at up to 2.5A from an ultra-wide input range spanning 18V to 75V. Designed for demanding industrial, electronics, and laboratory applications, it offers 30W total power and operates reliably between -40°C and 100°C.
This converter features regulated output with high efficiency, reaching 85%, which reduces heat generation and power losses. The device comes housed in a robust 50.8mm x 30.5mm x 9.4mm metal package, fully shielded and equipped with an insulated baseplate for enhanced EMC and safety.
Safety is paramount, thanks to 1.5kV input-output isolation, continuous short circuit output protection, and over-temperature safeguards. Remote On/Off capability and adjustable output (±5% via external resistor for single O/P models) provide flexible integration and convenience for system builders.
Designed to meet strict industry standards, the device can operate in environments as cold as -40°C and as hot as 100°C, making it suitable for outdoor, process control, telecom, and industrial instrumentation. EMC compliance is achieved via built-in filters that meet EN 55022, Class B and FCC Level B requirements, without needing external components.
Applications include power regulation and isolation in automation, process control, electronics laboratories, telecommunication infrastructure, and embedded equipment where reliability and robust temperature performance are critical.
Wide input voltage range from 18V to 75V supports diverse power sources. Regulated 12V output at 2.5A with ripple and noise < 80mV pk-pk. Class-leading efficiency up to 85% and MTBF of over 989 hours. Built-in EMI filter for EN 55022 and FCC Level B compliance.
Remote On/Off, under-voltage lockout, over-voltage, and over-temperature protection. Shielded metal package, continuous short circuit protection, and industry-standard pin-out. Explore other DC-DC Converters and Ideal Power solutions in EnvMart's Electronics & Electricals category for specialized industrial power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V with a maximum output current of 2.5A.
It operates within an ultra-wide input voltage range of 18V to 75V.
The efficiency of this unit is up to 85%, which helps minimize energy loss during operation.
The dimensions of this model are 50.8mm in length, 30.5mm in width, and 9.4mm in depth.
It can operate at temperatures up to 100°C, making it suitable for harsh environments.
Yes, it includes continuous short circuit protection, over-temperature protection, and 1.5kV input-output isolation for safety.
The ripple and noise for the output is less than 80mV peak-to-peak.
The minimum operating temperature is -40°C, allowing it to function in extremely cold conditions.
The MTBF for this unit is over 989 hours, indicating a long service life.
This converter is designed for applications in automation, process control, electronics laboratories, and telecommunications infrastructure.
Yes, this model includes a remote On/Off control capability for flexible integration.
It complies with RoHS standards and has built-in filters that meet EN 55022, Class B and FCC Level B requirements.
