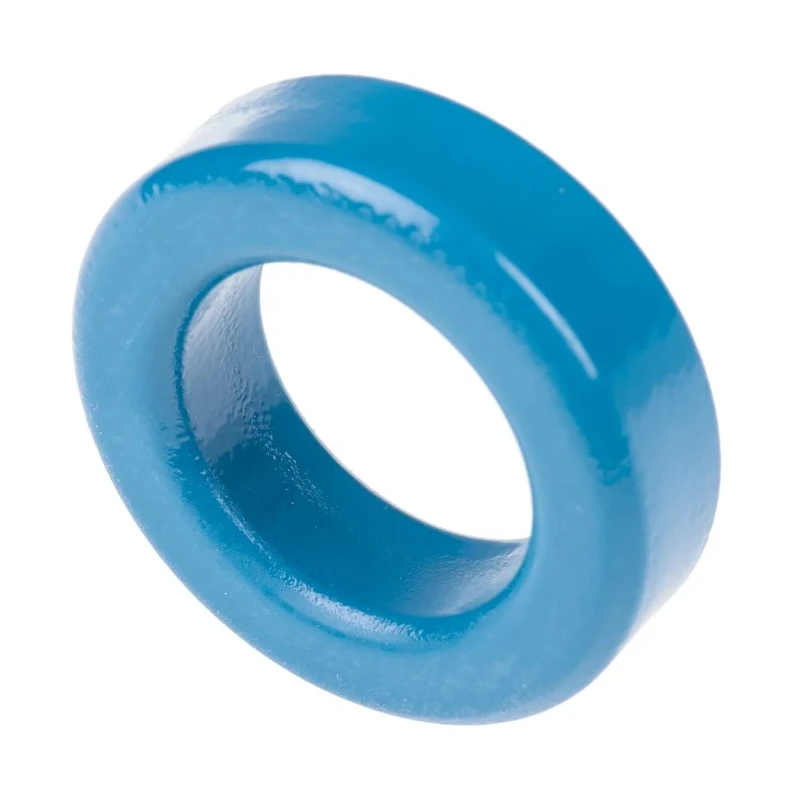

TDK Ferrite Ring Toroid Core Broadband Transformer 12.5 mm Height 26.2 mm Inside Diameter 41.8 mm Outside B64290L0022X830

TDK B64290L0022X830 Ferrite Ring Toroid Core is a high-quality passive electronic component designed for broadband transformer applications. It features a height of 12.5 mm, an inside diameter of 26.2 mm, and an outside diameter of 41.8 mm, providing an optimized magnetic path for effective electromagnetic performance.

Manufactured from superior ferrite material, this toroidal core offers high magnetic permeability while minimizing core losses. The core is coated with a protective layer of polyamide or epoxy resin, which offers both electrical insulation and mechanical protection to the edges, thereby enhancing durability under industrial operating conditions.

This ferrite ring core is suited for a variety of applications including EMI suppression, broadband transformers, pulse transformers, chokes, and baluns. Its precise dimensions and RoHS compliance make it ideal for use in communication, power supply, and signal filtering circuits found in industrial, commercial, and laboratory equipment.

The B64290L0022 series identification ensures compatibility and easy replacement within existing designs, maintaining performance reliability and consistency. The core's magnetic and physical properties contribute to efficient transformer construction with reduced electromagnetic interference.

The core height is 12.5 mm ensuring compact transformer assembly. Inside diameter of 26.2 mm fits broadband transformer requirements accurately. Outside diameter measures 41.8 mm providing adequate magnetic flux characteristics.

Constructed with ferrite material offering high magnetic permeability and low loss. Coated with polyamide or epoxy resin to provide insulation and edge protection. Ideal for applications including chokes, baluns, pulse transformers, and broadband transformers.

Complies with RoHS standards ensuring environmental safety. Series identification: B64290L0022 for precise product matching.

This Ferrite Ring toroid core supports multiple industrial uses such as power electronics, communications equipment, EMI filtering, and manufacturing instrumentation. Its robust design suits high-demand electrical and electronic assemblies requiring efficient magnetic core performance.
