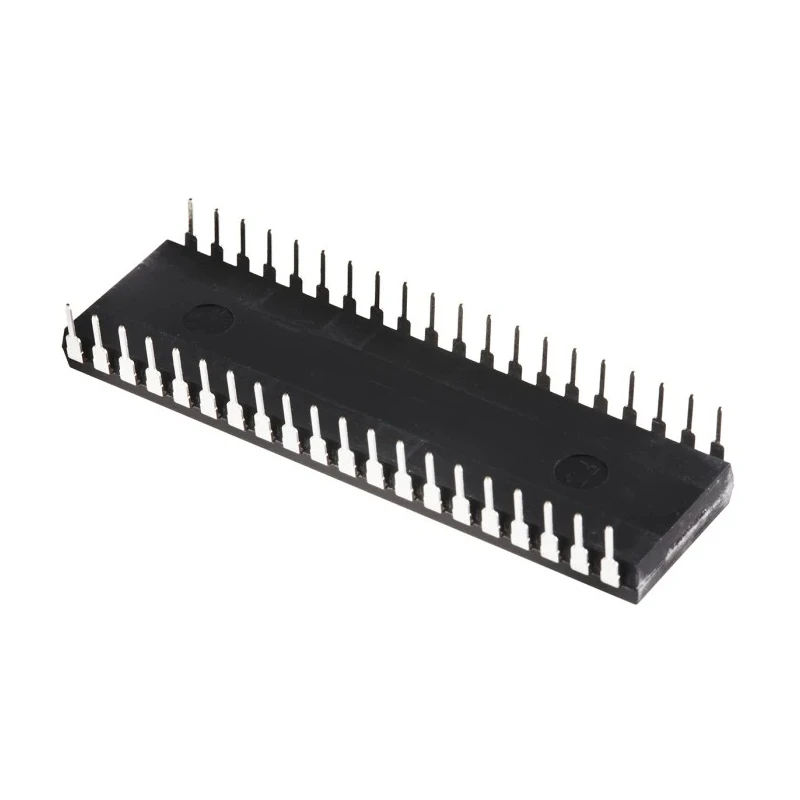

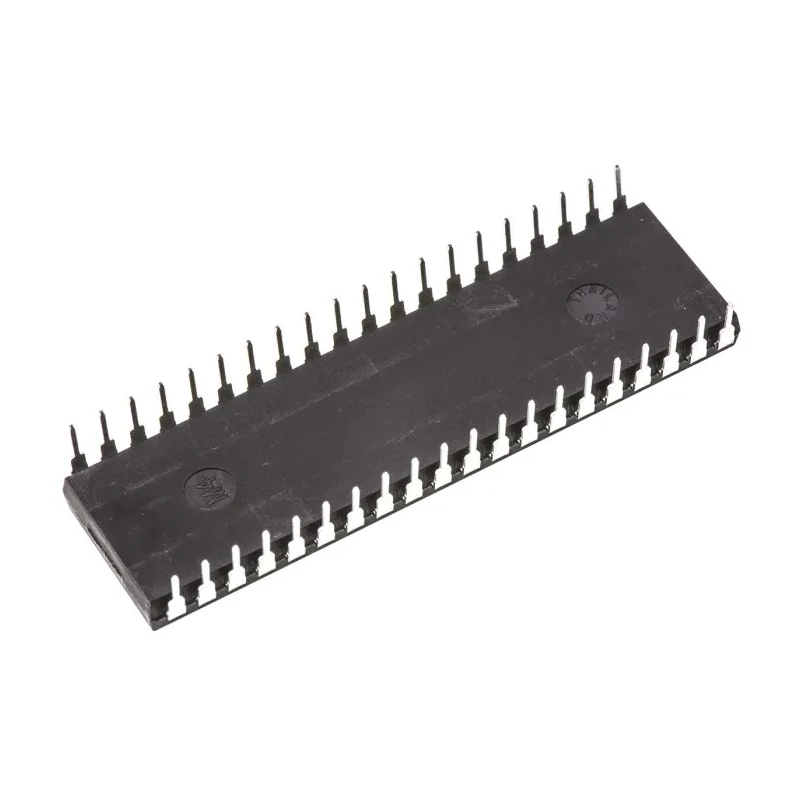

Microchip 8-bit PIC16C74B Microcontroller with 4 MHz EPROM 7kB Program Memory 40-Pin PDIP PIC16C74B-04/P

Microchip PIC16C74B-04/P is an 8-bit PIC16C microcontroller built on Microchip's mid-range architecture. It features a 40-pin Plastic Dual Inline Package (PDIP) with through-hole mounting, suitable for a wide range of electronic applications.

Operating at a maximum clock frequency of 4 MHz, this MCU supports up to 7 kB of EPROM program memory and 192 bits of RAM, facilitating complex program control and data storage.

The microcontroller incorporates 33 programmable input/output pins and 3 timers, enabling versatile interfacing and precise timing applications. Its integrated 8-channel 8-bit Analogue-to-Digital Converter (ADC) supports signal measurement and processing needs in industrial and embedded contexts.

The device includes subsystems such as Capture/Compare/PWM (CCP) modules that expand functionality for motor control and other PWM-driven applications.

Operating voltage ranges from 2.5 V (minimum) up to 5.5 V (maximum) with a power dissipation rating of 1 W. The device is robustly designed with features like Brown-out Reset (BOR), Watchdog Timer (WDT), Power-on Reset (POR), Power-up Timer (PWRT), and Oscillator Start-up Timer (OST), ensuring stability and resilience in harsh environments.

The PIC16C74B-04/P uses a Reduced Instruction Set Computer (RISC) architecture, offering an 8-level hardware stack and 35 instructions, achieving up to 5 million instructions per second (MIPS).

This microcontroller is ideal for industrial instrumentation, embedded automation, consumer electronics, and legacy system maintenance requiring reliable 8-bit microcontroller solutions.

Features a 40-pin PDIP package for easy through-hole mounting. Operates with an 8-bit PIC architecture at a maximum clock frequency of 4 MHz. Includes 7 kB of EPROM program memory and 192 bits of RAM memory. Supports up to 33 programmable I/Os and 3 timers for flexible control.

Integrates an 8-channel 8-bit Analogue-to-Digital Converter (ADC) ideal for signal processing tasks. Incorporates advanced modules such as CCP for capture, compare and PWM functions. Designed with RISC instruction set architecture ensuring efficient performance.

Operates under a supply voltage range from 2.5 V to a maximum of 5.5 V with 1 W power dissipation. Features built-in protections including Brown-out Reset (BOR) and Watchdog Timer (WDT) enhancing reliability. Suitable for industrial, embedded, and legacy systems requiring robust microcontroller solutions.
