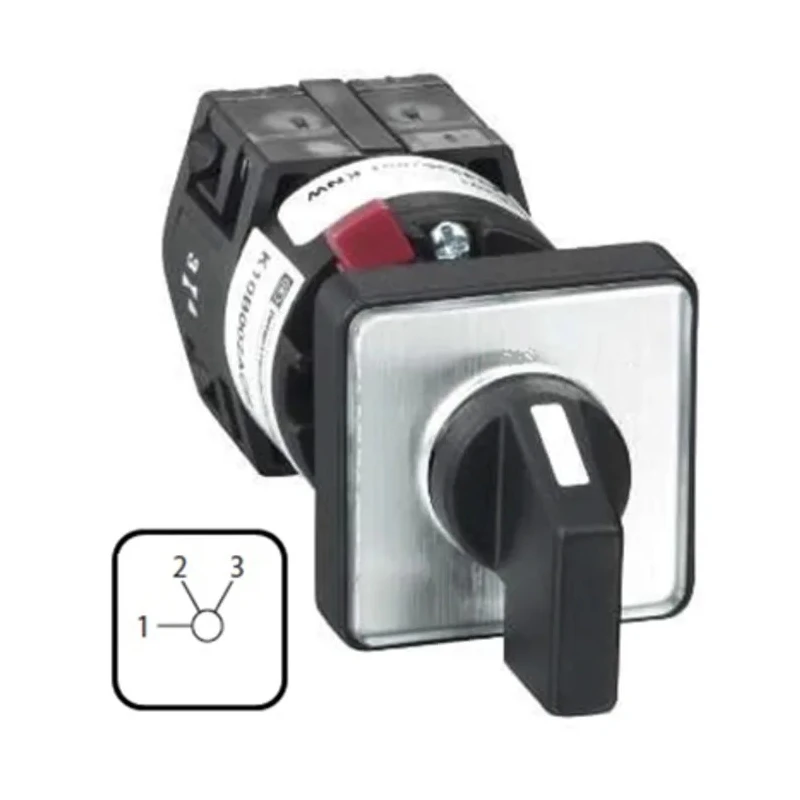

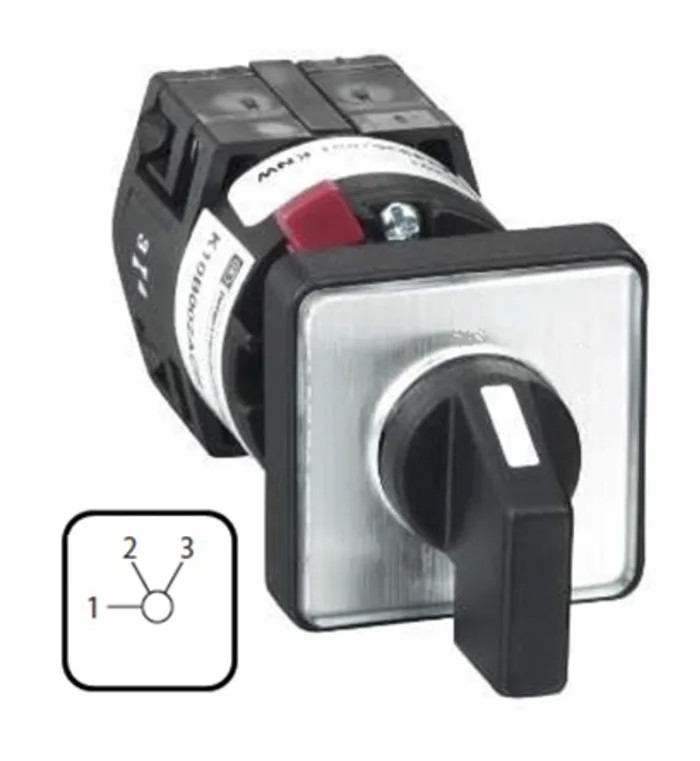

Schneider Electric Rotary Switch Cam Switch 3 Position 60° Handle Actuator 10 A K10F013NCH

Schneider Electric K10F013NCH rotary switch cam switch features a robust handle actuator with 3 positions and a 60° angle of throw designed specifically for panel mounting. This model is rated for 10 A contact current and supports a contact voltage up to 690 V AC, making it suitable for low voltage industrial and electrical applications.

The product belongs to the Harmony K series, known for its reliability and durability in various industrial environments. It operates on a single electrical phase with 2 poles and employs screw terminals for secure wiring connections. The switch is designed to withstand operating temperatures ranging from -20°C to +55°C, offering consistent performance in harsh conditions.

In addition to its technical specifications, the actuator switch is rated with IP65 and IP20 protection levels, ensuring resistance against dust and water ingress where applicable. Its mechanical life expectancy reaches up to 1,000,000 operations, providing long-term reliability for frequent switching tasks.

With compact physical dimensions of 100 mm depth, 30 mm length, and 30 mm width, this device is space-efficient and easy to install. The switch is compliant with EN/IEC 60947-5-1 international standards, certifying its quality and safety.

This Rotary Switch cam switch is ideal for use in electrical automation, industrial control panels, manufacturing equipment, and construction electrical installations. Its robust design and high performance make it suitable for numerous industrial applications requiring reliable switching capacity and durability.

Part of the Harmony K series for industrial cam switches. Single electrical phase operation with 2 poles and screw terminal type. Rated for a contact voltage of 690 V AC and contact current of 10 A. Temperature operating range from -20°C to 55°C ensuring wide applicability.

IP65 and IP20 rated for dust and water protection. Compact dimensions: 100 mm depth, 30 mm length, and 30 mm width. Provides a mechanical lifespan of 1,000,000 operations for durability. Complies with EN/IEC 60947-5-1 standards for safety and performance.

Choose Schneider Electric products on EnvMart for certified industrial-grade electrical components that meet stringent quality and performance benchmarks.
