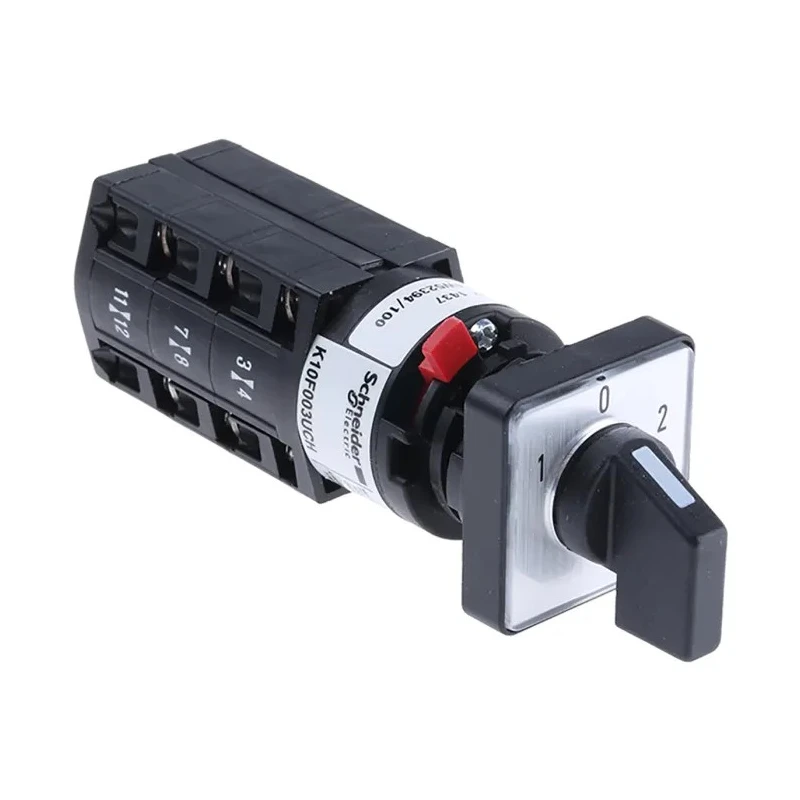

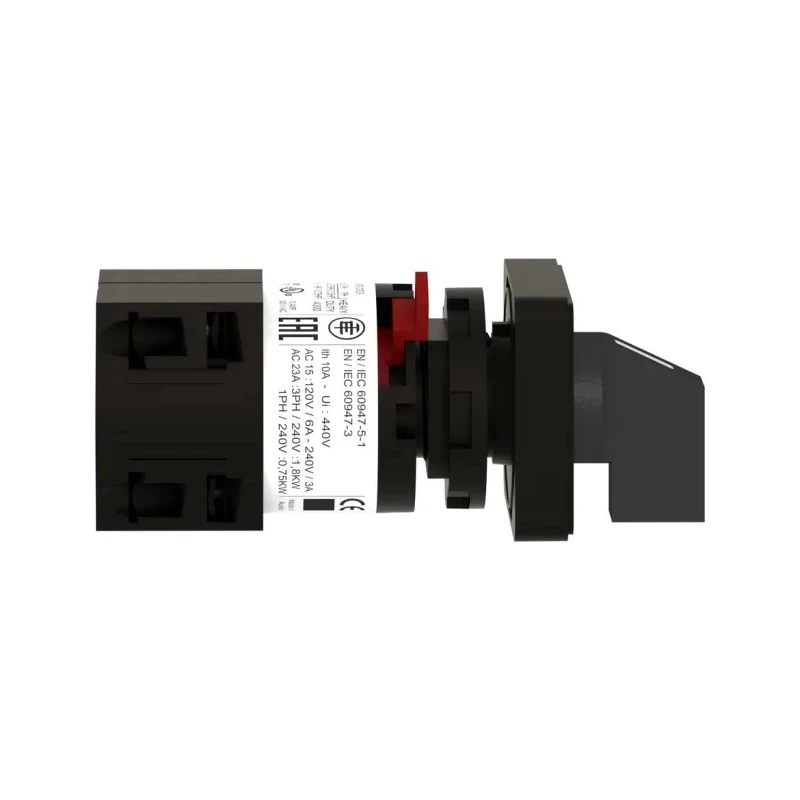

Schneider Electric Rotary Switch Cam Switch 3 Position 60° Handle Actuator 10A K10F003UCH

Schneider Electric K10F003UCH rotary switch cam switch is engineered for industrial and commercial electric control applications. It features a robust 3-position handle actuator with an angle of throw of 60°, designed to efficiently control circuit switching.

This switch supports both single and three-phase electrical systems, accommodating currents up to 10A at contact voltages reaching 400V. The handle actuator ensures easy and safe manual operation.

Constructed to withstand harsh operating environments, it includes an IP20 and IP65 rating enabling protection from dust and water ingress. It operates reliably within a temperature range of -20°C to +55°C, ensuring performance in varied industrial settings.

The switch provides slow break contacts to reduce arcing effects during operation, extending switch life. Mechanical life expectancy is rated at 1,000,000 operations, highlighting its long-term durability and reliability.

Installation is straightforward with front mounting and screw clamp terminals. The compact design with dimensions 30mm length, 3mm width, and depth 100mm facilitates easy integration into control panels and machines.

This product complies with major international standards including EN/IEC 60947-5-1, EN/IEC 60947-3, cULus, and UL 508, ensuring quality and safety compliance. This Rotary Switch cam switch is ideal for use across electrical, industrial automation, and manufacturing equipment requiring robust, precise manual switching solutions.

This rotary cam switch is designed for 1- or 3-phase electrical applications. The actuator type is a handle providing reliable manual switching. It offers a mechanical life of 1,000,000 operations ensuring extended durability.

Rated contact voltage is up to 400V enhancing its compatibility with industrial systems. Mount type is front with screw clamp terminals for secure connections. IP ratings IP20 and IP65 offer versatile protection against ingress in various environments.

Operating temperature ranges from -20°C to +55°C, suitable for industrial conditions. Slow break contacts enhance switching reliability and minimise electrical arc damage. Product dimensions include 30mm length, 3mm width, and 100mm depth for compact installation.

Certified to EN/IEC 60947-5-1, EN/IEC 60947-3, cULus and UL 508 standards. Explore more Schneider Electric industrial switches and components on EnvMart for reliable, certified control solutions.
