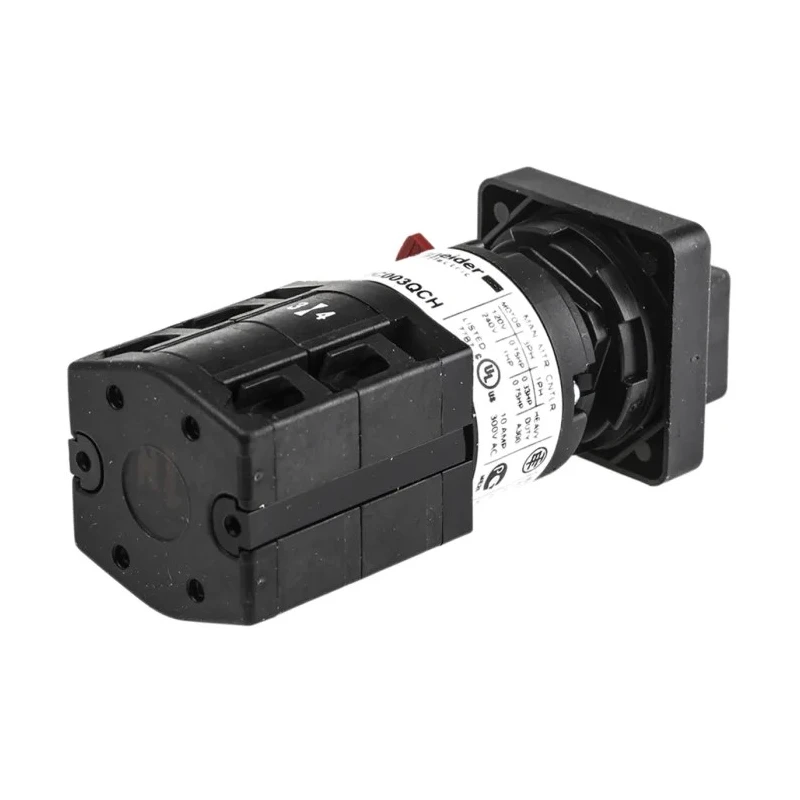

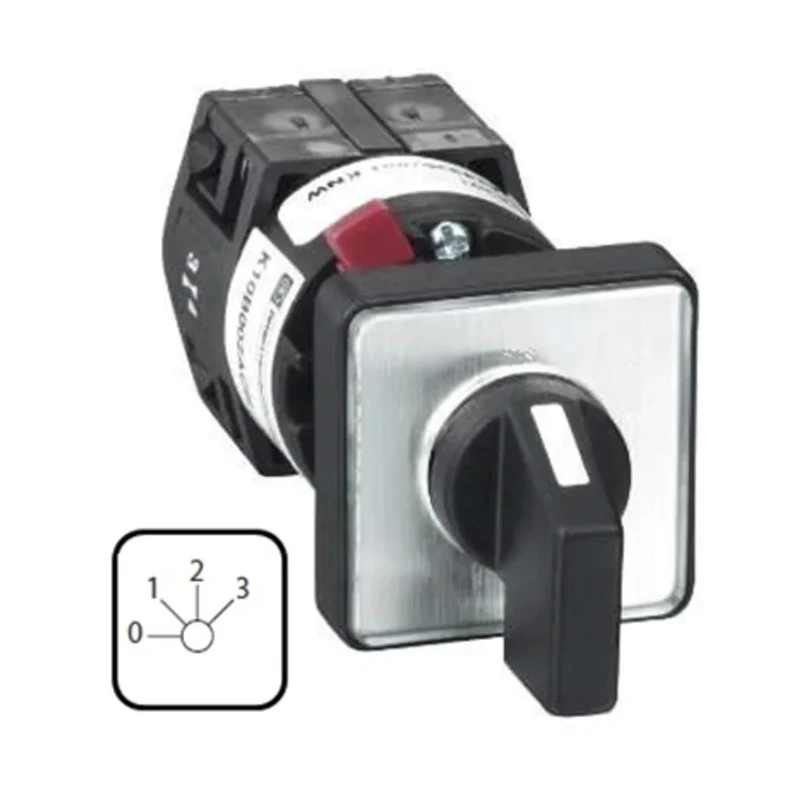

Schneider Electric 4 Position 60° Handle Actuator Rotary Cam Switch 10 A K10C003QCH

Schneider Electric K10C003QCH is a 4 Position 60° Handle Actuator rotary cam switch designed for reliable switching in industrial and electrical automation systems. It offers a contact current rating of 10 A and a contact voltage capacity of 440 V, suitable for various three-phase electrical applications.

This rotary switch features a robust handle actuator intended for front mounting, which allows precise manual control over switching positions at 60° intervals. Built with a durable screw clamp terminal, it ensures secure and stable electrical connections.

The switch has an IP rating of IP20 and IP65, providing protection against dust and water ingress, making it appropriate for demanding industrial environments. It operates effectively across a wide temperature range of -20°C to 55°C, maintaining consistent performance under varying conditions.

With a mechanical lifespan of 1,000,000 cycles, this cam switch offers longevity and reliability for intensive use. The compact dimensions, including 88 mm depth, 30 mm length, and 3 mm width, facilitate installation in control panels and machinery.

Compliance with international standards such as EN 50013, UL 508, IEC 61140, EN/IEC 60947-5-1, and EN/IEC 60947-3 underscores its quality and safety adherence for industrial switch applications.

Compact Rotary Switch with 4 operating positions at 60° intervals. Rated for 10 A contact current and 440 V contact voltage. Durable handle actuator designed for front mounting. Supports 3-phase electrical configurations for industrial use.

IP20 and IP65 rated for protection against solid particles and water ingress. Operates reliably between -20°C to 55°C ambient temperatures. Mechanical life of 1,000,000 cycles ensures long-term performance. Includes screw clamp terminal type for secure electrical connections.

Dimensions include 88 mm depth, 30 mm length, and 3 mm width. Conforms to multiple international standards including EN 50013 and UL 508.

This Schneider Electric rotary cam switch is ideal for industrial automation, electrical control panels, manufacturing machinery, and other commercial applications requiring precise, durable switching components. Browse the Electronics & Electricals category at EnvMart for more high-quality switches and components.
