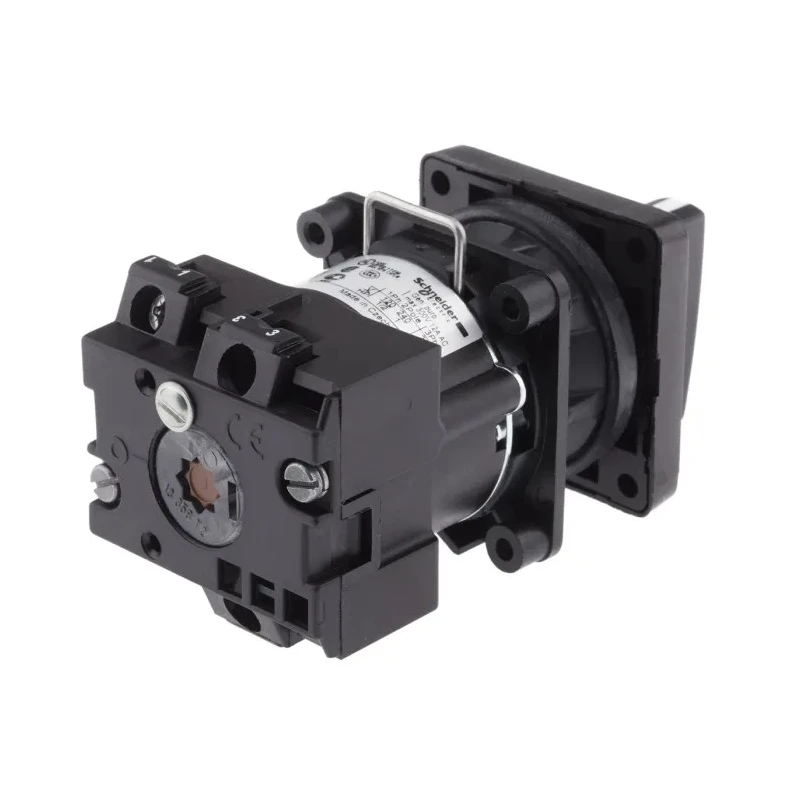

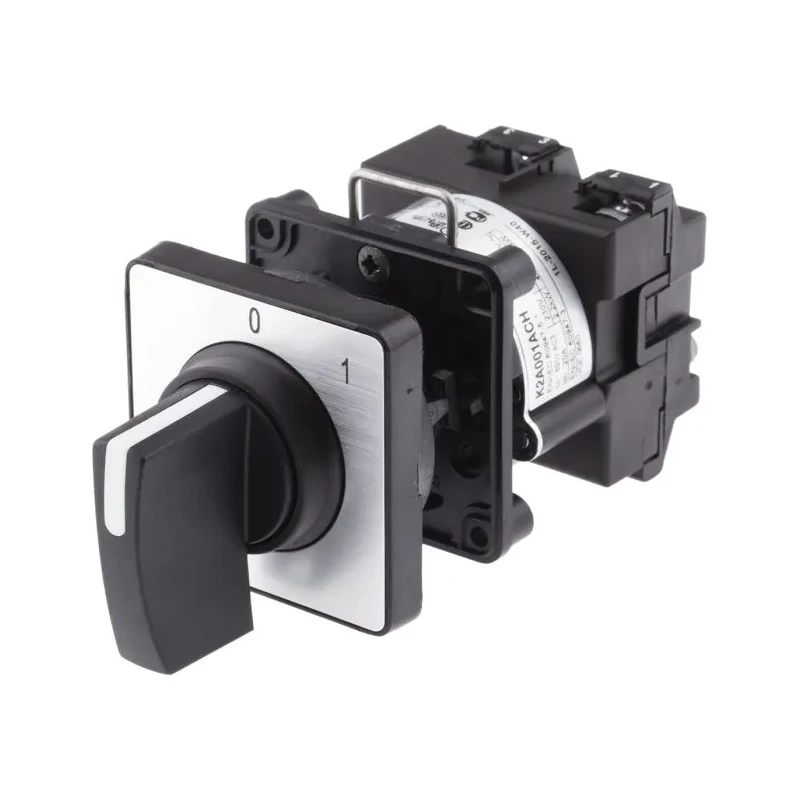

Schneider Electric Rotary Switch Cam Switch 2 Position 45°, Stay Put Handle Actuator 20 A K2A001ACH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 50mm |
| Model | K2A001ACH |
| Depth | 104.5mm |
| IP Rating | IP65 |
| Width | 45mm |
| Mount Type | Panel |
| Series | Harmony K |
| Maximum Operating Temperature | 55°C |
| Actuator Type | Stay Put, Handle |
| Number of Positions | 2 |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number of Poles | 1 |
| Standards/Approvals | EN/IEC 60947-5-1 |
| Mechanical Life | 1000000Operations |
| Contact Voltage | 690V |
| Contact Current | 20A |
| Angle of Throw | 45 ° |
| Schneider Electric 7 Position 45 °, Handle Actuator 20 ABrand | Schneider Electric |
Key Features
- This cam switch features a panel mount type suitable for industrial electrical applications.
- Equipped with a screw terminal type for secure electrical connections.
- Offers an IP65 rating for robust protection against dust and water.
- Operates reliably within temperature range from -20°C to 55°C.
- Supports contact voltage up to 690 V, ensuring high performance.
- Mechanical life rated for 1,000,000 operations, emphasizing durability.
- Complies with EN/IEC 60947-5-1 standards for safety and quality assurance.
- Compact dimensions with length 50 mm, width 45 mm, and depth 104.5 mm.
Product Description
Schneider Electric K2A001ACH Rotary Switch Cam Switch is engineered for precise electrical control with a 2 position, 45° angle of throw configuration and a stay put handle actuator. It is designed for panel mounting in demanding industrial automation and electrical distribution setups.
This cam switch is equipped with screw terminals, ensuring secure and reliable connections suitable for a wide range of industrial applications. It supports a contact current rating of 20 A and a contact voltage of up to 690 V, delivering robust electrical performance.
The product has an IP65 rating, providing protection against dust ingress and water jets, making it ideal for harsh environments. It operates effectively between -20°C and +55°C, supporting diverse operational conditions.
Durability is assured with a mechanical life capability of one million operations, ensuring a long service span in industrial settings. Compliance with EN/IEC 60947-5-1 standards guarantees adherence to international safety and quality benchmarks.
With compact dimensions of 50 mm length, 45 mm width, and 104.5 mm depth, the K2A001ACH cam switch integrates easily into existing assemblies and control panels. This cam switch features a panel mount type suitable for industrial electrical applications.
Equipped with a screw terminal type for secure electrical connections. Offers an IP65 rating for robust protection against dust and water. Operates reliably within temperature range from -20°C to 55°C. Supports contact voltage up to 690 V, ensuring high performance.
Mechanical life rated for 1,000,000 operations, emphasizing durability. Complies with EN/IEC 60947-5-1 standards for safety and quality assurance. Compact dimensions with length 50 mm, width 45 mm, and depth 104.5 mm. This rotary cam switch is suitable for industrial, electrical automation, manufacturing, and panel building applications.
Explore more products in the Electronics & Electricals category at EnvMart to find compatible switches and actuators tailored to your needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 20 A.
It supports a maximum contact voltage of 690 V.
This cam switch has an IP65 rating, providing protection against dust and water jets.
The dimensions are 50 mm in length, 45 mm in width, and 104.5 mm in depth.
It operates effectively within a temperature range of -20°C to 55°C.
This rotary switch features 2 positions with a 45° angle of throw.
It uses a stay put handle actuator type.
The mechanical life is rated for 1,000,000 operations.
This model is equipped with screw terminals for secure electrical connections.
It complies with EN/IEC 60947-5-1 standards for safety and quality assurance.
This cam switch is designed for panel mounting.
The country of origin for this product is India.
