LEM TT 50-SD Series Current Transformer 50 A 8mm Bore TT 50-SD

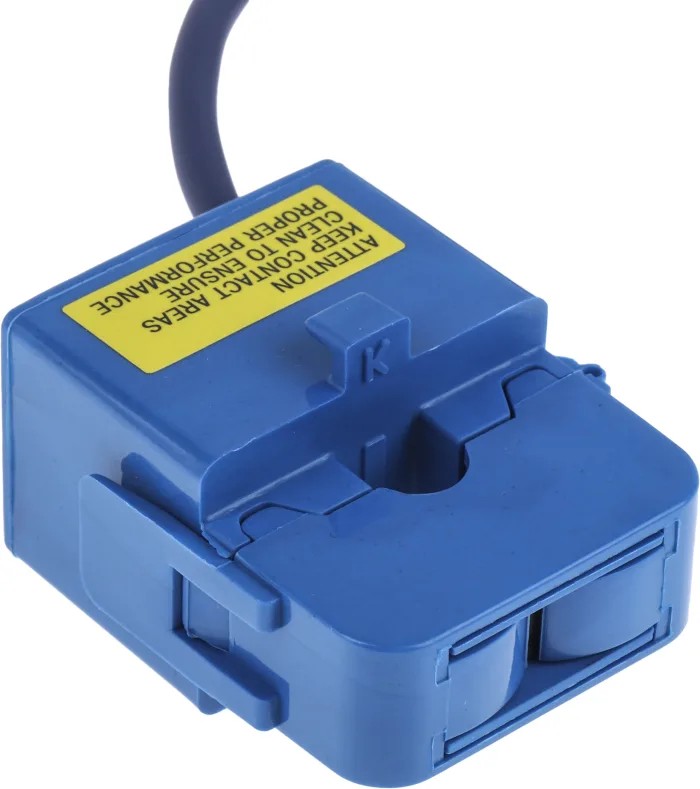

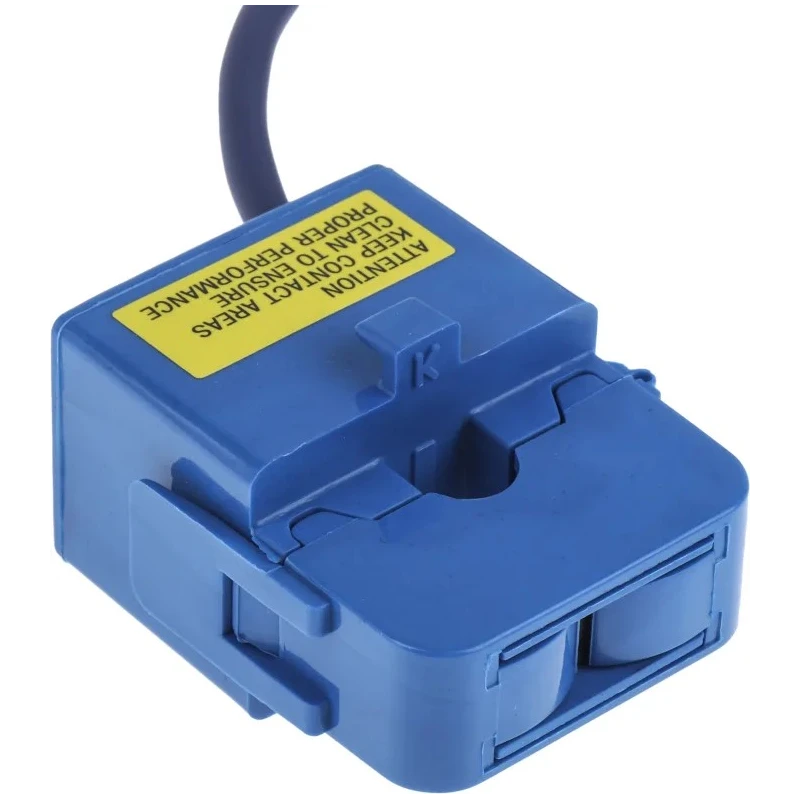

LEM TT 50-SD Series Current Transformer TT 50-SD is a high-precision current sensor designed for electronic measurement of alternating current up to 50 A, featuring an 8mm bore diameter and galvanic insulation between primary and secondary circuits.

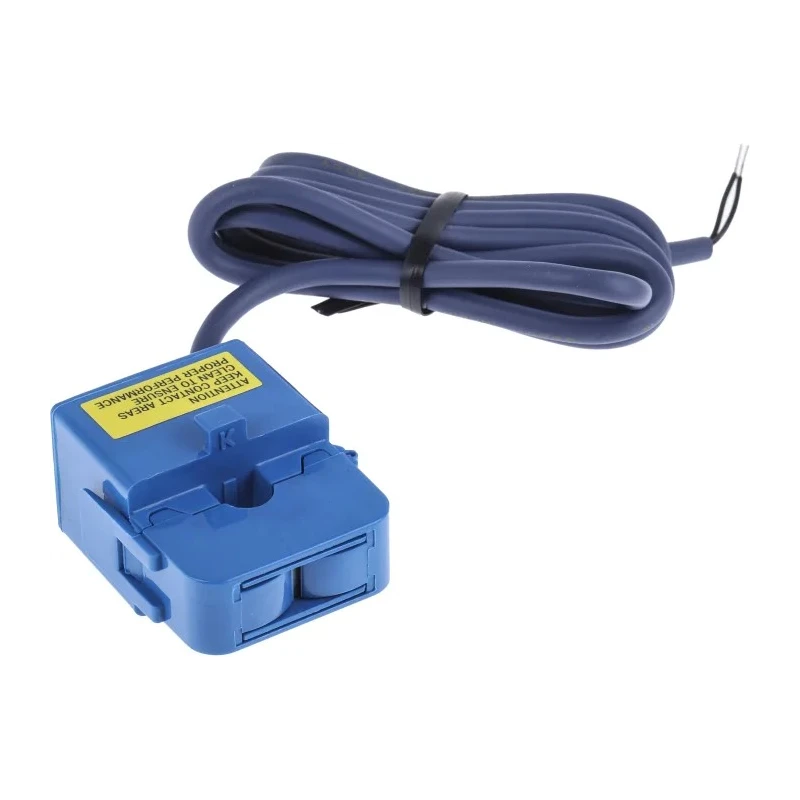

This current transformer delivers a secondary current of 16.66 mA with cable terminal type and a 1 metre pre-stripped cable facilitating easy setup. It measures 10 mm in length, 31.5 mm in depth, and 36.5 mm in width, weighing approximately 80 grams.

Operating within a temperature range from -25°C to 70°C, the unit complies with UL 94-V0 and IEC 61010-1 safety standards, ensuring reliable performance in industrial and laboratory environments.

Its compact form factor and precision make it suitable for applications involving measurement of active power and energy consumption in various electronic and industrial control systems.

This current transformer features galvanic insulation between primary and secondary circuits. It supports a primary current rating of 50 A and a secondary current of 16.66 mA. The 8 mm bore diameter accommodates maximum conductor size for the TT 50-SD model.

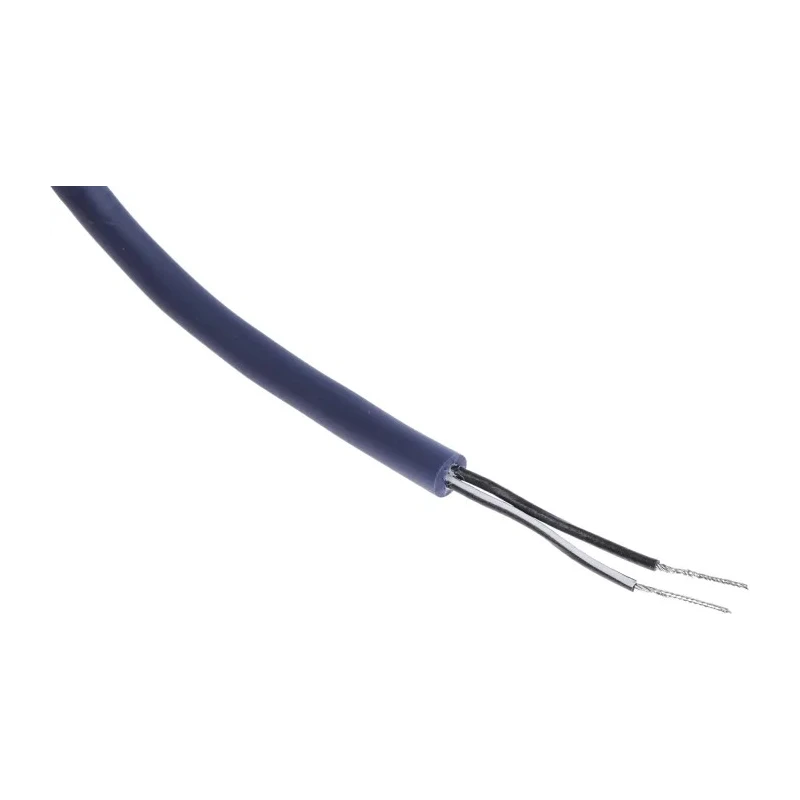

Equipped with a 1 metre length pre-stripped cable for easy installation. Operates effectively within a temperature range of -25°C to 70°C. Compact dimensions of 10 mm length, 31.5 mm depth, and 36.5 mm width. Compliance with UL 94-V0 and IEC 61010-1 standards ensures high safety and quality.

Ideal for measuring active power and calculating energy consumption in electronic systems.

This current transformer is produced in the Republic of Korea and is designed to support industrial, laboratory, electrical, and process control applications with high reliability.
