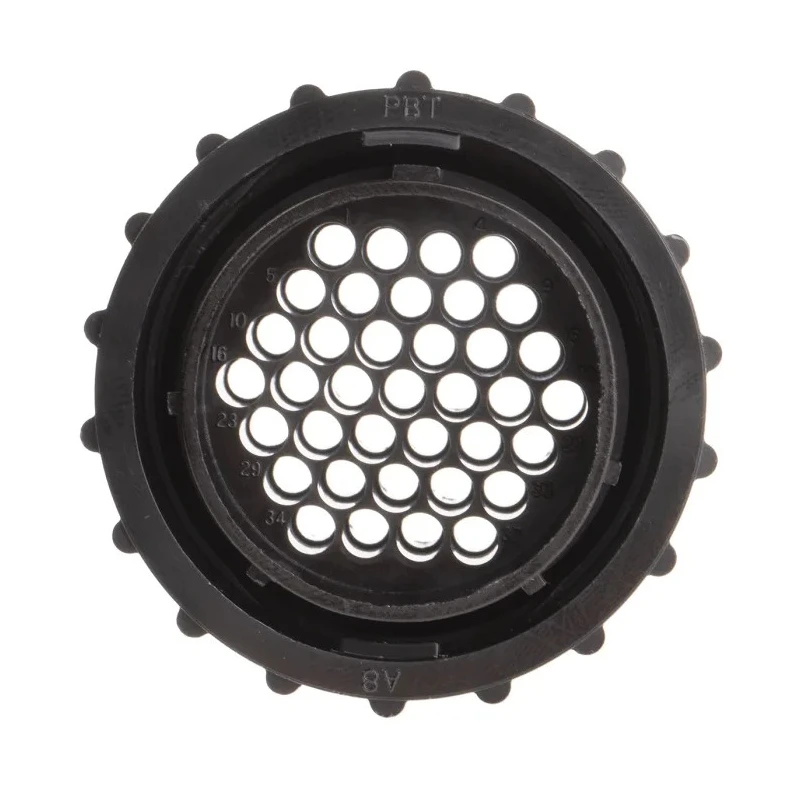

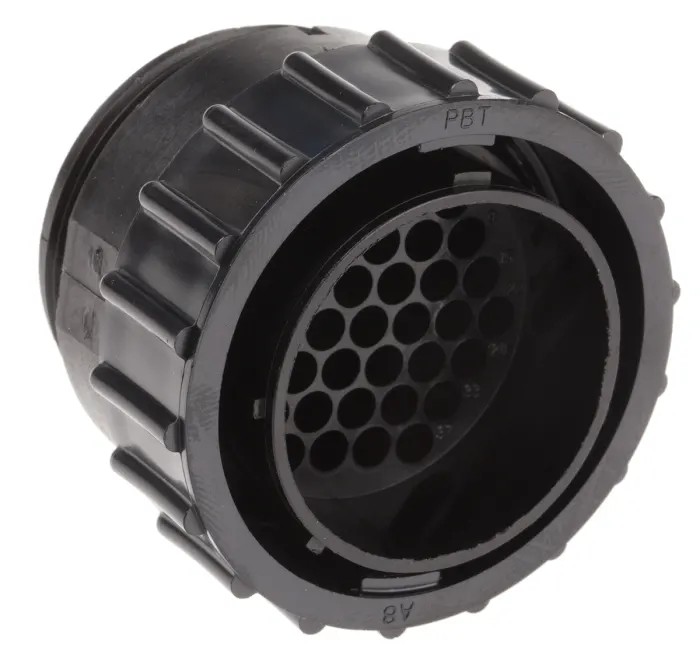

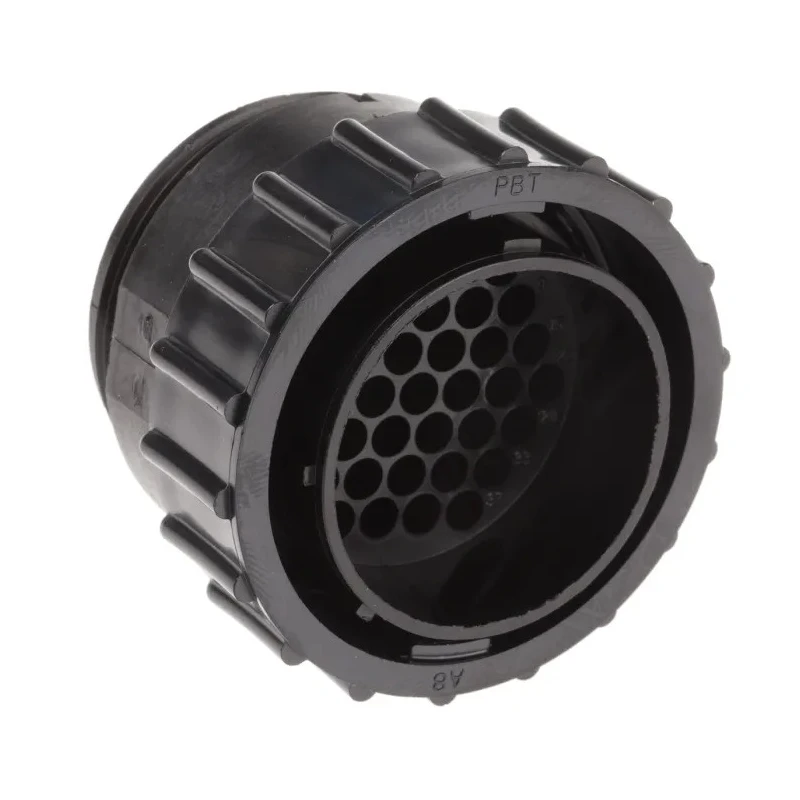

TE Connectivity Circular Connector 37 Contacts Cable Standard Plug Male CPC Series 206305-1

TE Connectivity 206305-1 Circular Connector is a high-quality industrial connector from the CPC series featuring 37 contacts, cable mount type, standard size shell, and a male plug configuration. Rated at 600V and constructed with a thermoplastic housing conforming to UL 94V-0 standards, this connector is built to withstand challenging environmental conditions and provide durable, reliable connections.

This connector supports a broad operating temperature range from -55°C to 105°C, making it suitable for diverse industrial, transportation, and automation applications. The threaded mating type with a knurled coupling ring ensures a positive lock, preventing accidental disengagement even under vibration and shock.

The series allows for quick crimp termination assembly and easy field repair by removing defective contacts, thus minimizing downtime. Its lightweight all-plastic design offers a cost-effective alternative to metal connectors without compromising ruggedness and reliability.

Typical applications for this connector include rail and transit vehicles, lighting and signage, HVAC systems, commercial building equipment, motor vehicles, agricultural machinery, industrial machinery, instrumentation, and automation systems.

Series 1 of the CPC range, to which this connector belongs, is optimized for signal and low-current applications supporting up to 13A per contact and compatible with size 16 MultiMate pin and socket contacts.

Operates at a voltage rating of 600V suitable for industrial environments. Constructed with thermoplastic housing rated UL 94V-0 for heat resistance and self-extinguishing properties. Features crimp termination for rapid assembly and reliable contact connection.

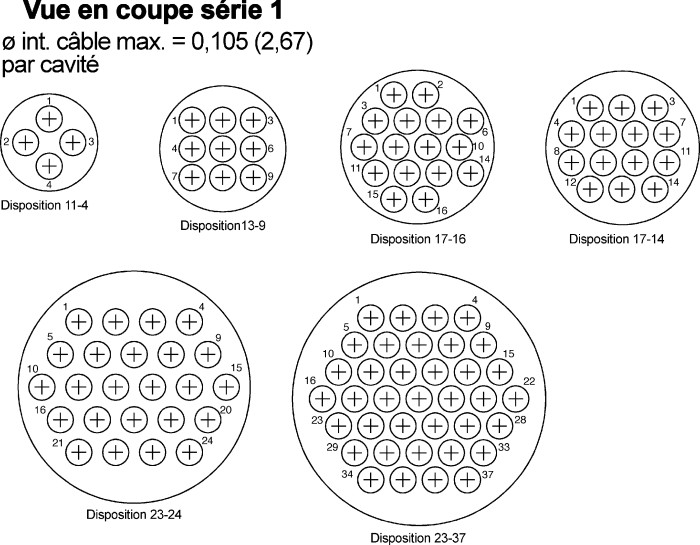

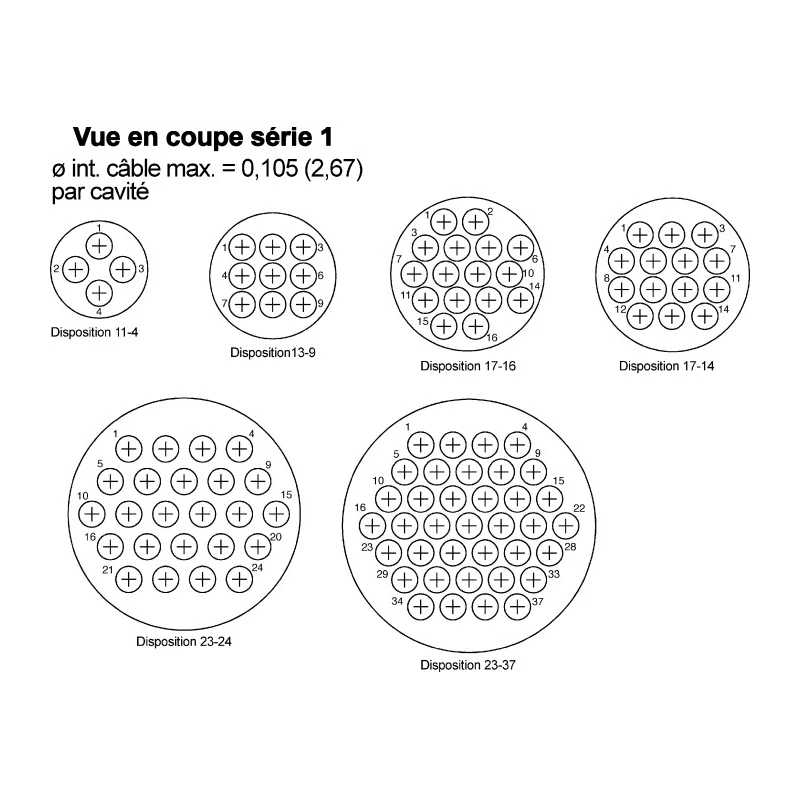

Designed with a threaded mating type and knurled coupling ring for secure and vibration-resistant connections. Supports operating temperatures from -55°C to 105°C for harsh environment applicability. Includes 37 contacts in a standard shell size 23 configuration for signal and low current multipin connections.

Meets CSA, RoHS, and UL standards for compliance and environmental safety. Offers lightweight, rugged design ideal for rail, transit, HVAC, industrial automation, and material handling applications.

Mexico is the country of origin. This product is new and conforms to international quality and safety standards. Discover more Industrial Circular Connectors at EnvMart for your electronics and electrical needs.
