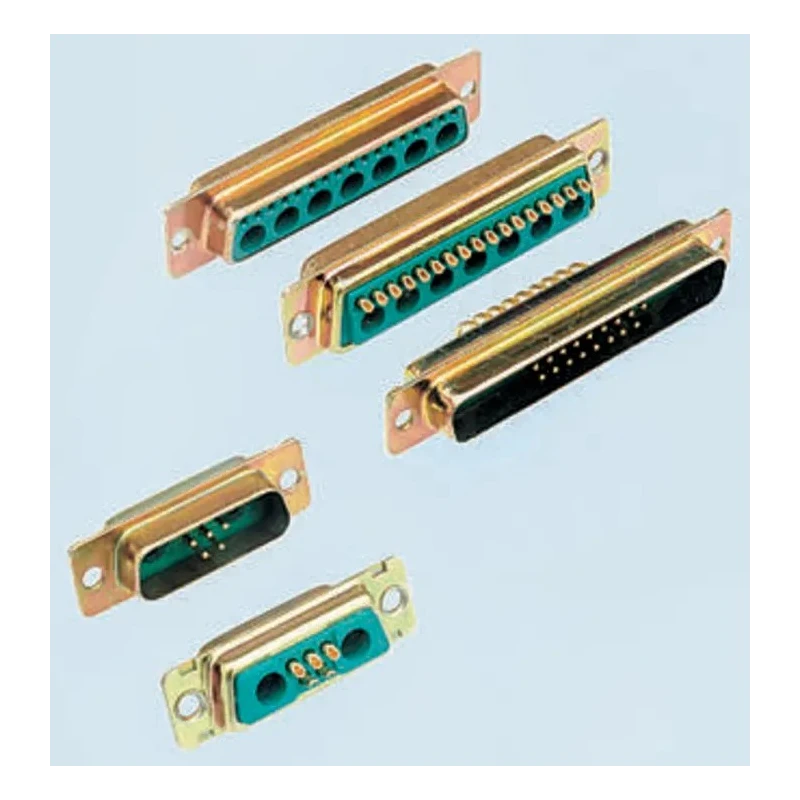

Amphenol Communications Solutions DMW 24 Way Straight Panel Mount D-Sub Connector Male DDM24W7PN

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions DMW 24 Way Straight Panel Mount D-Sub Connector Male DDM24W7PN

Name: Amphenol Communications Solutions DMW 24 Way Straight Panel Mount D-Sub Connector Male DDM24W7PN
Brand: Amphenol Communications Solutions
SKU: 148034
Price: 20.33 USD
Availability: InStock



Category D-Sub Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	India
Brand	Amphenol Communications Solutions
Orientation	Straight
Current	7.5A
Model	DDM24W7PN
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Phosphor Bronze
Series	DMW
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold over Nickel
Number of Contacts	24
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	A

Key Features

Features 24 contacts with a current rating of 7.5A for robust power handling.
Constructed with a steel housing providing durability and mechanical strength.
Phosphor bronze contacts plated with gold over nickel ensure excellent conductivity and corrosion resistance.
Operates efficiently within a temperature range from -55°C to 125°C.
Solder termination type with male connector gender offers secure and stable connections.
Suitable for panel mount applications with a straight connector orientation.
Series D mixed connector series supports combined signal and power connections.
Ideal for military, industrial, and computer interfacing uses requiring high reliability.

Product Description

Amphenol Communications Solutions DDM24W7PN 24 Way Straight Panel Mount D-Sub Connector Male delivers high-performance and dependable connectivity solutions for electronic and power applications. This connector features 24 contacts capable of carrying currents up to 7.5A, making it suitable for mixed signal and power connection requirements.

The connector’s steel housing provides robust mechanical protection and ensures durability in demanding environments. Its phosphor bronze contacts are plated with gold over nickel to optimize electrical conductivity and resist corrosion, thereby enhancing product longevity.

Designed for panel mount usage, the connector has a straight orientation and a solder termination, facilitating secure and stable mating. It operates reliably over an extensive temperature range from -55°C to 125°C, accommodating harsh industrial and military conditions.

The DMW series of mixed D-Sub connectors allow for combined signal and power contacts in a single connector shell, supporting advanced interfacing needs in electronic systems. This product is ideal for industrial, commercial, military, and computing applications, requiring dependable connector solutions with high contact density and power capabilities.

Features 24 contacts with a 7.5A current rating for power and signal. Steel housing enhances mechanical strength and durability. Contacts made of phosphor bronze with gold over nickel plating for conductivity and corrosion resistance.

Operating temperature range: -55°C to 125°C for versatile environmental usage. Solder termination and male connector gender ensure reliable connections. Panel mount type with straight orientation for easy installation. Part of the DMW series supporting mixed signal and power contacts.

Designed for military, industrial, and commercial electronics interfacing.

Choose Amphenol Communications Solutions connectors for proven quality and reliability in demanding electrical and electronic applications. Explore related D-Sub Connectors and power connectors at EnvMart for comprehensive solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a current rating of 7.5A, making it suitable for both power and signal connections.

It operates efficiently within a temperature range from -55°C to 125°C, accommodating various environmental conditions.

The housing is made of steel, while the contacts are constructed from phosphor bronze and plated with gold over nickel for enhanced conductivity and corrosion resistance.

This connector has 24 contacts, allowing for a compact and efficient connection solution.

It utilizes a solder termination type, ensuring secure and stable connections during installation.

Yes, it is designed specifically for panel mount applications with a straight connector orientation.

This model is part of the DMW series of mixed D-Sub connectors, which support combined signal and power connections.

The connector gender is male, which is suitable for various interfacing applications.

The D-Sub shell size for this model is A, which is a standard size for many applications.

It is ideal for military, industrial, and commercial electronics interfacing, requiring high reliability and performance.

The country of origin for this model is India.

Applications that require dependable connectivity solutions, such as military, industrial, and computer interfacing, can benefit from this connector's high reliability.
