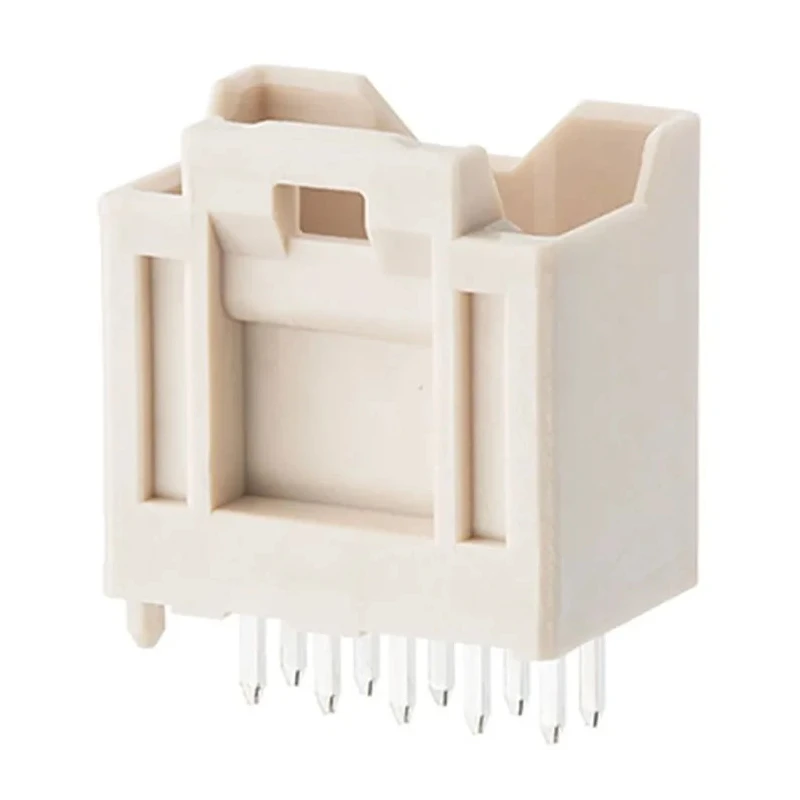

Molex iGrid Series Vertical Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 2 Row, Shrouded 5016451020

Molex 5016451020 iGrid Series Vertical Through Hole PCB Header is engineered for demanding electronic applications where reliable connectivity and compact form factor are critical. Utilizing a vertical through hole mounting scheme, this header is designed to facilitate secure wire-to-board connections in industrial, automotive, and commercial electronics.

Featuring 10 male contacts arranged in 2 rows with a 2 mm pitch, this shrouded header supports high-density PCB designs, making it ideal for compact circuit layouts. The polyamide housing ensures mechanical strength and electrical insulation, while gold-plated brass contacts guarantee consistent conductivity and enhanced corrosion resistance during prolonged use.

Vertical through hole mount for robust PCB anchoring. 10 contacts in a 2 row configuration provide versatile connection possibilities. 2 mm pitch enables easy integration into modern densely-populated PCBs. Rated at 2A and 250V, suitable for both power and signal circuits.

Brass contacts plated with gold for optimal durability and conductivity. Polyamide housing resists thermal and mechanical stress. Solder termination method; tail pin length of 3.2 mm facilitates reliable attachment. Operates reliably from -40°C to 105°C, suitable for harsh environments.

Approved to CSA LR19980 and UL E29179 standards, supporting compliance and safety.

This Molex iGrid header is tailored for wire-to-board connections in automation controls, industrial machinery, instrumentation panels, and electronic device assemblies. Its shrouded construction enhances mating alignment and provides protection against accidental contact and mechanical impact.

Applications include PCB connectivity in industrial automation, electronic instrumentation, robotics, and commercial electronics requiring high-density and robust connections. The compact design and technical features allow system integration engineers to maximize space efficiency while ensuring performance reliability.

Industrial, laboratory, commercial, and computing equipment manufacturers benefit from this header’s certified safety and connectivity characteristics. Designed for wire-to-board systems, it is optimized for both prototyping and production use.
